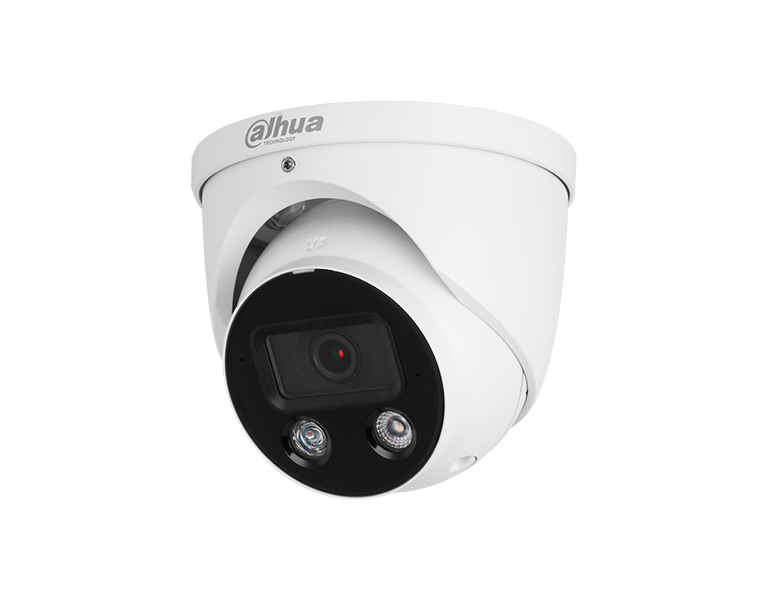

• 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image • Outputs max. 8 MP (3840 × 2160)@25/30 fps • H.265 codec, high compression rate, ultra-low bit rate • Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human) • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk • 12 VDC/PoE power supply • IP67 protection • Sound and light alarm (red and blue lights) • SMD 4.0 • One-tap arming/disarming through alarm input |
Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
Functions
Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
One-tap Disarming
Dahua One-tap Disarming function, which is convenient and easy for operation, is the switch for event linkage. Customers can close and recover event linkage through mobile App, which meets multi-scenarios needs.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 36 μήνες |
SPECIFICATIONS | |
Camera | |
Image Sensor | 1/2.8" CMOS |
Max. Resolution | 3840 (H) × 2160 (V) |
ROM | 128 MB |
RAM | 512 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | Up to 30 m (IR) Up to 30 m (warm light) |
Illuminator On/Off Control | Auto/ manual |
Illuminator Number | 1 (IR LED) 1 (warm light) |
Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Focal Length | 2.8 mm |
Mount Type | M12 |
Field of View | H: 106°; V: 55°; D: 125° |
Iris Type | Fixed |
Close Focus Distance | 2.0 m |
DORI Distance | Detect: 91.0 m Observe: 36.4 m Recognize: 18.2 m Identify: 9.1 m |
Intelligent | |
IVS (Perimeter Protection) | Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
SMD 4.0 | Less false alarm, longer detection distance |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+ Smart H.264+ |
AI Coding | AI H.265; AI H.264 |
Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream:1920 × 1080@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Stream Capability | 3 streams |
Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
BLC | Yes |
HLC | Yes |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32kbps–8192 kbps H.265:12kbps–8192 kbps |
Day/Night | Auto(ICR)/Color/B/W |
WDR | 120 dB |
Scene Self-adaptation | Yes |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto, manual |
Motion Detection | OFF/ON (4 areas) |
Region of Interest (RoI) | Yes (4 areas) |
Noise Reduction | 3D NR |
Mirror | Yes |
Smart Illumination | Yes |
Defog | Yes |
Privacy Masking | 8 areas |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Audio | |
Built-in MIC | Yes, built-in dual Mic |
Audio Compression | PCM, G.711a, G.711Mu, G.726, G.723 |
Built-in speaker | Yes, built-in speaker |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
Network | |
Network Port | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Interoperability | ONVIF (Profile S,Profile G,Profile T), CGI |
User/Host | 20 (Total bandwidth: 72 M) |
Storage | FTP, SFTP, Micro SD card (Support max. 256 G), NAS |
Browser | IE: IE8/9/11 Chrome Firefox |
Management Software | Smart PSS, DSS, DMSS |
Mobile Client | IOS, Android |
Certification | |
Certifications | CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14; |
Port | |
Audio Input | 1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Alarm Input | 1 channel in: 5mA 3V–5 VDC |
Alarm Output | 1 channel out: 300mA 12 VDC |
Power | |
Power Supply | 12 VDC/PoE (802.3af) |
Power Consumption | Basic: 5.2 W (12 VDC), 5.5 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 9.2W (DC12 V) 10.2 W (POE) |
Environment | |
Operating Conditions | –40 °C to +60 °C /Less than 95% RH |
Storage Conditions | –40 °C to +60 °C |
Protection Grade | IP67 |
Structure | |
Casing | Metal |
Dimensions | 110.9 mm × Φ122.0 mm |
Net Weight | 745 g |
Gross Weight | 915 g |
