• 1/2.8" 5Megapixel STARVIS™ CMOS • Max. 20 fps@5MP • Human detection • Tripwire, intrusion • H.265 encoding • Wi-Fi • IP66 • Two-way audio •Sound and light alarm • IR and white light, three night view modes |
System Overview

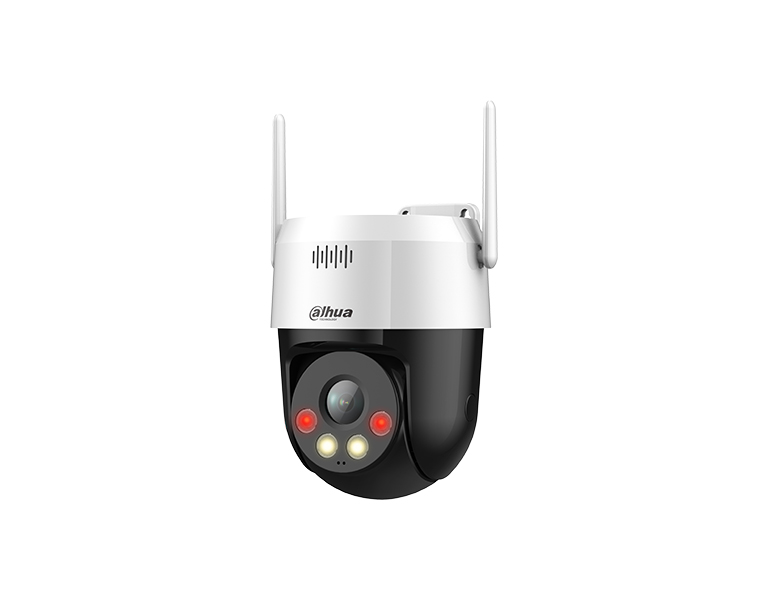

The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. It also records videos in full color, and uses Smart Dual Light to help produce vivid images, making it easy to obtain information on events, and reduce light pollution.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Two-way Talk
With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.
Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports the white light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in one voice, and supports customized voice importing.
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100mW e.i.r.p. Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T. Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017 Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους. |
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 36 μήνες |
Specifications | |
Camera | |
Image Sensor | 1/2.8" CMOS |
Pixel | 5 MP |
Max. Resolution | 2560 (H) × 1920 (V) |
ROM | 128 MB |
RAM | 128 MB |
Electronic Shutter Speed | 1/3 s–1/100,000 s |
Scanning System | Progressive |
Min. Illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (illuminator on) |
Illumination Distance | 30 m(IR) 30 m(white light) |
Illuminator On/Off Control | Manual, auto, off |
Illuminator Number | 2 (IR light) 2 (White light) |
Lens | |
Max. Aperture | F1.6 |
Focal Length | 4.0 mm |
Field of View | H: 80.4° V: 58.1° D: 104.8° |
Close Focus Distance | 0.3m |
Iris Control | Fixed |
DORI Distance | Detect:77.4 m Observe: 31.0 m Recognize: 15.5 m Identify: 7.74 m |
PTZ | |
Pan/Tilt Range | Pan: 0° to 345° Tilt: 0° to +80° |
Manual Control Speed | Pan: 0.1°–74°/s Tilt: 0.1°–36.4°/s |
Preset Speed | Pan: 62°/s Tilt: 36.3°/s |
Preset | 300 |
Power-off Memory | Yes |
Idle Motion | Preset |
Smart Event | |
IVS | Tripwire, intrusion |
Human Detection | Yes |
Active Deterrence | |
Light Warning | White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
Sound Warning | Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s |
Video | |
Video Compression | H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+ |
Streaming Capability | 2 streams |
Resolution | 5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280x960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
Video Frame Rate | Main stream: 5M(1–20 fps),4M/1080p/1.3M/720p (1–25/30 fps) Sub stream: D1/CIF (1–25/30 fps) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H264: 512–8192 kbps H265: 233–7680 kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
WDR | DWDR |
HLC | Yes |
White Balance | Auto, manual, tracking, indoor, outdoor, sodium lamp, street lamp, natural light |
Gain Control | Auto, manual |
Noise Reduction | 2D NR, 3D NR |
Motion Detection | Yes |
Image Rotation | 180° |
S/N Ratio | ≥55 dB |
Audio | |
Audio Compression | PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1 |
Network | |
Network Port | RJ-45 (10/100 Base-T) |
Wi-Fi | Yes |
Wi-Fi–Wireless Standard | 802.11n, IEEE802.11b, 802.11g |
Wi-Fi–Wireless Frequency Range | 2.4GHz |
Wi-Fi–Wireless Transmission Rate | 150Mbps |
Network Protocol | UDP,FTP,RTMP,IPv6,IPv4,IP Filter,DNS,RTCP,HTTP,NTP,SS L,DHCP,RTP,SMTP,HTTPS,TCP/IP,RTSP,DDNS,ARP |
Interoperability | CGI, SDK, ONVIF (Profile S&T), P2P |
Streaming Method | Unicast/Multicast |
User/Host | 20 |
Storage | Micro SD card (512 GB), FTP |
Browser | IE: IE 7 and later versions, Chrome, Firefox, Safari |
Management Software | DMSS |
Mobile Client | iOS, Android |
Certification | |
Certification | CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000- 3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
Port | |
Audio Input | 1 channel (built-in mic) |
Audio Output | 1 channel (built-in speaker) |
Two-way Audio | Yes |
Alarm Linkage | Capture, preset, recording, audio, sending email |
Alarm Event | Motion/Tampering detection, audio detection, network disconnection detection, IP conflict detection, memory card state detection, memory space detection |
Audio I/O | 1/1 |
Power | |
Power Supply | 12 VDC/1.5 A±10% |
Power Consumption | Basic: 3.5 W Max.: 11 W (illuminator + PT + speaker + heating glass) |
Environment | |
Operating Temperature | –30 °C to +55 °C |
Operating Humidity | ≤ 95% |
Protection | IP66, TVS 2000 V lightning proof; surge protection; voltage transient protection |
Structure | |
Product Dimensions | 140.5 mm × Φ111.0 mm |
Net Weight | 0.5 kg |
Gross Weight | 1 kg |
*The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model. |
