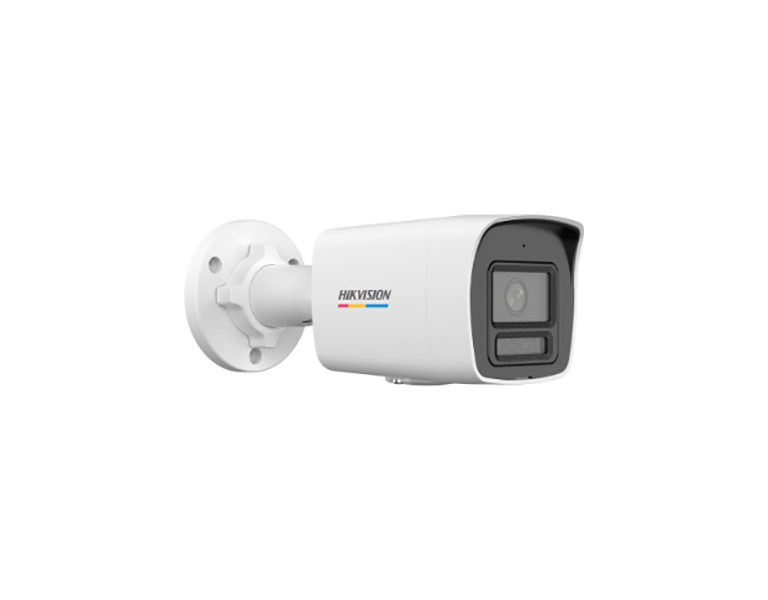

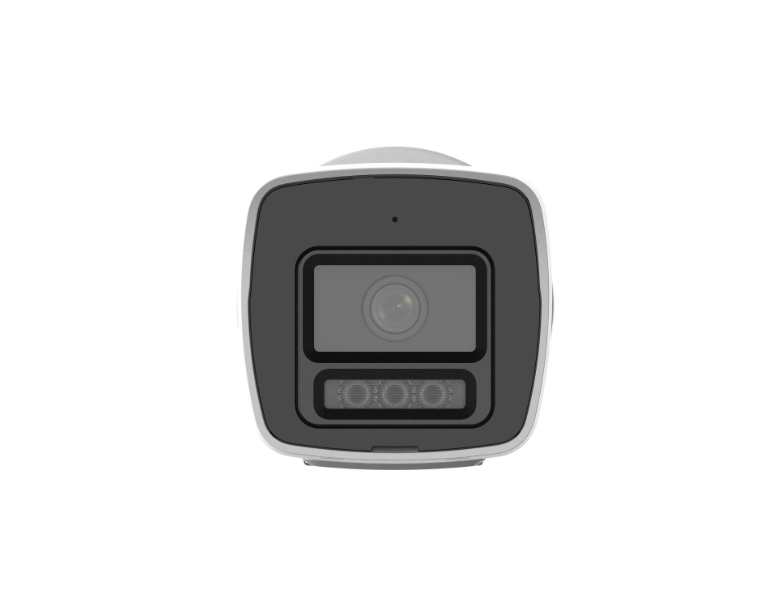

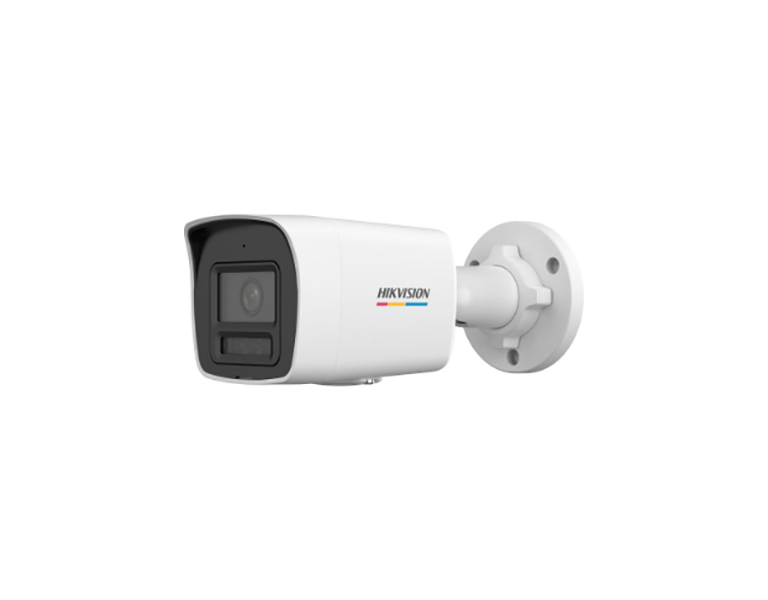

Hikvision DS-2CD1047G2H-LIU-2.8 4MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera (2.8mm)

Κωδικός προϊόντος:
DS-2CD1047G2H-LIU-2.8
Κατασκευαστής Hikvision
Διαθεσιμότητα:

Κόστος Μεταφορικών:
  • Περιγραφή
  • Χαρακτηριστικά
  • Λήψεις
  • Γνώμες πελατών
Hikvision DS-2CD1047G2H-LIU-2.8 4MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera (2.8mm)

ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!

• High quality imaging with 4 MP resolution
• Support Human and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Efficient H.265+ compression technology
• Support on-board storage up to 512 GB (SD card slot) (Optional)
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)



Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων: Επισκευή - Αντικατάσταση:
20 ημέρες 36 μήνες
Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with IR
Max. Resolution 2560 × 1440
Shutter Speed 1/3 s to 1/100,000 s
Angle Adjustment (Bracket) Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 355°
Day & Night IR cut filter
Lens
Lens Type & FOV 2.8 mm, horizontal FOV 115°, vertical FOV 60°, diagonal FOV 143°
Aperture F1.0
Focus Fixed
Lens Mount M12
DORI
DORI 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Network
Protocols IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone Yes, 1 built-in microphone
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, send email, trigger capture
General
Power 12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Front cover: metal, body: plastic, bracket: plastic
Package Dimension 150 mm × 150 mm × 141 mm
Weight Approx. 550 g
With Package Weight Approx. 800 g
Storage Conditions -30 °C to 60 °C
Humidity 95% or less (non-condensing)
Startup and Operating Conditions 30 °C to 60 °C
Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
Safety CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
