ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!

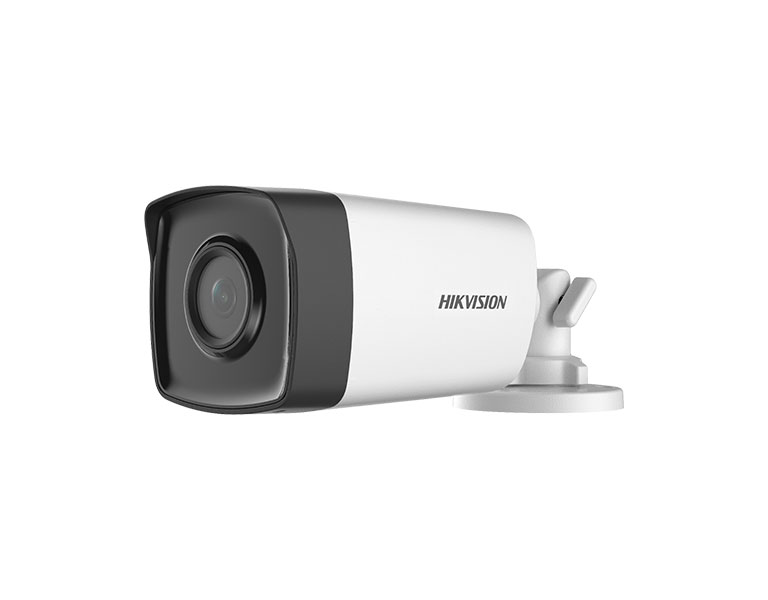

• High quality imaging with 2 MP, 1920 x 1080 resolution
• 3.6 mm fixed focal lens
• Up to 80 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 36 μήνες |
Specifications | |
Camera | |
Image Sensor | 2 MP CMOS |
Signal System | PAL/NTSC |
Frame Rate | TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
Resolution | 1920 (H) x 1080 (V) |
Min. illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
Lens | 3.6 mm fixed lens |
Horizontal Field of View | horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° |
Lens Mount | M12 |
Day & Night | ICR |
WDR (Wide Dynamic Range) | Digital WDR |
Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
Menu | |
Image Mode | STD/HIGH-SAT |
AGC | Yes |
Day/Night Mode | Auto/Color/BW (Black and White) |
White Balance | Auto/Manual |
AE (Auto Exposure) Mode | DWDR/BLC/HLC/Global |
Language | English |
Functions | Brightness, Sharpness, Smart IR |
2D DNR | Yes |
Interface | |
Video Output | Switchable TVI/AHD/CVI/CVBS |
General | |
Operating Conditions | -40 °C to 60 °C Humidity 90% or less (non-condensation) |
Power Supply | 12 VDC ± 25% |
Power Consumption | Max. 4.7 W |
Protection Level | IP67 |
Material | Front cover: Metal Main Body: Plastic |
IR Range | Up to 80 m |
Communication | HIKVISION-C |
Dimensions | 78.9 mm x 75.4 mm x 216.6 mm |
Weight | 320 g |
