ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!

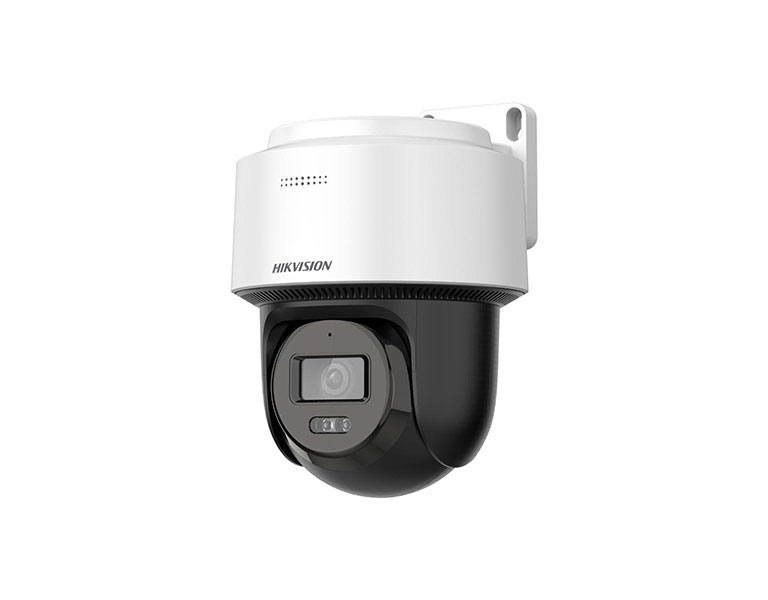

• High quality imaging with 4 MP resolution
• Support Human Detection and Auto-tracking Lite
• Smart Hybrid Light: advanced technology with long range
• Hik-Connect cloud service and APP for remote management and views of devices
• Built-in microphone and speaker for real-time audio security
• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
• Water and dust resistant (IP66)
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 36 μήνες |
Specification | |
Camera | |
Image Sensor | 1/3" progressive scan CMOS |
Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
Max. Resolution | 2560 × 1440 |
Lens | |
Focal Length | 2.8 mm |
FOV | horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° |
Aperture | F1.6 |
Illuminator | |
Supplement Light Type | IR, White Light |
Supplement Light Range | White light distance: up to 30 m, IR distance: up to 30 m |
IR Wavelength | 850 nm |
PTZ | |
Movement Range (Pan) | 0° to 345° |
Movement Range (Tilt) | 0° to 80° |
Pan Speed | Up to 25°/s |
Tilt Speed | Up to 20°/s |
Video | |
Main Stream | 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
Video Compression | H.265, H.264, MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline profile, Main profile, High profile |
H.265 Type | Main profile |
Audio | |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM//AAC-LC |
Environment Noise Filtering | Yes |
Audio Bit Rate | 16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM) |
Audio Sampling Rate | 8 kHz, 16 kHz |
Network | |
Protocols | IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour |
API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
Image | |
Image Settings | Saturation, brightness, contrast, and sharpness adjustable by client software or web browser |
Wide Dynamic Range (WDR) | Digital WDR |
Image Enhancement | BLC, HLC, 3D DNR |
Interface | |
Built-in Speaker | 1 built-in speaker |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Built-in Microphone | 1 built-in microphone |
On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
Event | |
Basic Event | Motion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception |
Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite |
General | |
General Function | Mirror, password protection, watermark |
Power | 12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W |
Operating Condition | -10 °C to 40 °C. Humidity 90% or less (non-condensing) |
Demist | Yes |
Dimension | Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm With package dimension: 224 mm × 164 mm × 230 mm |
Weight | Camera weight: 600 g With package weight: 900 g |
Material | Plastic |
Approval | |
Protection | IP66 (IEC 60529-2013) |
EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014) |
Safety | CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017) |
Environment | CE-RoHS (2011/65/EU), Reach (Regulation (EC) No 1907/2006) |
