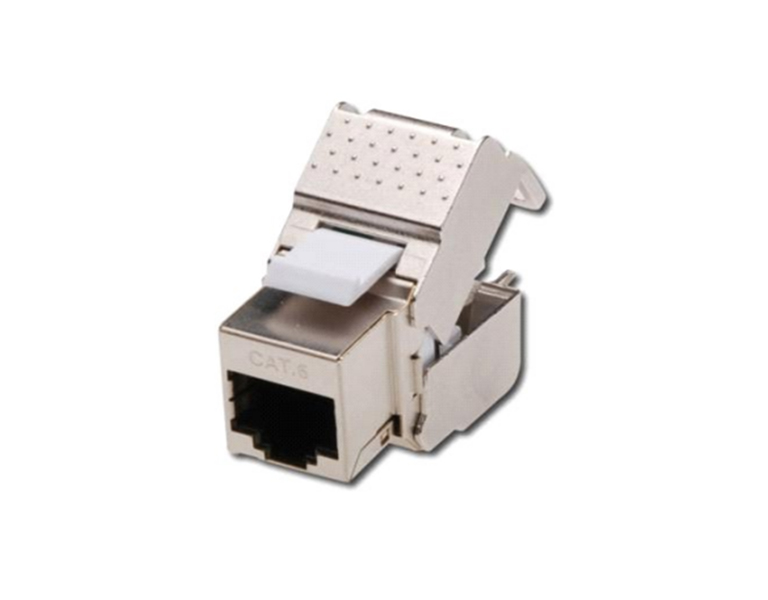

Digitus DN-93612-1 keystone Cat.6 STP Tool Free up to 500 MHz

The CAT 6, Class EA, Keystone Module is time efficient in installing, in combination with excellent measurements. The high quality ensures the usage with the most demanding application. The innovative housing design offers quick and safe wire terminations without any special tool.

Features:
• CAT 6, Class EA for up to 250 MHz
• Fully shielded
• Suitable for 1 Gbit Ethernet
• Quick and easy installation without any special tool
• Tool free connection via LSA, color coded according EIA/TIA 568 A&B
• RJ45 outlet for mounting in Patch Panel
• Opening dimensions according to Keystone standard 19.35x14.8 mm
• Compact design allows the installations of 24 pieces in a row of 483 mm (19") 1U Panels
• Cable entry: Rear side
• Housing: Nickel-plated, impact-resistant zinc housing
• Contacts: phosphor, bronze
• IDC contacts: phosphor, bronze
• Layer: 50 µm gold over 40 µm nickel
• Cable connection type: Tool free with cable hatch for strong/flexible conductions AWG 23-26
• Wiring standard: EIA/TIA 568 A/B
• Conformity: ISO/IEC 11801:2002 AM2:2009/09
