MikroTik CCR2004-16G-2S+PC Cloud Core Router, 16x Gigabit LAN, 2xSFP+, RouterOS L6

Κωδικός προϊόντος:
CCR2004-16G-2S+PC
Κατασκευαστής Mikrotik
Τιμή πώλησης: 520,00 €(Περιλαμβάνει 24% ΦΠΑ)
Τιμή χωρίς ΦΠΑ: 419,35 €
Διαθεσιμότητα:

Κόστος Μεταφορικών:
  • Περιγραφή
  • Χαρακτηριστικά
  • Λήψεις
  • Γνώμες πελατών

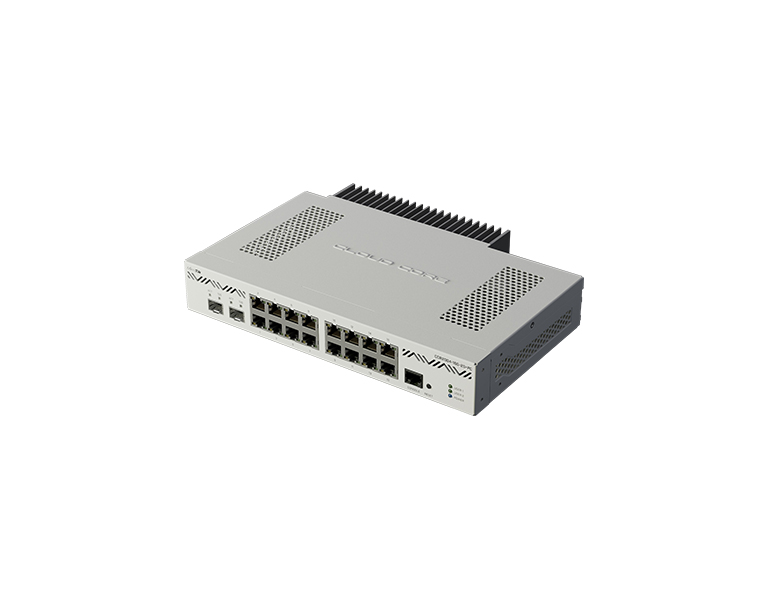

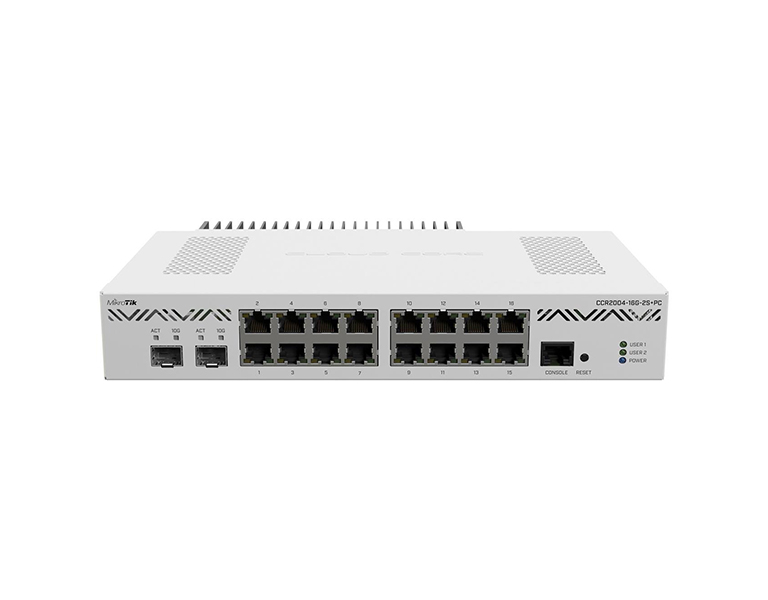

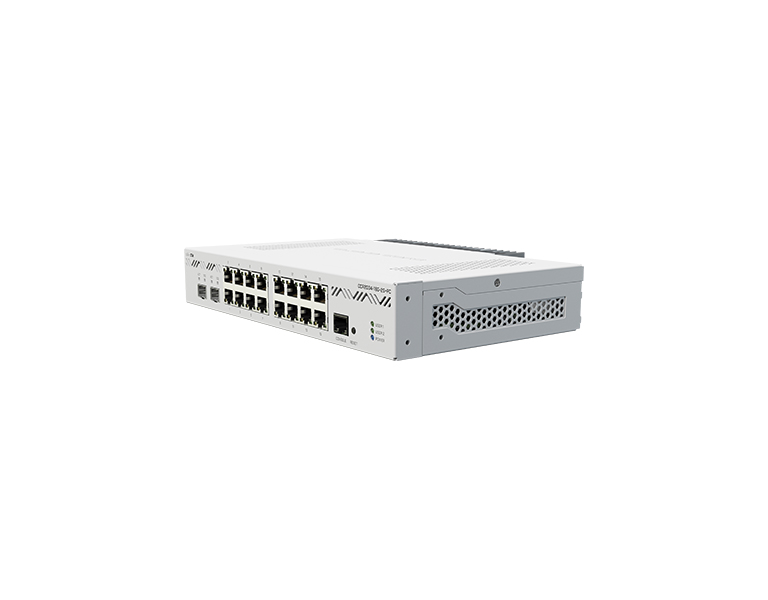

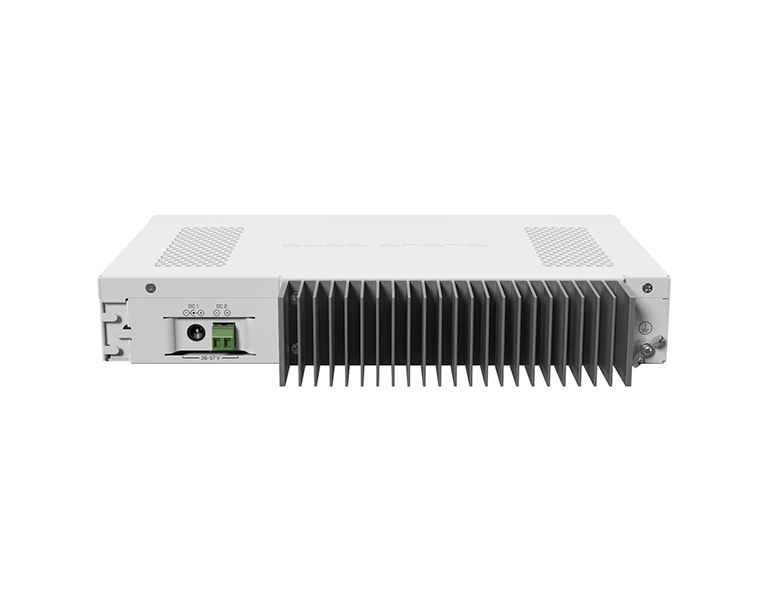

MikroTik CCR2004-16G-2S+PC Cloud Core Router, 16x Gigabit LAN, 2xSFP+, RouterOS L6




Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!
The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage. This router supports a wide input voltage range, including 48v DC power - perfect for all your telecom setups! So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If you look at the performance, you can see that it is trading blows with MikroTik's CCR1009.
This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general. One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων: Επισκευή - Αντικατάσταση:
20 ημέρες 12 μήνες
Specifications
Product code CCR2004-16G-2S+PC
CPU Architecture ARM 64bit
CPU AL32400 1.2 GHz
CPU core count 4
Size of RAM 4 GB
RAM type DDR4
Storage 128 MB, NAND
Number of 1G Ethernet ports 16
Number of 10G SFP+ ports 2
Operating system RouterOS v7,
License level 6
Switch chip model 88E6191X
Number of Gbit ports in switch 8
Dimensions 272 x 195 x 44 mm
Operating temperature -20°C to +60°C
Powering
Number of AC inputs 2
Supported input voltage 36-57 V (DC jack) 36-57 (2-pin terminal)
Power adapter nominal voltage 48 V
Power adapter nominal current 0.9 A
Max power consumption (without attachments) 30 W
Max power consumption 36 W
Certification & Approvals
Certification CE, FCC, IC
Package Contains
Included Parts

• 48 V 0.95 A power adapter
• Rackmount bracket
• Fastening set
