MikroTik RB5009UG+S+IN 7xGig, 1x2.5Gig, 1xSFP+, RouterOS L5

Κωδικός προϊόντος:
RB5009UG+S+IN
Κατασκευαστής Mikrotik
Τιμή πώλησης: 236,00 €(Περιλαμβάνει 24% ΦΠΑ)
Τιμή χωρίς ΦΠΑ: 190,32 €
Διαθεσιμότητα:

Κόστος Μεταφορικών:
  • Περιγραφή
  • Χαρακτηριστικά
  • Λήψεις
  • Γνώμες πελατών

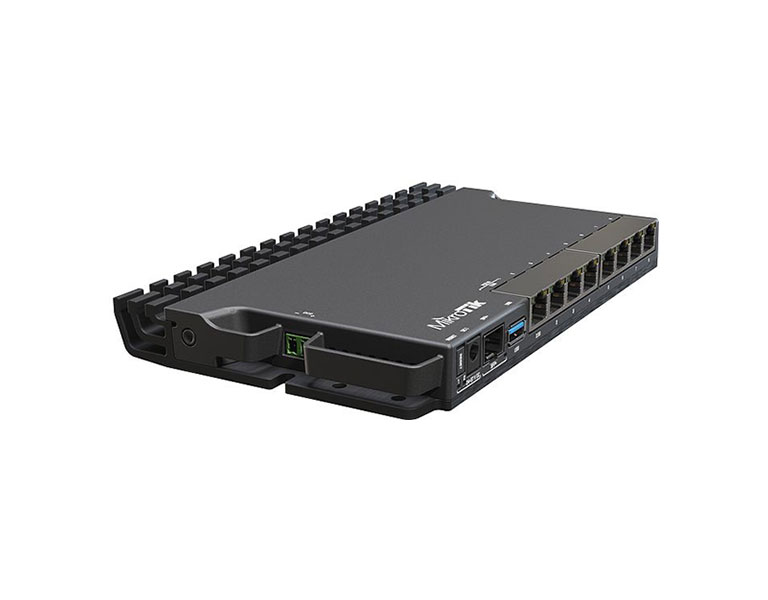

MikroTik RB5009UG+S+IN 7xGig, 1x2.5Gig, 1xSFP+, RouterOS L5



The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to MikroTik's other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount four of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων: Επισκευή - Αντικατάσταση:
20 ημέρες 12 μήνες
Specifications
Product code RB5009UG+S+IN
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
RouterOS license 5
Operating System RouterOS (v7 only)
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C
Powering
Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 20 W
Max power consumption without attachments 14 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V
Ethernet
10/100/1000 Ethernet ports 7
Number of 2.5G Ethernet ports 1
Fiber
SFP+ ports 1
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1
Other
CPU temperature monitor Yes
Certification & Approvals
Certification CE, EAC, ROHS
Package Contains

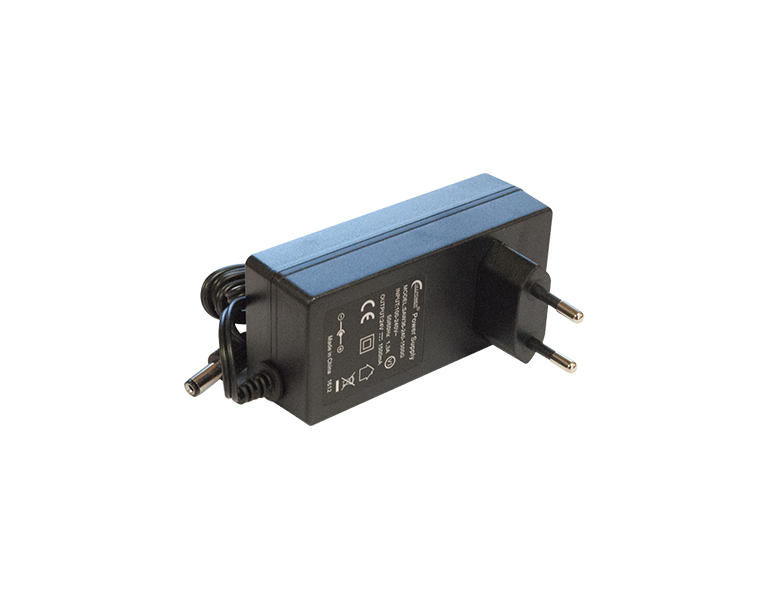

Included parts  • 24V 1.5A power adapter

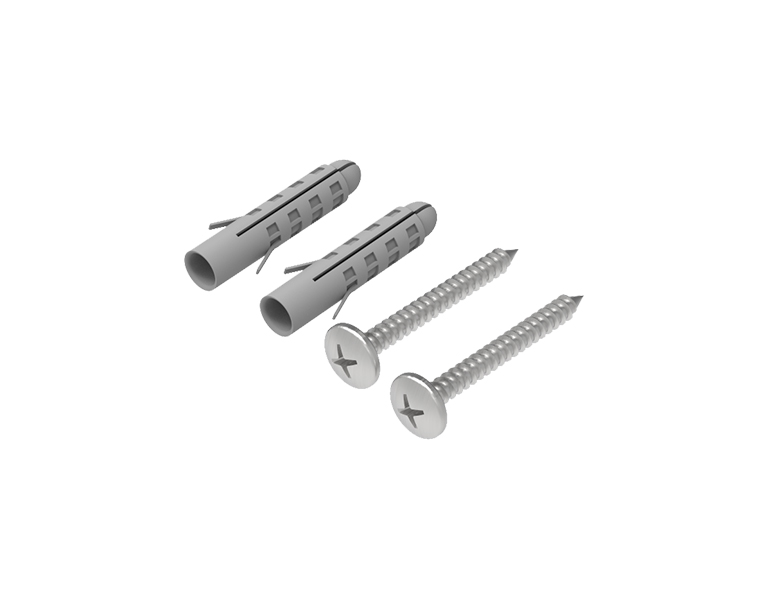

• K-55 screw kit
Δεν υπάρχουν αξιολογήσεις για το προϊόν ακόμη.
