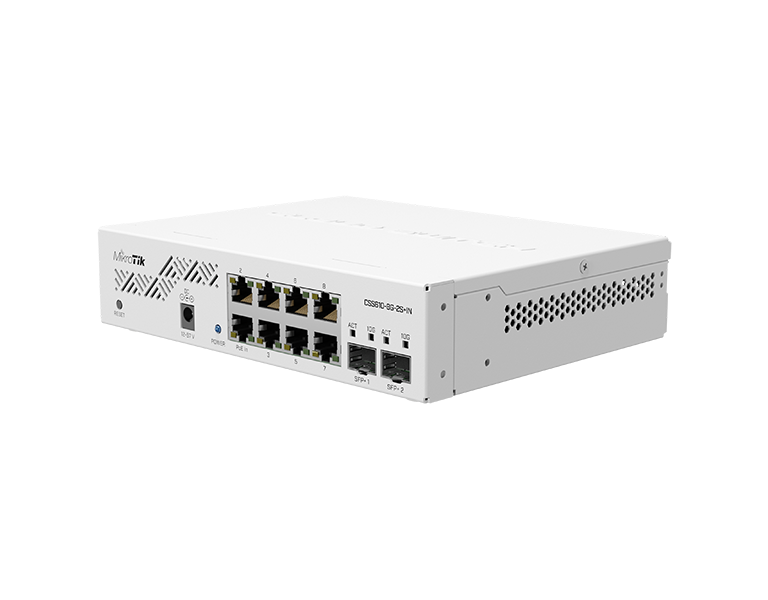

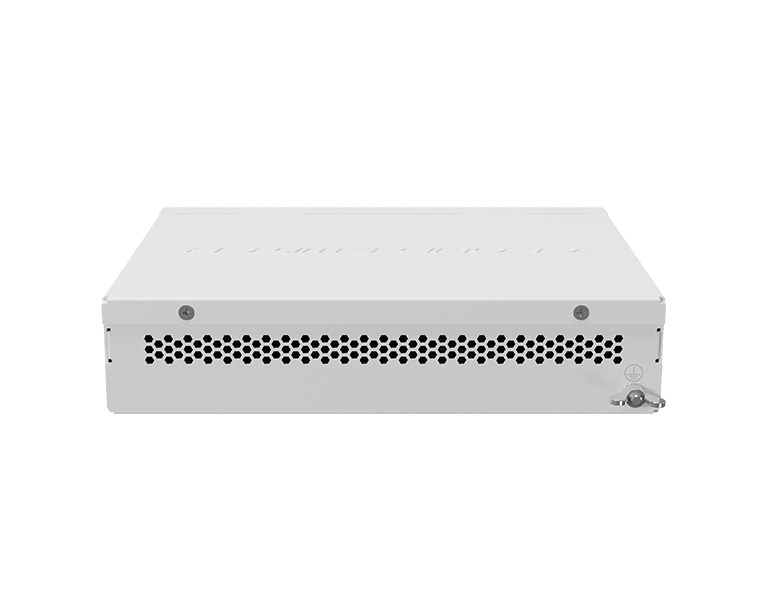

Cloud Smart Switch 610-8G-2S+IN is the answer to the everlasting demand for more power in a small and simple package. It comes with the lightweight SwOS which is easy to configure from your web browser. It gives you all the basic functionality for a managed switch, and more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 12 μήνες |
Specifications | |
Product code | CSS610-8G-2S+IN |
Dimensions | 200 x 167 x 46 mm |
Operating System | SwitchOS |
Storage size | 64 KB |
Storage type | FLASH |
Tested ambient temperature | -20°C to 60°C |
Powering | |
PoE in | Passive PoE |
PoE in input Voltage | 12-57 V |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Max power consumption | 11 W |
Max power consumption without attachments | 5 W |
FAN count | Passive |
Ethernet | |
10/100/1000 Ethernet ports | 8 |
Fiber | |
SFP+ ports | 2 |
Certification & Approvals | |
Certification | CE, EAC, ROHS |
Datasheet
Quick Guide
User Manual
SFP compatibility list
Declaration of Conformity
RouterOS software manual
