• Eight 10/100/1000Mbps RJ45 ports • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable • Supports PoE power up to 64W for all PoE ports • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery • Simple network set-up on top of plug-and-play connectivity • Web-based user interface and Easy Smart Configuration Utility simplify configuration • Fanless design lowers energy consumption and eliminates operating noise |

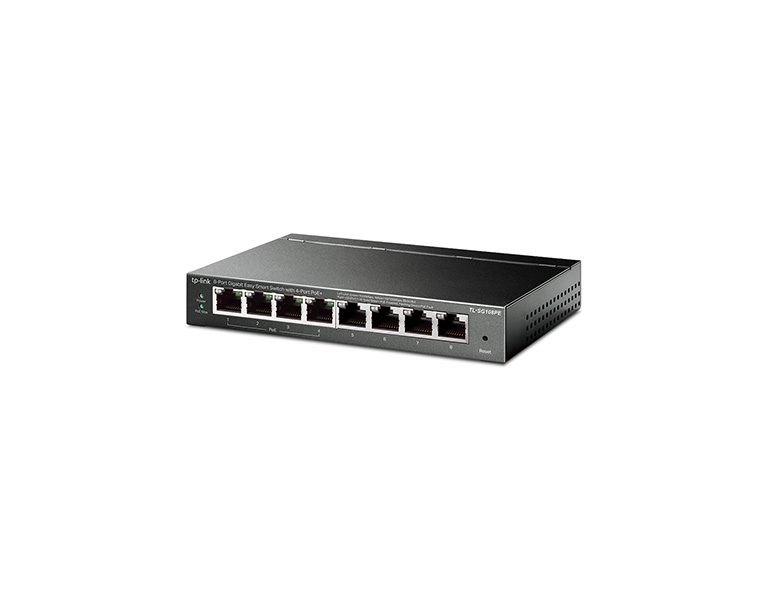

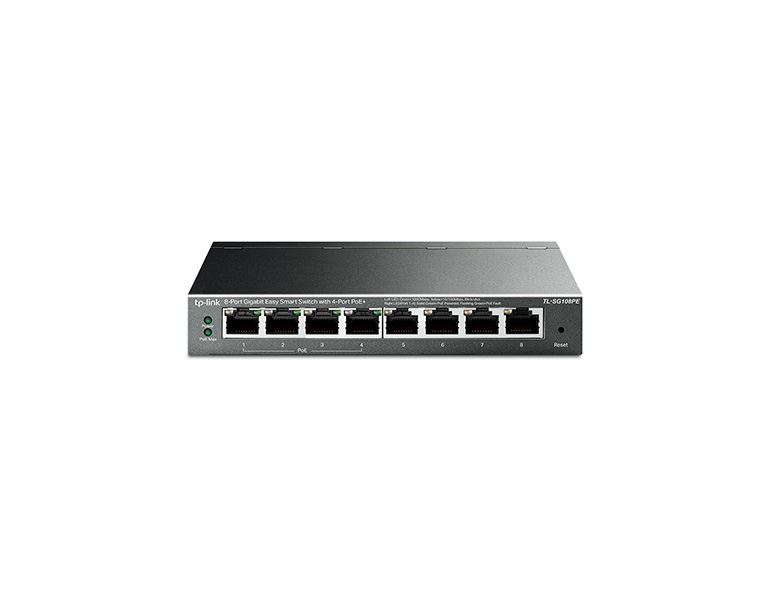

Professional 8-Port Gigabit Easy Smart Switch with 4-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance.
Multiple Application Scenarios
Surveillance Works with IP Cameras
Conference Call Works with IP Phones
Wi-Fi Coverage Works with Omada EAPs
Wired Connections Works with PCs and Printers
Dedicated 4 PoE+ Ports (64 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Easy to Use
1) Plug In
2) Connect Devices
3) Enjoy
Value-Added Features Bring Unexpected Experiences
QoS for a Lag-Free Experience Ensures smooth traffic for latency sensitive applications, such as voice and video.
IGMP Snooping for Multicast Optimization Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
VLAN for Security Helps to create network with higher security and better overall performance by dividing network into smaller groups.
Making Management Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Multiple Features Guarantee Stable Operation
System Self-Healing with PoE Auto Recovery The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management to Prevent Power Overload Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 64 W. This protects the device from power overload operation.
Great Compatibility with PD Detection Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG108PE are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108PE delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 60 μήνες |
HARDWARE FEATURES | |
Interface | 8 10/100/1000Mbps RJ45 Ports |
PoE Standard | 802.3af |
PoE Ports | Port 1~Port 4, up to 30 W per port |
PoE Power Budget | 64 W |
External Power Supply | External Power Adapter (output: 53.5 VDC/1.31 A) |
Max Power Consumption | 4.36 W (220 V/50 Hz. no PD connected) 76.35 W (220 V/50 Hz. with 64 W PD connected) |
Max Heat Dissipation | 14.87 BTU/h (no PD connected) 260.35 BTU/h (with 64 W PD connected) |
Fan Quantity | Fanless |
LED | Power, PoE Max, Speed/Link/Act, PoE Status (Port 1-Port 4) |
Dimensions(WxDxH) | 158 x 101 x 25 mm |
PERFORMANCE | |
Switching Capacity | 16Gbps |
Packet Forwarding Rate | 11.9Mpps |
MAC Address Table | 4K |
Packet Buffer Memory | 1.5Mb |
Jumbo Frame | 16KB |
OTHERS | |
Certification | CE, FCC |
Package Contents | TL-SG108PE Power Adapter Installation Guide Rubber Feet |
System Requirements | Microsoft® Windows® for Easy smart configuration utility |
Environment | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10% ~ 90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
