• (8) Gigabit RJ45 Ports • (2) SFP Ports • Non-Blocking Throughput: 10 Gbps • Switching Capacity: 20 Gbps • Forwarding Rate: 14.88 Mpps • Supports 24V Passive PoE Output on All RJ45 Ports • Powered by External AC/DC Adapter • DC Jack Supports Battery Backup with EdgePower (sold separately) • Wall- or Rack-Mountable* *Use the optional ER-RMKIT for rack-mounting. |
Optimized for WISP Deployments
Ubiquiti Networks introduces the EdgeSwitch® 10X and EdgeSwitch 10XP, the most affordable managed switches with SFP ports. For the EdgeSwitch 10X, model ES‑10X, eight Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and 24V PoE passthrough on port 8. Two SFP ports offer fiber connectivity. For the EdgeSwitch 10XP, model ES‑10XP, eight Gigabit RJ45 ports offer copper connectivity with 24V PoE output, while two SFP ports offer fiber connectivity.
Switching Performance
Delivering top price/performance value, the EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, as well as an extensive suite of advanced Layer 2 switching features and protocols.
For its total, non-blocking throughput, the EdgeSwitch supports up to 10 Gbps.
Fiber Connectivity
The EdgeSwitch includes two SFP ports, providing up to 1 Gbps uplinks.
PoE Flexibility
To simplify your infrastructure, the EdgeSwitch 10XP offers configurable 24V passive PoE on all RJ45 ports, while the EdgeSwitch 10X offers configurable 24V PoE passthrough on port 8.
Easy Management
The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti® Network Management System (UNMS™), which is a comprehensive management controller featuring an easy-to-use UI. You can use a single control plane to manage registered EdgeMAX® devices across multiple networks and sites.
Comprehensive User Interface
Sporting an updated design for an improved user experience, the EdgeSwitch Configuration Interface allows you to configure and monitor switch features in a graphical user interface. It offers intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status.
Advanced Features
The EdgeSwitch provides a variety of advanced features, including:
• Port Monitoring
• Virtual Local Area Network (VLAN) Configuration
• Spanning Tree Protocol (STP, MSTP, and RSTP)
• Device Discovery Tool
• Jumbo Frame Support
• DHCP Snooping
• Port Isolation
• Ping Watchdog
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 24 μήνες |
Specifications | |
Dimensions | 207 x 31.1 x 90 mm |
Weight | 500 g |
Total Non-Blocking Throughput | 10 Gbps |
Switching Capacity | 20 Gbps |
Forwarding Rate | 14.88 Mpps |
Max. Power Consumption (Excluding PoE Output) |
8W |

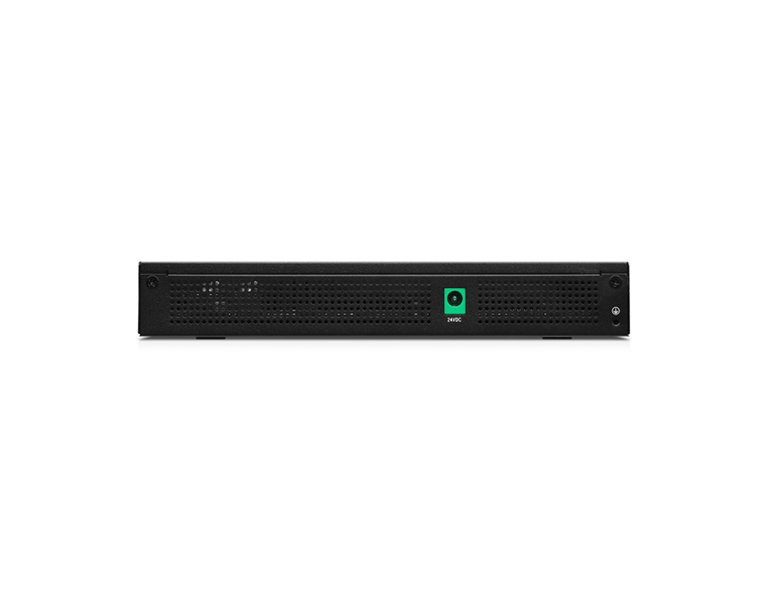

Power Method | 24VDC, 2.5A |
Supported Voltage Range | 9 - 30VDC, 5A |

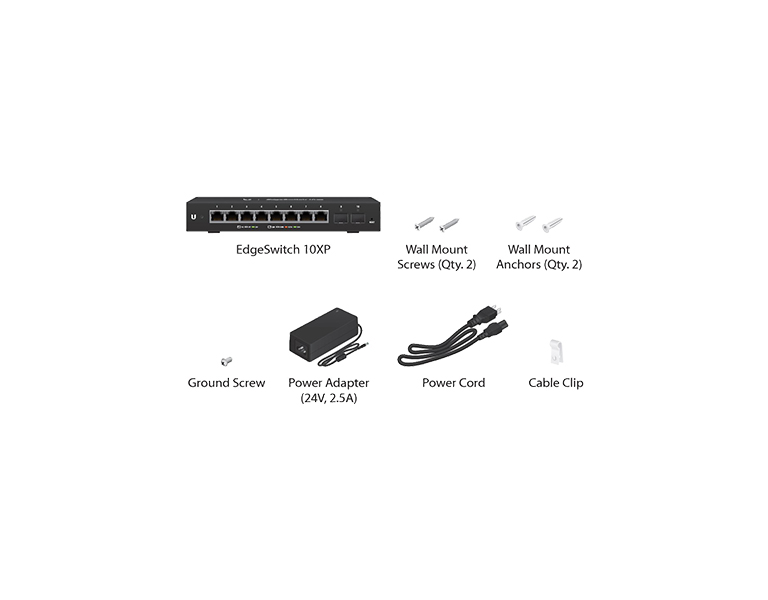

Power Supply | 24VDC, 2.5A Power Adapter (Included) |
LEDs Per Port System RJ45 Data Ports SFP Data Ports |
Status PoE, Speed/Link/Activity Link/Activity |

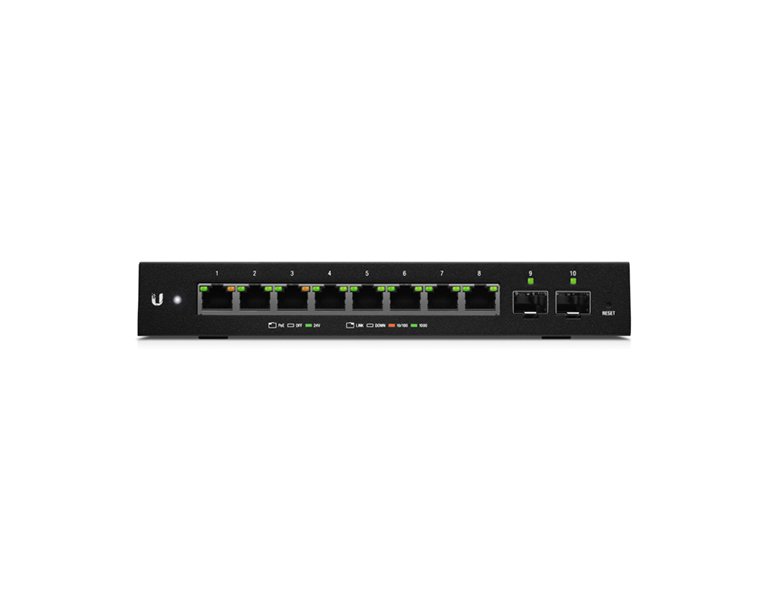

Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports |
Management Interface | Ethernet In-Band |
Certifications | CE, FCC, IC |

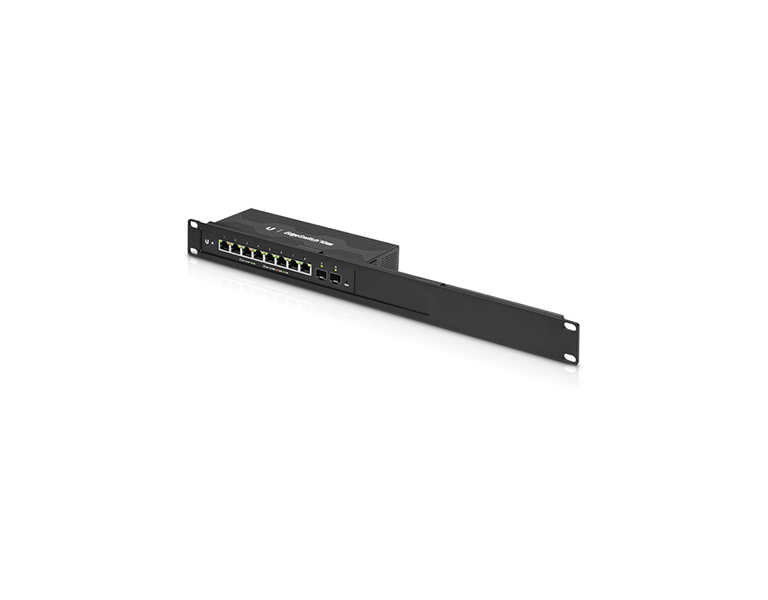

Rackmount | Yes *Use the optional ER-RMKIT for rackmounting. |
ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
Operating Temperature | -10 to 50° C (14 to 122° F) |
Operating Humidity | 5 to 95% Noncondensing |
Shock and Vibration | ETSI300-019-1.4 Standard |
PoE | |
PoE Interface | (8) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
Max. Passive PoE Wattage per Port | 15W |
24V Passive PoE Voltage Range | 24V |
