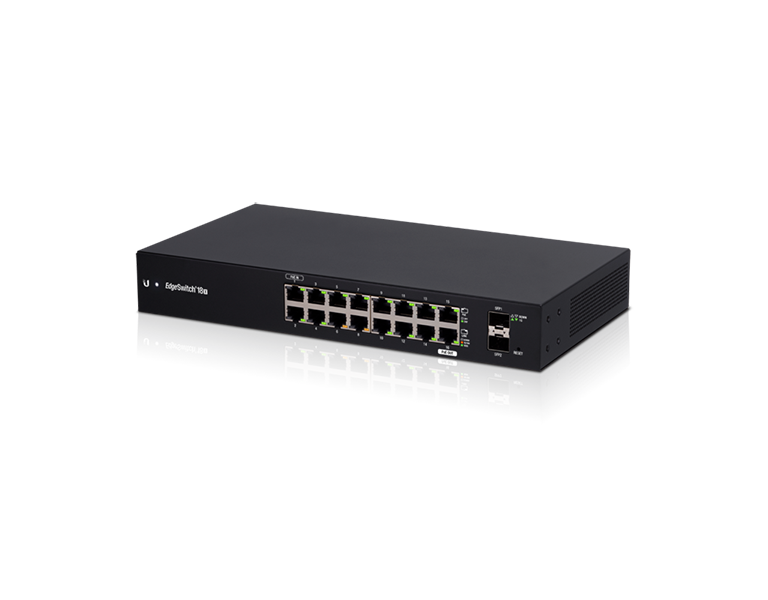

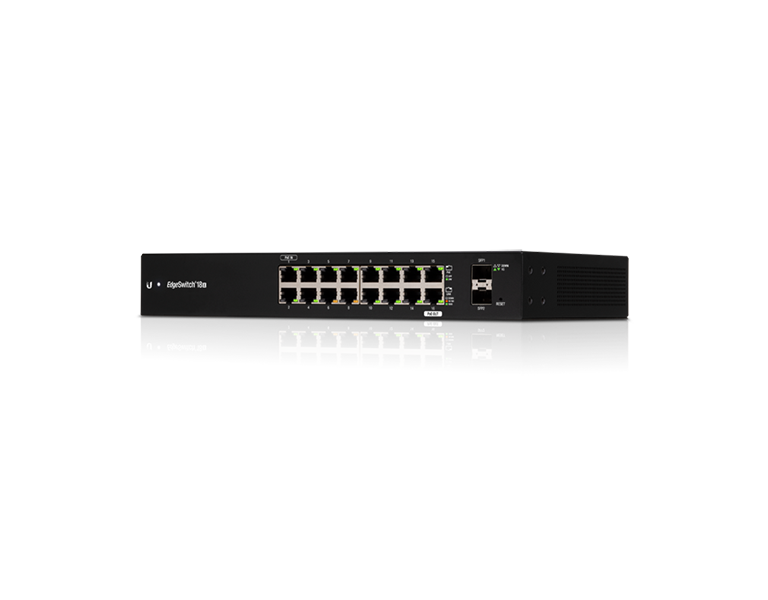

Ubiquiti ES-18X EdgeSwitch 18X, 16-Port Gigabit Switch with PoE Passthrough
Κωδικός προϊόντος:
ES-18X
Κατασκευαστής Ubiquiti
Τιμή πώλησης:
220,00 €(Περιλαμβάνει 24% ΦΠΑ)
Τιμή χωρίς ΦΠΑ: 177,42 €
Διαθεσιμότητα:
Κόστος Μεταφορικών:
- Περιγραφή
- Χαρακτηριστικά
- Λήψεις
- Γνώμες πελατών
Ubiquiti ES-18X EdgeSwitch 18X, 16-Port Gigabit Switch with PoE Passthrough
| • (16) Gigabit RJ45 ports • (2) SFP ports • Supports PoE passthrough on port 16 (software-selectable) • Powered by 24V passive PoE or external 24V AC/DC adapter • Wall or rack-mountable (bracket included) |
Overview
Ideal for larger-scale WISP applications, the EdgeSwitch® 18X is an affordable high-performance switch with SFP ports and a fanless design. Sixteen Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 16. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control. Management is also available through the Ubiquiti® Network Management System (UNMS™).
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
| Specifications | |
| Dimensions | 299.8 x 160 x 43.7 mm |
| Weight | Without Mount: 1.15 kg With Mount: 1.43 kg |
| Enclosure Material | Metal |
| Mount Material | Metal |
| Total Non-Blocking Throughput | 18 Gbps |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| Max. Power Consumption | 14W (Excludes PoE Output) |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 8 kV |
| Power Method | External AC/DC Adapter 24V Passive PoE |
| Supported Voltage Range | 9 - 30VDC |
| Power Supply | 24VDC, 1.0A Power Adapter (Included) 24V Passive PoE |
| Networking Interfaces | (16) 10/100/1000 Mbps Ethernet RJ45 Ports (2) 1 Gbps SFP Ports |
| PoE Interfaces | (1) 24V Passive PoE Port (Pins 4, 5+; 7, 8-) |
| Management Interface | Ethernet In-Band |
| Passive PoE Max Wattage per Port | 15W |
| Passive PoE Voltage Range | 24V |
| Operating Temperature | -10 to 50° C |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs System Ethernet SFP |
(1) White/Blue Green: 1G, Amber: 10/100 Mbps Green: 1G |
| Mode | Layer 2 Ethernet Switch |
| VLAN | 4K VLANs |
| QoS | (16) Priority Queues per User Port and Traffic Classification |
| Jumbo Frame | 10 KB |
| PoE | Enable/Disable Passive PoE |
| Other | TFTP Recovery |
| Ubiquiti Specific Features | Ubiquiti Discovery |
| Minimum Software Requirements | Web Browser (Chrome Recommended) |
