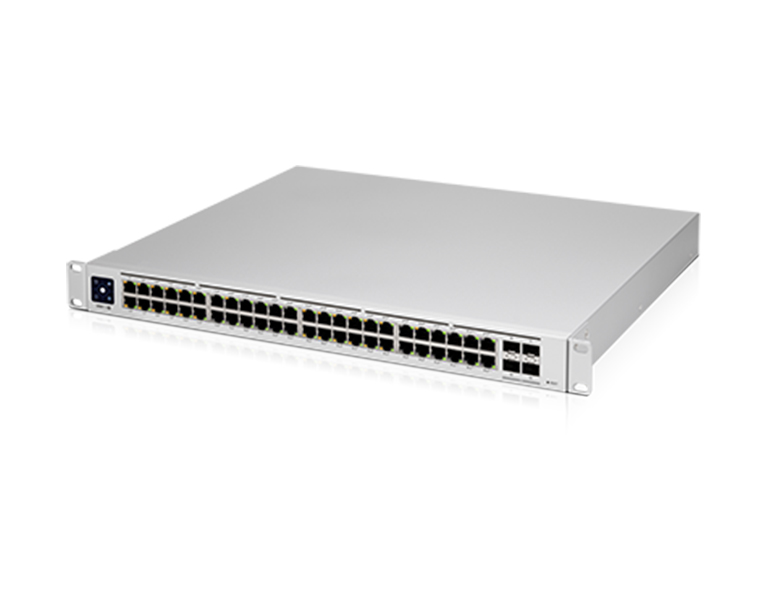

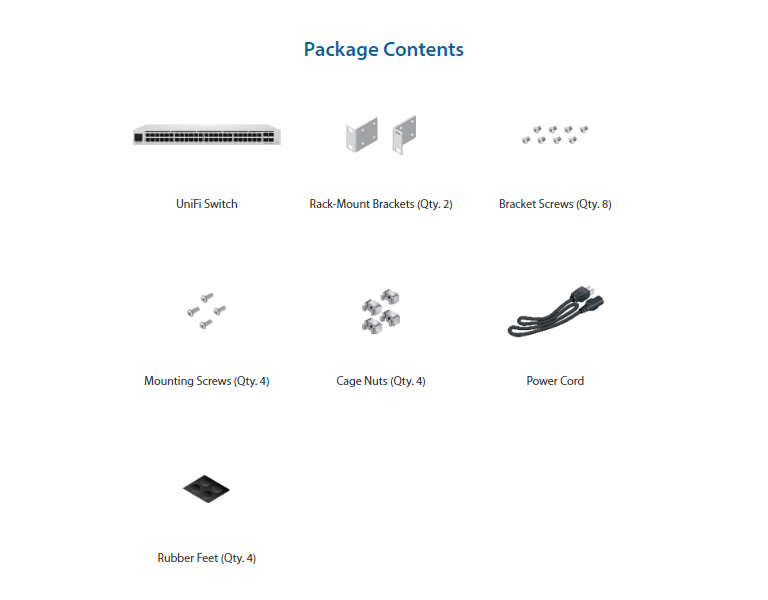

• (40) Gigabit RJ45 ports with 802.3af/at • (8) Gigabit RJ45 ports with 802.3bt • (4) 1/10G SFP+ ports • 1U Rackmountable (hardware included) |
Overview
Expand and power your network with the UniFi PoE Switch, part of the Ubiquiti UniFi Enterprise System.
Layer 3 Features
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities*, such as inter‑VLAN routing, static routing, and DHCP server functionality.
* Available in a future software release.
Near-Silent
Cooling The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.
Fiber Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.
802.3bt PoE++
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high‑power PoE devices. Remaining ports offer 802.3af/at PoE.
Redundant Power Option

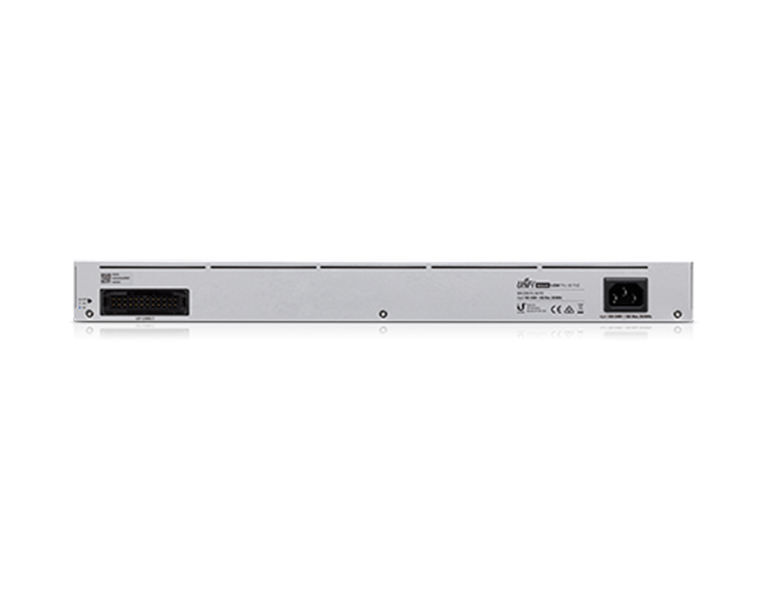

The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
Scalable UniFi Network Controller
Management Capabilities
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.
Deep Packet Inspection
Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.
Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface
Switch Port Status
You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting
Software Features
The UniFi Network Controller software offers the following features:
• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 24 μήνες |
Specifications | |
Dimensions | 442.4 x 399.6 x 43.7 mm |
Weight With Brackets |
6.25 kg 6.34 kg |
Interfaces Networking Management |
(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
Total Non-Blocking Throughput |
88 Gbps |
Switching Capacity | 176 Gbps |
Forwarding Rate | 130.944 Mpps |
Power Method Universal Input USP RPS DC Input |
100-240VAC, 50/60 Hz 52VDC, 11.54A; 11.5VDC, 5.22A |
Power Supply | AC/DC, Internal, 660W |
Voltage Range | 100 to 240VAC |
Max Power Consumption (Excluding PoE Output) |
60W |
LEDs System RJ45 Data Ports SFP+ Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
Shock and Vibration | ETSI300-019-1.4 Standard |
Operating Temperature | -5 to 40° C |
Operating Humidity | 10 - 90% Noncondensing |
Certifications | CE, FCC, IC |
PoE | |
Total Available PoE | 600W |
PoE Interfaces Ports 1-40 Ports 41-48 802.3af/at 802.3bt |
PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3af/at/bt (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
Max. PoE Wattage per Port by PSE 802.3at 802.3bt |
32W 64W |
Voltage Range 802.3af Mode 802.3at/bt Mode |
44-57V 50-57V |
