• (5) Gigabit RJ45 ports
• Passive PoE passthrough option*
• Power via 24V passive PoE or power adapter
• Ports configurable for line-rate, Layer-2 switching
• 130 kpps for 64-byte packets
• 1 Gbps for 1518-byte packets
*Requires 24V passive PoE or a 12W minimum power adapter (not included).

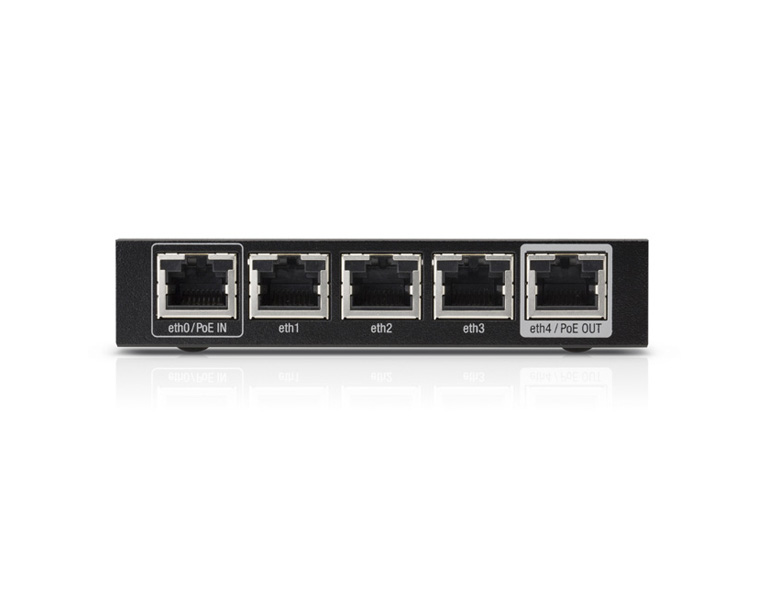

Ubiquiti Networks introduces the EdgeRouter™ X, part of the EdgeMAX^® platform. The EdgeRouter X combines carrier‑class reliability with excellent price‑to‑performance value in an ultra‑compact form factor.

PoE Versatility
The standard model, the ER-X, can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option¹ is available to support a single airMAX^® device².
¹Requires 24V passive PoE or a 12W minimum power adapter (not included).
²Check your airMAX device’s specifications for voltage and wattage requirements.

Configuration Methods
Powered by a proprietary and intuitive graphical interface, EdgeOS™, every EdgeRouter X can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

Intuitive User Interface
The EdgeRouter X provides a graphical user interface designed for convenient setup and control.
Accessed via a network port and web browser, the user -friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.
The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface.

Powerful Features
EdgeOS is a sophisticated operating system with robust features, including:
• VLAN interfaces for network segmentation
• Static routes and support of routing protocols: OSPF, RIP, and BGP
• Firewall policies and NAT rules
• DHCP services
• Quality of Service (QoS)
• Network administration and monitoring tools
• Administrator and operator accounts
• Comprehensive IPv6 support

Configuration by CLI
The CLI provides quick and flexible configuration by command line and features the following:
• For power users, configuration and monitoring of all advanced features
• Direct access to standard Linux tools and shell commands
• CLI access through SSH, Telnet, and the graphical user interface

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων:	Επισκευή - Αντικατάσταση:
20 ημέρες	24 μήνες

Specifications
Dimensions	110 x 75 x 22 mm
Weight	175 g
Power	5W
Power Input	12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
Power Supply	External AC/DC Adapter
Supported Voltage Range	9 to 26VDC
Button	Reset
LED	Power, Ethernet 0-4
Processor	Dual-Core 880 MHz, MIPS1004Kc
System Memory	256 MB DDR3 RAM
Code Storage	256 MB NAND
Certifications	CE, FCC, IC
Wall-Mount	Yes
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature	-10 to 45°C
Operating Humidity	10 to 90% Noncondensing
Networking Interfaces
Data/PoE Input Port	(1) 10/100/1000 RJ45 Port
Data Ports	(3) 10/100/1000 RJ45 Ports
Data/PoE Passthrough Port	(1) 10/100/1000 RJ45 Port
