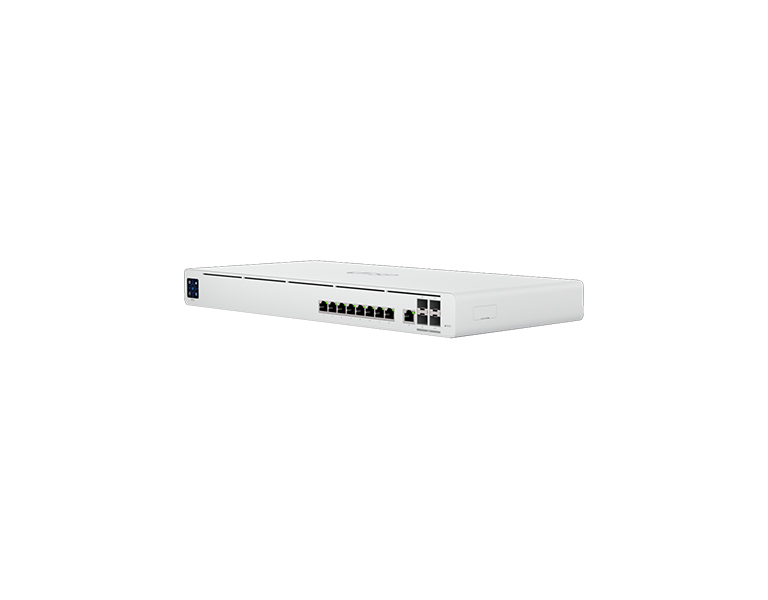

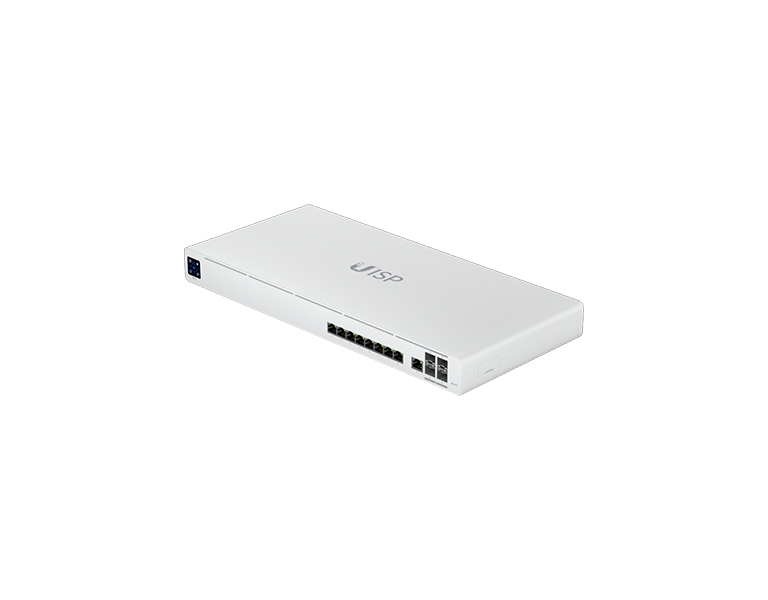

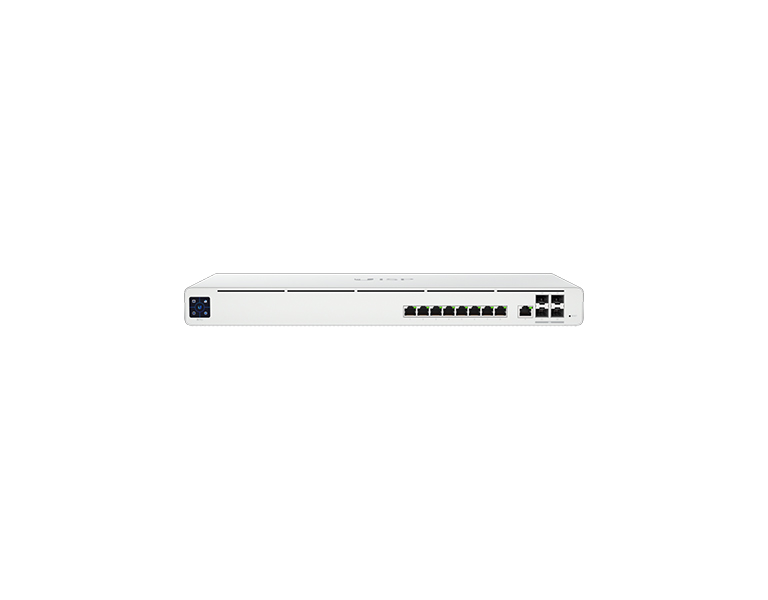

UISP-R-Pro is the ideal router due to its performance for deployment in the corporate sphere. The router has 8x Gigabit LAN, 1x Gigabit WAN, 4x SFP+ (1G and 10G support) ports for further expansion using optical fiber and 1.3" LCD touch screen for a simple display of the status and load of the router. UISP Router Pro is a router packed with functions and ports with an emphasis on quality, reliability and ease of installation. The router can be powered primarily via 230V AC from the network but also via 27V DC Power TransPort connector for possible redundancy. The UISP Router Pro is ONLY managed by the UISP application, a centralized platform where you can monitor and manage all your UISP devices.
Features:
• (8) Gigabit LAN + (1) Gigabit WAN
• (4) 10G SFP+ port
• 19" rackmount design
• Up to 9500 Mbps throughput in NAT / 2250 Mbps throughput with QoS
• Support for Firewall, OSPF routing and shaping
• Power supply via 230V AC but also via Power TransPort for DC redundancy
• Easy setup using Bluetooth via mobile app UISP 1.4.5 and above
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 24 μήνες |
Mechanical | |
Dimensions | 442.4 x 200 x 43.7 mm |
Weight | 3.27 kg |
Enclosure material | SGCC steel, polycarbonate/ABS |
Hardware | |
Networking interface | (8) 10/100/1000 MbE RJ45 LAN ports (1) 10/100/1000 MbE RJ45 WAN port (4) 1/10G SFP+ ports |
Management interface | Ethernet Bluetooth |
LCM display | (1) 1.3" touchscreen |
Processor | Quad ARM® Cortex®-A57 core at 1.7 GHz |
Memory | 4 GB DDR4 |
Onboard flash storage | 16 GB eMMC |
Power Method | (1) Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz (1) Power TransPort DC input 27VDC, 2.2A |
Power Supply | AC/DC, Internal, 60W |
Supported voltage range | 100 to 240VAC |
Max. power consumption | 50W |
ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
Operating temperature | -10 to 50° C |
Operating humidity | 5 to 95% non-condensing |
Certifications | CE,FCC,IC |
LEDs | |
RJ45 data ports | Speed/link/activity |
SFP+ data ports | Speed/link/activity |
