Ubiquiti U-POE-AF PoE Gigabit PoE Adapter, 48V/0.32A
Κωδικός προϊόντος:
U-POE-AF
Κατασκευαστής Ubiquiti
Τιμή πώλησης:
10,70 €(Περιλαμβάνει 24% ΦΠΑ)
Τιμή χωρίς ΦΠΑ: 8,63 €
Διαθεσιμότητα:
Κόστος Μεταφορικών:
- Περιγραφή
- Χαρακτηριστικά
- Λήψεις
- Γνώμες πελατών

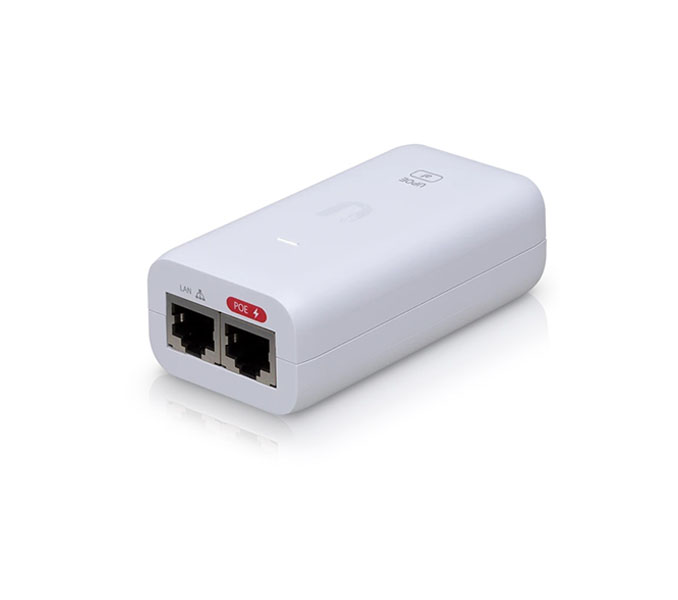

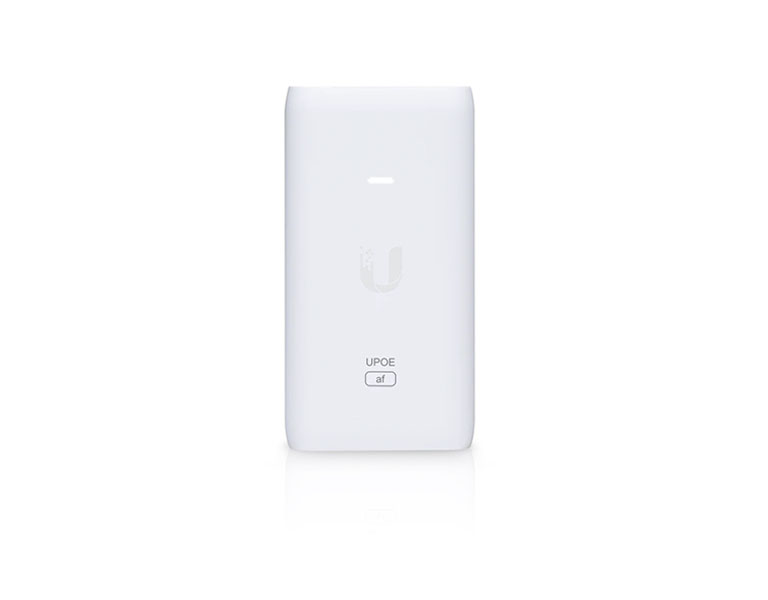

Ubiquiti U-POE-AF PoE Gigabit PoE Adapter, 48V/0.32A
PoE Adapter
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Protect / airVision®
• UniFi LED
• UFiber
* Check product specifications to verify PoE compatibility.
Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.

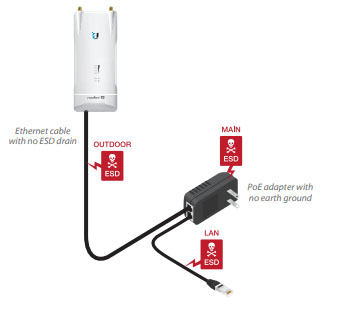

Potential for ESD
Areas vulnerable to ESD events in a network without a Ubiquiti PoE Adapter

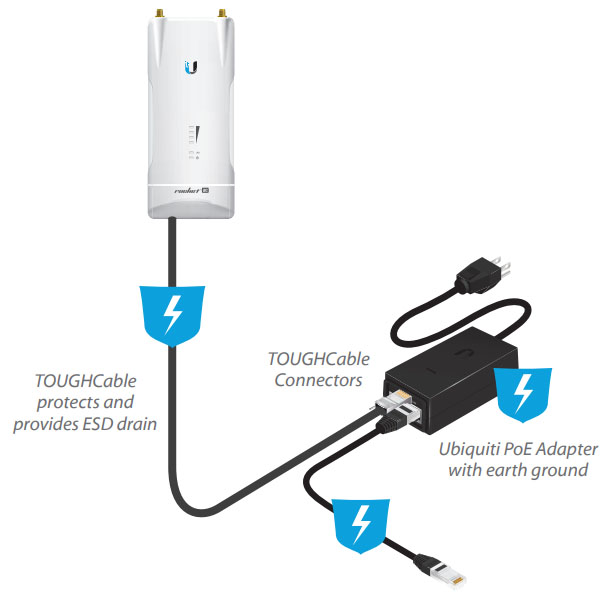

Protection Against ESD
Ubiquiti PoE Adapters and TOUGHCable protect against ESD events in a network.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
| Specifications | |
| Dimensions | 86 x 46 x 33 mm |
| Weight | 100 g (3.53 oz) |
| Output Voltage | 48VDC @ 0.32A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 500mA @ 90VAC |
| Inrush Current | <100A Peak @ 25°C |
| Efficiency | 84.25+% |
| Output Ripple | 200mV p-p |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| Operating Temperature | 0 to 40° C |
| Storage Temperature | -30 to 70°C |
| Operating Humidity | 5 to 90% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Certifications | CE, FCC, IC, UL |
