• (48) Gigabit RJ45 Ports
• (2) SFP+ Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 70 Gbps
• Switching Capacity: 140 Gbps
• Forwarding Rate: 104.16 Mpps
• Maximum Power Consumption: 500W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable

Advanced Switching
Technology for the Masses
Build and expand your network with Ubiquiti Networks^® EdgeSwitch™, part of the EdgeMAX^® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The EdgeSwitch provides total, non-blocking throughput:
• 8-Port Model Up to 10 Gbps
• 16-Port Model Up to 18 Gbps
• 24-Port Models Up to 26 Gbps
• 48-Port Models Up to 70 Gbps

PoE+ Flexibility
The EdgeSwitch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.
By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. The 8, 16, and 24-port models include two SFP ports, providing up to 1 Gbps uplinks.
For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing uplinks of up to 10 Gbps.

Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry -standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:
• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL

• DiffServ, CoS
• Static Routing, Policy-Based Routing
• DHCP Server Functionality

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων:	Επισκευή - Αντικατάσταση:
20 ημέρες	24 μήνες

Specifications
Dimensions	485 x 43.7 x 374.6 mm
Weight	6.1 kg
Total Non-Blocking Throughput	70 Gbps
Switching Capacity	140 Gbps
Forwarding Rate	104.16 Mpps
Max. Power Consumption	Includes PoE Output: 500W Excludes PoE Output: 64W

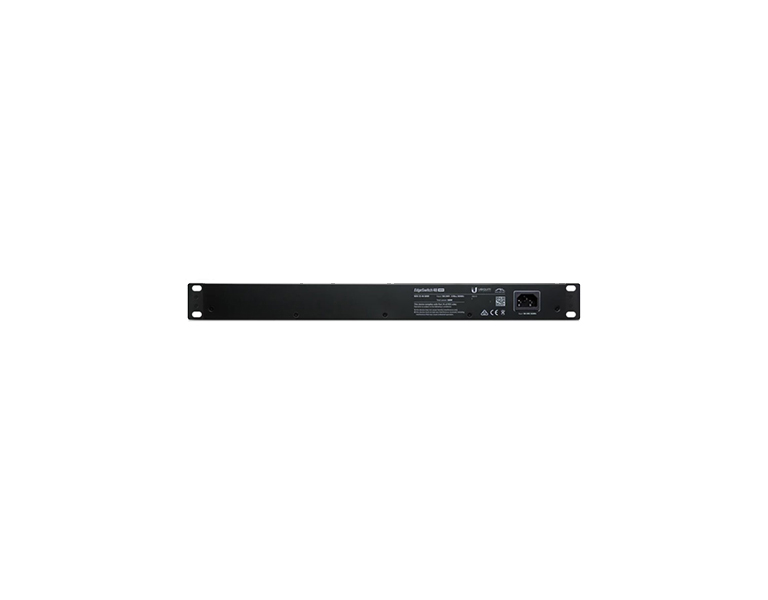

Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 500W DC
LEDs Per Port	RJ45 Data Ports: PoE, Speed/Link/Activity SFP Data Ports: Speed/Link/Activity

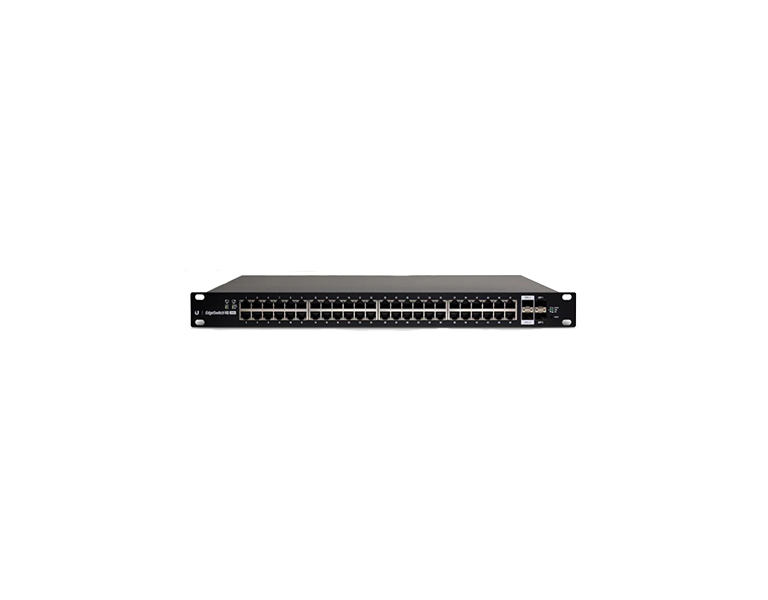

Networking Interfaces	(48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port, Ethernet In/Out Band
Certifications	CE, FCC, IC
Rackmount	Yes, 1U High
ESD/EMP Protection	Air: ±24 kV, Contact: ±24 kV
Operating Temperature	-5 to 40° C
Operating Humidity	5 to 95% Noncondensing
Shock and Vibration	ETSI300-019-1.4 Standard
PoE Per Port
PoE Interfaces	POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE	34.2W
Voltage Range 802.3at Mode	50-57V
Max. Passive PoE Wattage per Port	17W
24V Passive PoE Voltage Range	20-27V
