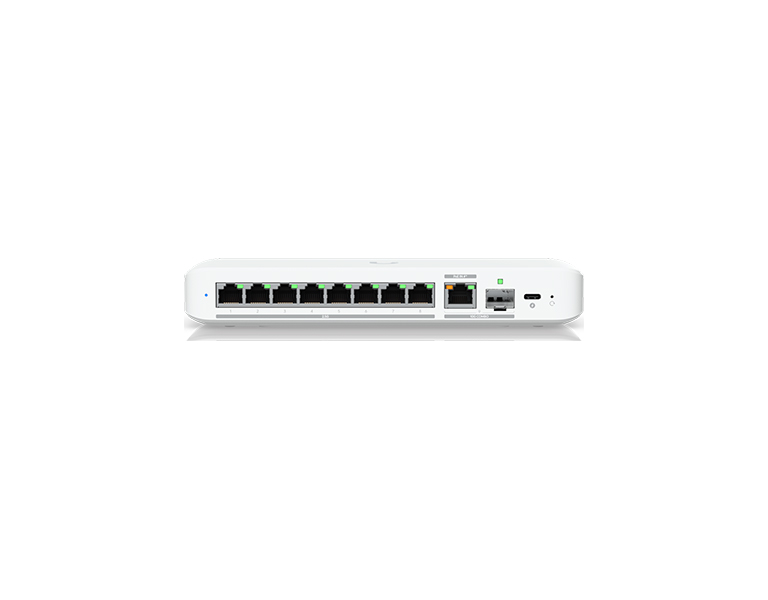

The Ubiquiti UniFi Switch Flex 2.5G is a compact switch designed to expand networks in home and office environments. It features 8x 2.5Gbit ports, enabling easy integration of devices with higher transfer speeds, such as modern access points, servers, or NAS storage systems. The switch supports management via the UniFi Network application, simplifying configuration and network monitoring.
The uplink is a combo 10G RJ45 / SFP+ port. One of its key features is Power over Ethernet support, meaning the device can be powered directly through a network cable via the uplink port's PoE input (802.3at / POE+), or alternatively via the included USB-C adapter. Although the uplink port is a combo, you can use not only one of the ports but also the metallic port for power and the optical port for data simultaneously.
With its minimalist design, it is ideal for placement on a desk or wall mounting. With an optional kit, DIN rail mounting is also possible. It is fully compatible with UniFi products and allows easy scalability as needed. Managing the device requires the UniFi Network application v9.0.108 or newer.

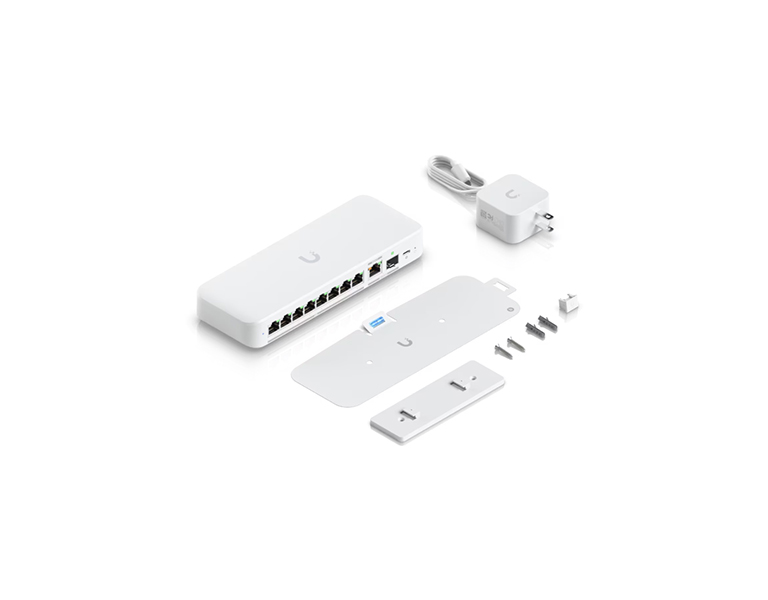

Package Contents
• Device
• USB-C Power Adapter (5V / 3A)
• Drilling Template
• Wall Mount Bracket
• Mounting Kit
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 24 μήνες |
Mechanical | |
Dimensions | 212.9 x 76 x 33.5 mm |
Port Layout |
2.5 GbE RJ45: 8
10 GbE RJ45: 1
10G SFP+: 1
|
Form Factor | Compact Desktop, wall, DIN, magnetic |
Performance | |
Switching Capacity | 60 Gbps |
Total Non-Blocking Throughput | 30 Gbps |
Forwarding Rate | 45 Mpps |
Supported VLANs | 256 |
MAC Address Table Size | 4,000 |
Layes 2 Features | |
STP & RSTP | Yes |
Egress Rate Limit | Yes |
Flow Control | Yes |
Storm Control | Yes |
Multicast & Broadcast Rate Limiting | Yes |
Port Isolation | Yes |
Port Mirroring | Yes |
Jumbo Frames | Yes |
Loop Protection | Yes |
Hardware | |
Max. Power Consumption | 14W with PoE input 14W with AC adapter input |
Power Method | (1) USB Type-C, 5V DC, 3A (1) PoE+ |
Power Input Method | USB Input PoE |
Power Supply | AC/DC, external, 15W |
Supported Voltage Range | 4.8—5.2V DC/USB 44V—57V PoE |
Management | Ethernet |
Weight | 395 g |
Enclosure Material | Polycarbonate |
Mount Material | Polycarbonate |
Ambient Operating Temperature | -20 to 45° C |
Ambient Operating Humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
NDAA Compliant | Yes |
Software | |
UniFi Network | Version 9.0.114 and later |
