• 4 communication channels: Ethernet Wi-Fi and two Sim cards (2G / 3G/ 4G)
• Up to 200 devices.
• Up to 64 scenarios.
• Free software updates.
• Remote control and set up via the app.
• Detectors with photo verification support.
• Up to 100 cameras or DVRs.
• Up to 25 security groups.
• Up to 5 range extenders.
• Effortless installation and maintenance.
• Connecting via QR code.

Always in touch — via cables, Wi-Fi, LTE
Communication with the outer world is critical for alarm control panels. Its reliability guarantees prompt delivery of alarm signals to Alarm Receiving Center and system users.
Hub 2 Plus makes external communication stability absolute. It has 4 communication channels and supports LTE. Such configuration allows you to connect the device to two separate Internet providers over Ethernet and Wi-Fi while having two cellular services ready for back up. Switching between channels happens seamlessly in seconds.

Alarm verification with photo in 9 seconds
Photo verification is the future of the security industry. This technology is an optimal solution for both commercial and residential premises — it is accessible and built to respect privacy. Animated series of photos from MotionCam detectors allow users and CMS operators to evaluate the situation in action. But photo cameras are activated only in response to alarms, never by request.
Hub 2 Plus can manage up to 200 MotionCam detectors and deliver photo confirmations of alarms to users and alarm monitoring companies in just 9 seconds, even when it uses SIM cards for communication. Thanks to LTE support.

Automated security
Hub 2 Plus supports 64 scenarios that minimize human impact on the security of a location. It can automatically arm and disarm the entire security system or certain groups by schedule. Moreover, it can instantly activate a smoke security machine in case of intrusion, cut power supply and turn on emergency lighting in case of fire, or cut water in case of leakage. Using automation devices, Hub 2 Plus can control lights, electric locks, and roller shutters. Scenarios can be activated in response to security mode changes, alarm triggerings, or Button commands

Protection of large premises with complex internal organization
Business centers, factories, and multi-story villas with outbuildings — Hub 2 Plus is ready to secure even the most complicated properties. The new hub controls up to 200 devices. Its radio signal range can reach up to 2,000 meters while the maximum radio network coverage can reach 35 km². Hub 2 Plus can manage 25 security groups with a total number of 200 users. This allows security personnel to divide large premises into zones and clearly organize staff access.

Resistant to sabotage
Whatever happens to Hub 2 Plus, alarm monitoring company and users will get a notification about it. A tamper alarm goes off when intruders try to unmount the device. If Ajax Cloud server loses connection with a hub, it’ll send a notification in just 60 seconds thanks to short ping intervals. Even during a blackout, Hub 2 Plus will continue to protect premises for up to 15 hours powered by a built-in backup battery

Future-proof
Hub 2 Plus runs on OS Malevich, a real-time operating system developed by Ajax Systems. OS Malevich is extremely stable, immune to viruses, and protected from cyberattacks. Modular architecture simplifies the constant upgrading of OS Malevich. The system gets new features several times a year via over-the-air software updates. The process doesn’t involve engineers or users and takes minutes to implement — only when the security system is disarmed. Hub 2 Plus is the most efficient Ajax control panel. It has a processor that is 4.5 times faster than Hub 2 and 8 times more flash memory. This hardware configuration allows the device to work for years and remain relevant.

Controlled with apps
We refused to add buttons to our control panel and to use archaic interfaces. Apps are more comfortable and safe. They connect to a hub using a secure channel with Ajax Cloud — our server solution located at several AWS data centers. Apps allow users to control security, edit hub settings, configure connected devices, create scenarios, and monitor events. From a smartphone or PC. While on-site or away.

Installation without fuss

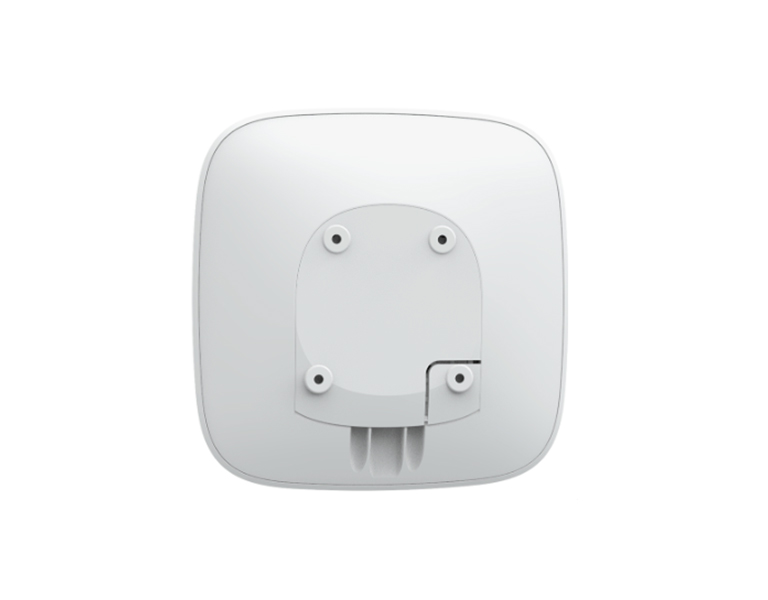

Hub 2 Plus is ready to work right out of the box. It comes with pre-installed communicators, a power supply unit, and a back-up battery. To begin the system set up, you'll need to plug the device into a power socket, connect it to the Internet, insert SIM cards, and scan the QR-code using the app. Thanks to SmartBracket, you won't even need to disassemble the device to mount it.
All security system settings are always available in the app. Even when you're far away from the hub, you can connect security devices or CCTV cameras, add users, test radio signal strength, create security groups and scenarios, or connect a hub to an alarm monitoring company.

Seamless security system upgrade
To simplify the process of upgrading installed hubs, they have provided the possibility of automatic data transfer. The import feature allows engineers to migrate settings, connected devices, groups, scenarios, and users from an old hub to Hub 2 Plus. In less than 15 minutes.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Technical Specifications
Capacity
Wireless Ajax devices	up to 200 Specifically, up to 10 sirens or keypads with a built-in siren and 5 range extender.
IP cameras or DVRs	up to 100 • Seamless integration with Dahua, Hikvision, Safire, EZVIZ, IP cameras, and DVRs • RTSP support.
Users	up to 200
Automation scenarios	up to 64
Security groups	up to 25
Rooms	up to 50
Wireless communication
Communication technology	Jeweller: Proprietary wireless communication technology to transmit alarms and events. Wings: Proprietary wireless communication technology to transmit photo verifications.
Maximum effective radiated power (ERP)	up to 20 mW Featured automatic power control to reduce power consumption and noise interference.
Radio signal range	Jeweller: up to 2,000 m Wings: up to 1,700 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted communication	All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping	To prevent radio interference and radio signal interception
Communication channels
Ethernet	10 / 100 Mbps
Cellular	2 micro-SIM slots
Cellular bands	2G / 3G / 4G (LTE)
Wi-Fi	802.11 b/g/n module
Notifications
Supported notification types	Push / SMS / Calls
Anti-sabotage protection	• Tamper alarm • Protection against spoofing • Frequency hopping
Power supply
Main	110–240 V~, 50/60 Hz Up to 10 W of mains power consumption.
Backup	Built-in backup battery: Li-ion 3 А·h Up to 15 hours of offline operation when Ethernet is disconnected.
Alternative	6 V⎓ Requires the 6V PSU for Hub 2/Hub 2 Plus/ReX 2 alternative power supply unit; sold separately.
Enclosure
Dimensions	163 × 163 × 36 mm
Weight	351 g
Operating temperature range	from −10°C to +40°C
Operating humidity	up to 75%
Protection class	IP20
Package Contents	Hub 2 Plus Jeweller SmartBracket mounting panel Power cable Ethernet cable Installation kit SIM card (depends on the sales region) Quick start guide
