• SmartDetect algorithm to prevent false alarms
• Temperature compensation
• Pet immunity
• DualTone two-factor glass break verification algorithm: by low and high frequencies
• Filter for false alarms caused by dog barking or truck-passing sounds

Single device. Dual protection

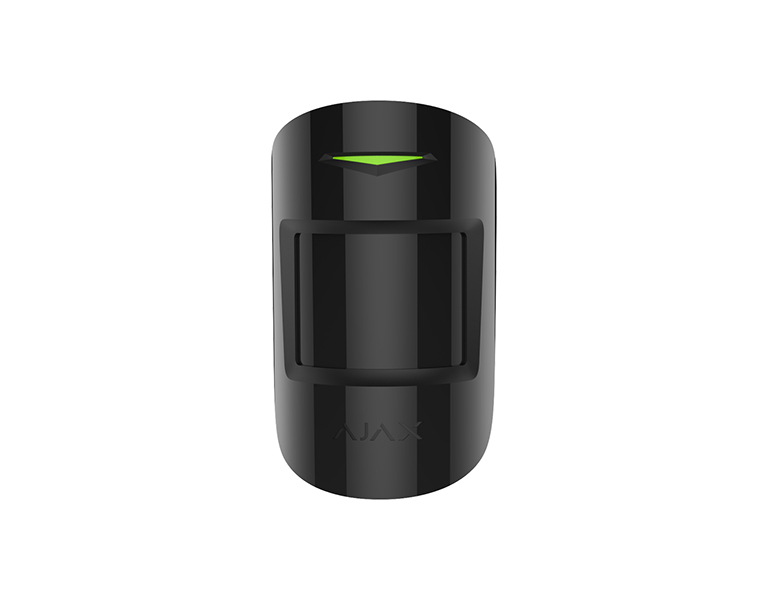

We have combined the functions of our two detectors and created a universal security solution for different types of objects — CombiProtect Jeweller. The device features software algorithms to prevent false alarms and has two primary functions — motion detection and glass break detection. Both sensors can be remotely configured in the app, as well as the required sensitivity level. It is also possible to test the device via the app. The intuitive interface and hassle-free installation create a satisfying PRO and end-user experience.

Enhanced glass break detection
CombiProtect Jeweller uses a sensitive electret microphone and the DualTone digital algorithm to detect the sound of glass breaking. To register a glass break and report an alarm, the device must detect a dull (low-frequency) sound of an impact and a ringing (high-frequency) sound of glass breaking in 1.5 seconds. This two-stage glass break detection algorithm decreases the risk of false alarms. Three sensitivity levels can be configured in the Ajax app, making the detector suitable for any object.

Wire-free flexibility and reliable performance
Baseline devices operate without any wires, offering maximum flexibility during installation. The pre-installed CR123A battery from proven manufacturers ensures a hassle-free setup, requiring no additional steps to start operating the devices. In addition to real-time testing during battery production, Ajax Systems inspects every unit to ensure the accuracy of the battery characteristics. The battery is easily replaceable, allowing one to swap them out after approximately five years of autonomous operation. The battery status is always accessible via the Ajax app. Users and security companies receive low battery level warnings months in advance, allowing for timely replacement without rushing.

Scaled and comprehensive
ReX 2 Jeweller boosts the radio range of all Ajax devices via Jeweller and ensures stable communication even through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering underground parking, basement, or metal hangar.

System supervision
All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as a tamper state, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Effortless installation and setup
CombiProtect Jeweller is ready to operate straight out of the box. Using the SmartBracket panel, an installer can effortlessly mount the device on the wall, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Technical Specifications
Compatibility	Hub (2G) / Hub (4G) / Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G) / Hub Plus, Rex, Rex2
Communication
Jeweller communication technology	Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: • Two-way communication. • Advanced anti-sabotage. • Block encryption featuring a dynamic key. • Instant notifications. • Remote control and configuration in Ajax apps
Maximum effective radiated power (ERP)	up to 20 mW Automatic power control to reduce power consumption and radio interference.
Radio communication range	up to 1,200 m Between the device and a hub (or a range extender) in an open space.
Detection
Sensitive element	PIR sensor
Motion detection distance	up to 12 m When installed at the height of 2.4 m.
Motion detection angle	horizontal: 88.5°
Motion detection speed	from 0.3 to 2 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Pet immunity	Weight — up to 20 kg Height — up to 50 cm
Temperature compensation	Effective motion detection at temperatures from −10 °C to +40 °C
Glass break detection
Sensitive element	electret microphone
Glass break detection distance	from 0.3 to 9 m
Glass break detection angles	horizontal: 180°
Sensitivity	3 levels

Glass break characteristics
Minimum glass size	279 × 279 mm Detection distance is up to 9 m or all glass types when the High sensitivity level is selected.
Sabotage protection	• Tamper alarm • Protection against spoofing • Communication loss detection
Power Supply
Battery	1 x CR123A Pre-installed.
Type	Type c
Calculated battery life	up to 5 years
Enclosure
Dimensions	110 × 65 × 50 mm
Weight	92g
Operating temperature humidity	from -10°C to +40°C
Operating humidity	up to75%
Protection class	IP50
Package contents	CombiProtect Jeweller SmartBracket mounting panel CR123A battery (pre-installed) Installation set Quick start guide
