• Up to 15 m detection distance range
• Night vision
• Advanced Pet immunity
• Anti-masking system
• Up to 3 years of operation from batteries
• Communication with the hub at distance of up to 1,700m

Motion detected. Alarm raised. Evidence captured

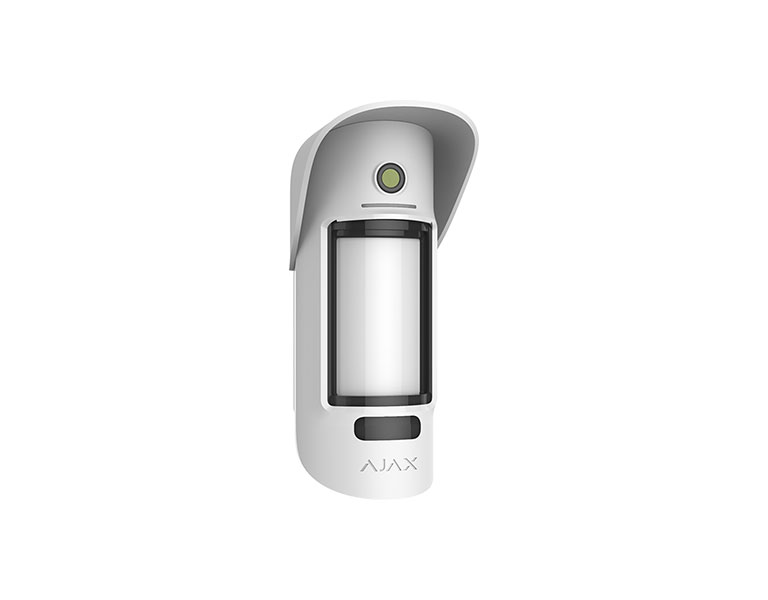

With MotionCam Outdoor, users know about the actual situation even before the burglars understand that they’re busted. An animated series of photos made by a wide dynamic range camera follows the instant motion alarm for an accurate situation appraisal. Photos are transmitted via an encrypted proprietary radio protocol and displayed in the Ajax apps or third-party monitoring software.

False alarm prevention
MotionCam Outdoor features a system of two independent PIR sensors that collect enough data to analyse the threat's reality with the LISA two-step software algorithm. LISA compares the frequency components of sensors signals — it is the know-how of the Ajax Systems that guarantee the detector accuracy

Weatherproof design
MotionCam Outdoor is ready to operate in a wide range of climate zones. The detector is protected from dust and splashes and features a temperature compensation technology, making it effective in any weather conditions. The bundled hood protects masking sensors from rain and snow.

Hassle free installation
To add a detector to the system, an installer scans the QR code with the Ajax app and assigns a name and a room. Configuring is done in the app in real-time using detection zone and signal strength tests. The detector can be disabled or its system parameters can be reconfigured remotely

Antisabotage protection
The anti-masking system calibrates automatically when mounting the device onto SmartBracket. Then, if an obstacle appears in the field of view of anti-masking sensors or if they are painted, the detector notifies users and a security company. A tamper is immediately activated when the detector is dismounted from the bracket. The system needs less than a minute to identify communication loss with the detector.

Guaranteed alarm delivery
We ve developed the Jeweller radio protocol to ensure the uninterrupted operation of all system devices. The radio protocol uses time frames to synchronize communication of connected devices, authentication to eliminate forgery, and encryption to protect against hacking

Secure photo transmission
We ve developed Wings an encrypted two way radio protocol to securely deliver photos at a significant distance. It allows receiving visual alarm verification in a matter of seconds. Working in parallel with Jeweller, Wings does not interfere with it, providing stable data communication with a compatible hub at a distance of up to 1,700 meters.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Technical Specifications
Compatibility
Compatible hub models	Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G)
Compatible range extenders	ReX 2
Communication
Communication technology	• Jeweller • Wings
Maximum effective radiated power (ERP) (Jeweller)	up to 20 mW
Radio signal range (Jeweller / Wings)	up to 1,700 m Between detector and hub or range extender in an open space.
Encrypted communication (Jeweller)	All stored and transmitted data are protected by block encryption featuring a dynamic key.
Radio frequency hopping (Jeweller / Wings)	To prevent radio interference and jamming.
Detection
Sensitive element	2x PIR sensor
Photo by Alarm	A built-in camera is activated if the detector is armed and motion is detected.
Motion detection distance	up to 3–15 m When installed at a height of 0.8–1.3 m. Adjusted with a scrollbar on the device enclosure.
Motion detection angles	horizontal — 90°
Camera angles	horizontal — 101° vertical — 50°
Motion detection speed	from 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity	3 levels Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity	weight: not relevant height: up to 80 cm
False alarm prevention	LISA SmartDetect Software algorithms.
Temperature compensation	Effective motion detection at temperatures from −25°C to +60°C.
Anti-sabotage protection	• Tampering alarm • Anti-masking system • Protection against spoofing • Communication loss detection
Power supply	4 × CR123A battery Type C
Battery life	up to 3 years with Delay when entering feature disabled up to 2.5 years with Delay when entering feature enabled
Enclosure
Dimensions	206 × 108 × 93 mm
Weight	470 g
Operating temperature range	from −25°C to +60°C
Operating humidity	up to 95%
Protection class	IP55
Package contents	MotionCam Outdoor Jeweller Hood visor SmartBracket mounting panel Installation kit 4 × CR123A battery (Pre-installed) Quick Start Guide
