• Up to 12 m detection distance
• Pet immunity
• False alarms prevention algorithm
• Remote control and setup via the app
• 88.5°/80° viewing angles
• Temperature compensation
• Effortless installation and replacement
• Connecting via QR code

False alarm prevention
MotionProtect Jeweller combines special optics and software to filter false alarms. When professionally installed, the detector ignores pets and doesn’t react to the most common sources of false alarms.

Optics
The detector lens increases sensitivity to human motion, cutting off false alarms to other sources of IR radiation. It is designed so that potential IR radiation from pets and other interferences affect only the small lens sections. Large sections, on the contrary, are aimed at the most likely places of burglar motion.

Software
For additional protection against false alarms, the detector uses the SmartDetect algorithm. The armed detector constantly analyses the thermal diagram from the PIR sensor: the intensity of IR radiation, the size of the thermal spots, the speed of movement and other parameters.

Installation

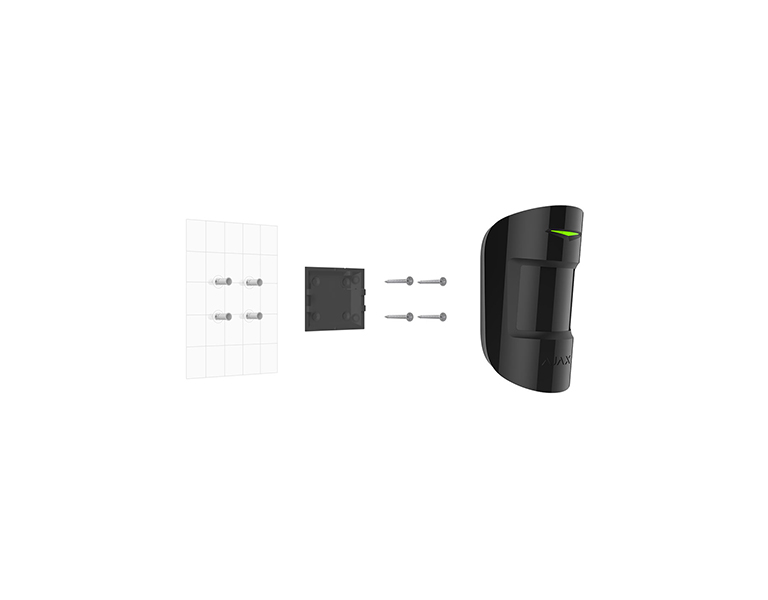

When properly installed and configured, the detector does not react to common sources of false alarms and pets under 50 cm tall and 20 kg in weight. For seamless installation, it has pre-installed batteries and the SmartBracket mounting panel. So, installers don’t need to disassemble the detector and won’t damage the electronics during installation.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Technical Specifications
Classification	Electro-optical radio channel security detector
Type of detector	Wireless
Installation method	Indoors
Compatibility	Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Sensing element	PIR sensor
Alarm signal delivery time	0.15 s
Motion detection distance	Up to 12 m
Detection angles	Horizontal — 88.5° Vertical — 80°
Time for motion detection	From 0.3 to 2 m/s
Sensitivity	Adjustable, 3 levels
Recommended installation height	2.4 m
Pet immunity	Weight — up to 20 kg Height — up to 50 cm
Power supply	Battery: CR123A battery, 3 V
Battery life	Up to 5 years
Jeweller radio technology	• Communication range with central unit — up to 1,700 m in an open space • Two-way communication between devices • Self-adjusting RF output power — up to 20 mW • Block encryption based on AES algorithm • Detector polling period — 12−300 s
Temperature sensor	Available
Operating temperature range	From -10°С to +40°С
Permissible humidity	Up to 75%
Anti-sabotage	Protection against fraud Jamming detection Tamper-resistant
Remote setting and testing	Yes
Dimensions	110 × 65 × 50 mm
Weight	86 g
Package contents	MotionProtect motion detector SmartBracket mounting panel CR123A battery (pre-installed) Installation set User's guide
