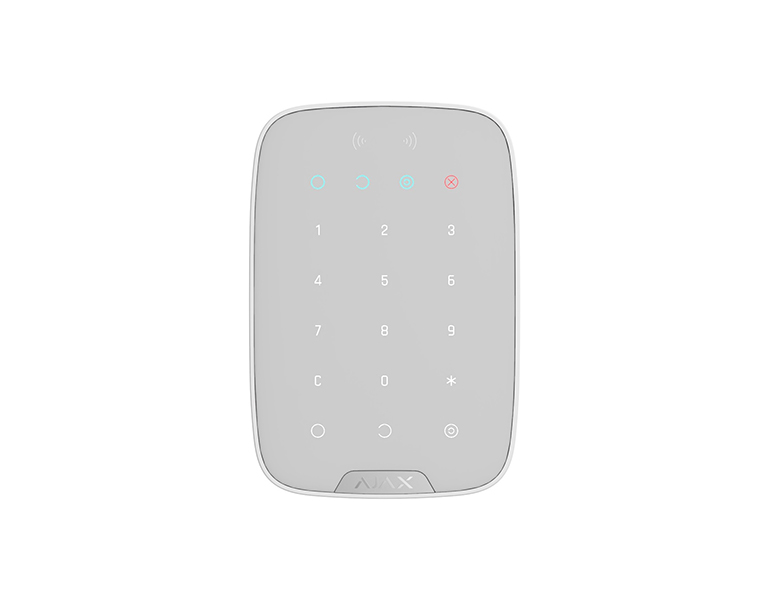

AJAX SYSTEMS AJ-KEYPAD-PLUS-W - KEYPAD PLUS WHITE

Product Code:
AJ-KEYPAD-PLUS-W
Manufacturer Ajax
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
AJAX SYSTEMS AJ-KEYPAD-PLUS-W - KEYPAD PLUS WHITE
• Duress code
• Panic button
• Remote control and setup via the app
• Protection against passcode guessing, as well as spoofing of a card or key fob
• Effortless installation and replacement
• Pairing with the system via QR code

Contactless security management
With KeyPad Plus, you do not need to create Ajax accounts for new users. You just need to provide a copy-protected contactless card or key fob so that the user can manage the security of the entire object or individual groups.

Secure User Identification
To identify users quickly and securely, KeyPad Plus uses the DESFire® technology. DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in transportation systems of European capitals and access systems at NASA.

Control with access codes
KeyPad Plus supports common and personal passwords, as well as arming without entering a password. The keypad additionally supports passcodes for users not connected to the hub. This is convenient, for example, for creating a cleaning company passcode. The use of passcodes is informative: users and the monitoring station know exactly who and when changed the security mode.

Remote access control
All KeyPad Plus events are registered in the Ajax app. If the access device is lost, the owner can instantly block it in the app,and the user can use a personal passcode at this time. All permissions and passcodes can be changed remotely and in real-time.

Autonomy
Even with daily use of the contactless identification function, the keypad will run for up to 3.5 years without replacing batteries. And with the card and key fob reader disabled, the battery life reaches 4.5 years. KeyPad Plus alerts the security company and users to replace the batteries.

Comprehensive anti-sabotage protection
KeyPad Plus is protected from passcode guessing. The keypad is blocked after several attempts to guess the passcode or
use a third-party card or key fob. Users and the security company are notified of such attempts, as well as in the event of a
loss of connection or if the keypad was removed from its mount.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months



Technical specifications
Keypad type Capacitive touch keypad
Installation Indoor only
Compatibility Hub Plus / Hub 2 / Hub 2 Plus / Hub Hybrid / radio signal range extenders with OS Malevich 2.11 and higher
Personal codes Yes
Protection against code guessing Yes
Duress code Yes
Contactless access DESFire® EV1, EV2
ISO14443-А (13,56MHz)
Power supply Batteries: 4 lithium AA (FR6)
Voltage 1.5V
Battery life: up to 4.5 years
Temperature sensor Yes
Jeweller radio technology • Communication range with control panel — up to 1,700 m
• Two-way communication between devices
• Maximum effective radiated power (ERP) — up to 20 mW
• Block encryption with a dynamic key
• Polling interval — 12–300 s
Anti-sabotage • Authentification
• Jamming detection
• Tamper alarm
Operating temperature range From -10°С to +40°С
Operating humidity Up to 75%
Dimensions 165 × 113 × 20 mm
Weight 267 g
Certification EN 50131, complies with the requirements of the technical regulations for radio equipment
Package contents KeyPad Plus
SmartBracket mounting panel
4 × АА battery (pre-installed)
Installation kit
Quick Start Guide
