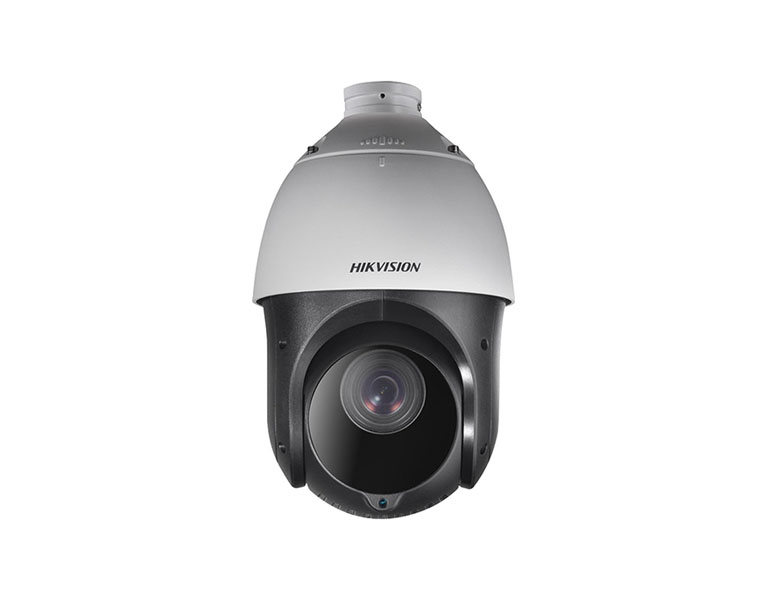

Hikvision DS-2AE4225TI-D(E) 4-inch 2MP 25X Powered by DarkFighter IR Analog Speed Dome
Product Code:
DS-2AE4225TI-D(E)
Manufacturer Hikvision
- Description
- Specifications
- Downloads
- Reviews
Hikvision DS-2AE4225TI-D(E) 4-inch 2MP 25X Powered by DarkFighter IR Analog Speed Dome
• 1/2.8" HD progressive scan CMOS
• 1920 × 1080 resolution
• 25× optical zoom
• 120 dB true WDR (Wide Dynamic Range)
• Up to 100 m IR distance
• 3D intelligent positioning
• Switchable TVI/AHD/CVI/CVBS video output
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Camera | |
| Model | DS-2AE4225TI-D(E) |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate | 50Hz: 25fps @(1920 x 1080) 60Hz: 30fps @(1920 x 1080) |
| Min.Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
| White Balance | AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR |
| AGC | AUTO/MANUAL |
| DNR | 3D DNR |
| WDR | ≥ 120 dB |
| Shutter Time | PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Digital Zoom | 16x |
| Privacy Mask | 8 programmable privacy masks |
| BLC (Backlight Compensation) | Yes |
| HLC (highlight Compensation) | Yes |
| EIS (Electric Image Stabilization) | Yes |
| Regional Focus | Yes |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 4.8 mm to 120 mm, 25x Optical |
| Aperture Range | F 1.6 to F 3.5 |
| Horizontal Field of View | 57.6° to 2.5° (wide-tele) |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Approx. 3.2 s (optical, wide to tele) |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s |
| Tilt Range | -15° to 90°(auto flip) |
| Tilt Speed | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Yes |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Position Display | ON/OFF |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
| Infrared | |
| IR Distance | Up to 100 m |
| IR Intensity | Automatically adjusted depending on the zoom ratio |
| Input/Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Menu Language | English |
| Power | 12 VDC Max.20 W (IR:7 W) |
| Working Temperature | -30°C to 65°C |
| Working Humidity | 90% or less |
| Protection Level | IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
