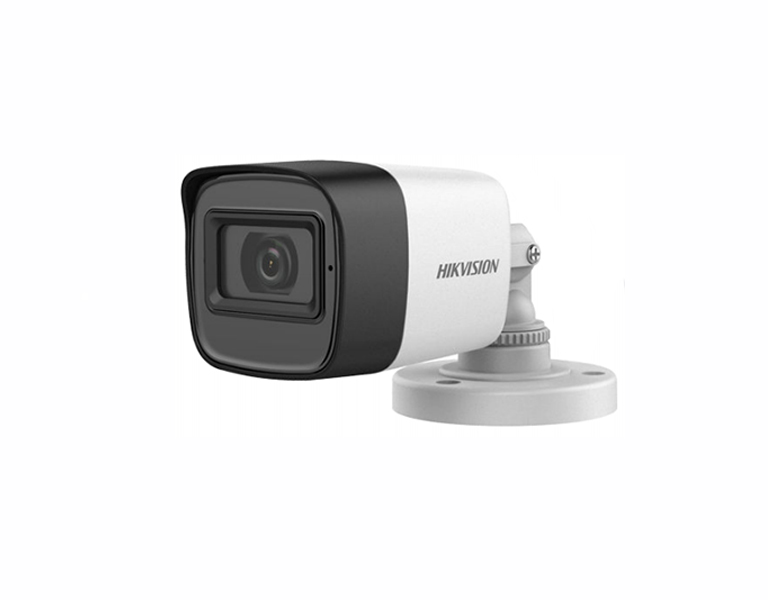

Hikvision DS-2CE16D0T-ITFS-2.8 2MP Audio Camera (2.8mm)
Product Code:
DS-2CE16D0T-ITFS-2.8
Manufacturer Hikvision
- Description
- Specifications
- Downloads
- Reviews
Hikvision DS-2CE16D0T-ITFS-2.8 2MP Audio Camera (2.8mm)
CAUTION!!! Package doesn't include power supply!!!
• 2 MP coaxial audio camera
• Enhancing safety with discreet and economical built-in microphone
• Transmits audio over the coaxial cable
• EXIR 2.0: advanced infrared technology with 30 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Camera | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Signal System | PAL/NTSC |
| Min. illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day ＆ Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360° |
| Lens | |
| Lens Type | 2.8 mm fixed lens |
| Focal Length ＆ FOV | horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° |
| Lens Mount | M12 |
| Image | |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | Yes |
| White Balance | Auto/Manual |
| AGC | Support |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Metal |
| Dimension | 58 mm × 61 mm × 158.6 mm |
| Weight | Approx. 292 g |
| Operating Condition | -40 °C to 60 °C , humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25% |
| Consumption | Max. 3.7 W |
| IR Range | Up to 30 m |
| Approval | |
| Protection | IP67 |
There are yet no reviews for this product.
