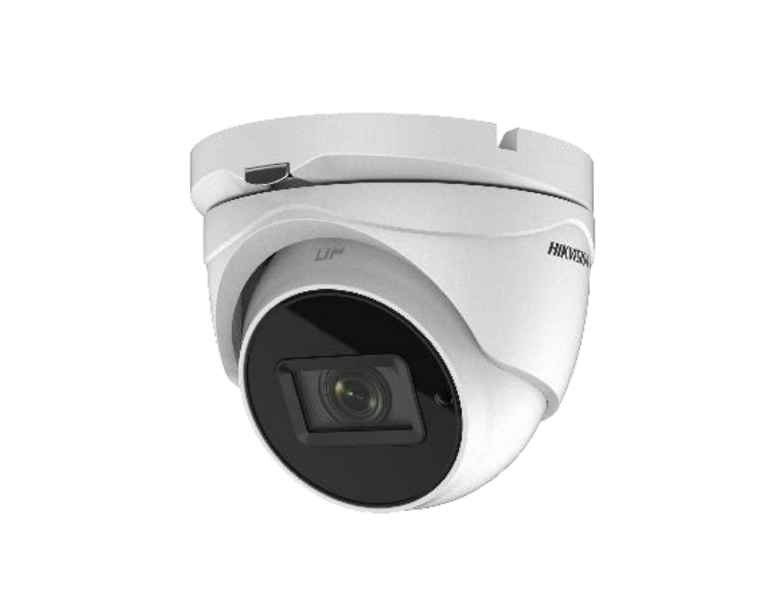

Hikvision DS-2CE79U1T-IT3ZF 8MP Turret Camera
CAUTION!!! Package doesn't include power supply!!!
• 8.29 MP high performance CMOS
• Auto focus
• 3840 x 2160 resolution
• 2.7 mm to 13.5 mm motorized vari-focal lens
• EXIR 2.0, smart IR, up to 60 m IR distance
• OSD menu, DNR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (HIKVISION-C)
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Camera | |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N |
| Resolution | 3840 (H) x 2160 (V) |
| Min. illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s |
| Lens | 2.7 mm to 13.5 mm motorized vari-focal lens |
| Horizontal Field of View | 108.1° to 45.6° |
| Lens Mount | Φ 14 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Synchronization | Internal synchronization |
| DWDR (Digital Wide Dynamic Range) | 105 dB |
| Menu | |
| AGC | Yes |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| BLC | Yes |
| DWDR (Digital Wide Dynamic Range) | Yes |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR, HLC |
| Interface | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40 °C to 60 °C, humidity: 90% or less (non-condensation) |
| Power Supply | 9 VDC to 15 VDC *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 8.6W |
| Protection Level | IP67 |
| Material | Metal |
| IR Range | Up to 60 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions | 134.3 mm x 123.86 mm x 110.24 mm |
| Weight | Approx. 580 g |
