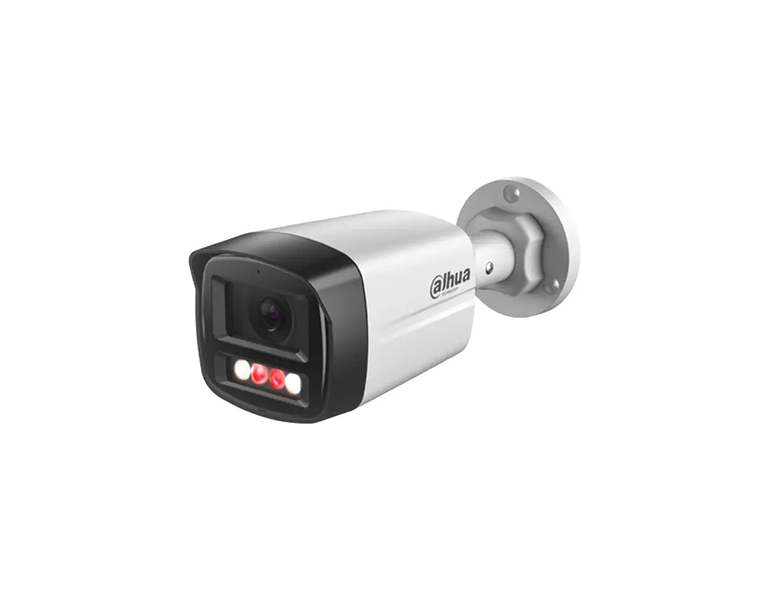

DAHUA IPC-HFW1439TL1-A-IL-0280B 4MP Entry Smart Dual Light Fixed-focal Bullet IP Camera (2.8mm)

Product Code:
IPC-HFW1439TL1-A-IL-0280B
Manufacturer Dahua
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
DAHUA IPC-HFW1439TL1-A-IL-0280B 4MP Entry Smart Dual Light Fixed-focal Bullet IP Camera (2.8mm)
• 4 MP 1/2.9" CMOS image sensor, low luminance, and high definition image
• Outputs max. 4 MP (2560 × 1440)@25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
• WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access
• Built in Mic
• 12 VDC/PoE power supply
• IP67 protection
• Supports human detection

Series Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises.

Functions
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

Human Detection
Dahua intelligent algorithms extract moving human targets from videos and filters out alarms that are triggered by non-human targets to increase the accuracy and effectiveness of alarms.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months



SPECIFICATIONS
Camera
Image Sensor 1/2.9" CMOS
Max. Resolution 2560 (H) × 1440 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.006 Lux@F1.6 (Color, 30 IRE)
0.0006 Lux@F1.6 (B/W, 30 IRE)
0 Lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance Up tp 30 m (IR LED)
Up to 30m (Warm light)
Illuminator On/Off Control Auto/ manual
Illuminator Number 2 (IR LED), 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Focal Length  2.8 mm
Lens Mount M12
Max. Aperture F1.6
Field of View H: 94°, V: 52°, D: 111°
Iris Control Fixed
Close Focus Distance 1.1 m
DORI Distance Detect: 64.0 m
Observe: 25.6 m
Recognize: 12.8 m
Identify: 6.4 m
Intelligence
Human Detection Support the classification and accurate detection of human
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.264H, H.265, H.264, H.264B, MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+
Smart H.264+
Video Frame Rate Main stream: 2560 × 1440@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability 2 streams
Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
BLC Yes
HLC Yes
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–4096 kbps
H.265: 12 kbps–4096 kbps
Day/Night Auto(ICR)/Color/B/W
WDR 120 dB
White Balance Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control Auto, manual
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Noise Reduction 3D NR
Mirror Yes
Smart Illumination Yes
Privacy Masking 4 areas
Image Rotation 0°/180°
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; PCM
Alarm
Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Configuration encryption;Trusted execution;Digest;Security logs;HTTPS;Trusted upgrade;WSSE;Trusted boot;Account lockout;Generation and importing of X.509 certification;Video encryption
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability ONVIF (Profile S/Profile T), CGI
User/Host 6 (Total bandwidth: 24 M)
Storage FTP
Browser IE
Chrome
Firefox
Management Software Smart PSS Lite, DSS, DMSS
Mobile Client IOS, Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2 W (12 VDC); 2.9 W (PoE)
Max. (H.265 + intelligence on+ WDR + illuminator intensity): 6.4 W (12 VDC); 7.7 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C
Storage Temperature –40 °C to +60 °C
Operating Humidity  ≤95%
Storage Humidity ≤95%
Protection Grade IP67
Structure
Casing Metal+plastic
Product Dimensions 197.9 mm × 80.2 mm × 76.2 mm
Net Weight 0.31 kg
Gross Weight 0.45 kg
