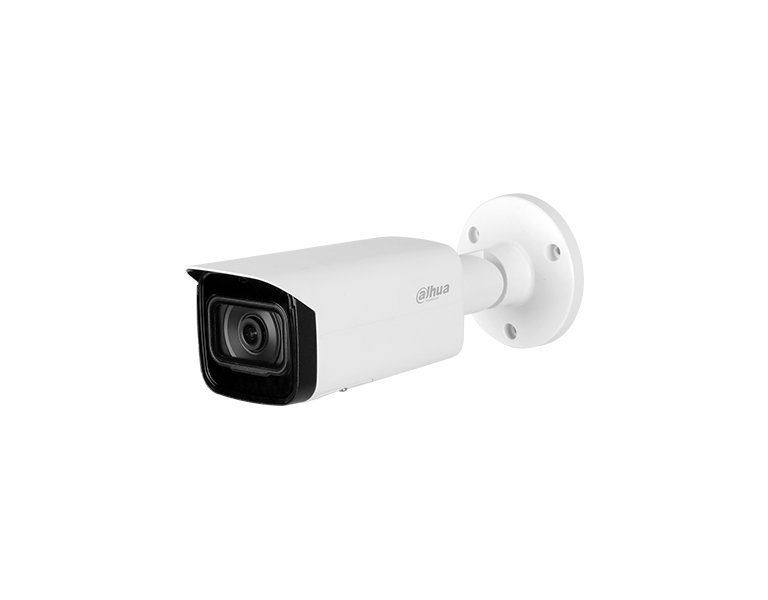

DAHUA IPC-HFW5541T-ASE-0280B-S3-2.8 5MP IR Fixed-focal Bullet WizMind Network Camera (2.8mm)

Product Code:
IPC-HFW5541T-ASE-0280B-S3-2.8
Manufacturer Dahua
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
DAHUA IPC-HFW5541T-ASE-0280B-S3-2.8 5MP IR Fixed-focal Bullet WizMind Network Camera (2.8mm)
• 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
• Outputs max. 5 MP (2960×1668) @25/30fps
• Built-in IR LED, and the max. illumination distance is 80 m
• ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC
• 12 VDC/PoE power supply; ePoE
• IP67 and IK10 protection
• SMD 3.0

Series Overview
Driven by deep learning algorithms, Dahua WizMind S Series network camera offers a variety of intelligent functions that greatly improve the accuracy of audio and video analysis. It supports video metadata, smart sound detection, face detection, perimeter protection, people counting and more. The camera also adopts advanced image processing AI-Powered Image technology and has the Deeplight night vision effect. The camera is dustproof, waterproof and vandal-proof, and is certified as IP67 and IK10 (the type of protection varies depending on the model).

Functions
AI-Powered Image
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

Smart Sound Detection
With deep learning algorithms, Dahua Smart Sound Detection technology can detect and identify the sound of screams, glass breaking, and more.

People Counting
With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs reports to meet your requirements.

Video Metadata
With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months



SPECIFICATIONS
Camera
Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 4 GB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.0009 Lux@F1.6 (Color,30IRE)
0.0005 Lux@F1.6 (B/W,30IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 80 m (IR)
Illuminator On/Off Control Auto/ manual
Illuminator Number 4 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Focal Length  2.8 mm
Mount Type M12
Max. Aperture F1.6
Field of View H: 111°; V: 58°; D: 132°
Iris Type Fixed
Close Focus Distance 1.1 m
DORI Distance Detect: 63.6 m
Observe: 25.4 m
Recognize: 12.7 m
Identify: 6.4 m
Intelligent
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object Detection  Smart abandoned object; smart missing object
SMD 3.0 Less false alarm, longer detection distance
AI SSA Yes
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
People Counting Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Smart Sound Detection Yes
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+
Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 2960 × 1668@(1–25/30 fps) Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability 4 streams
Resolution 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
BLC Yes
HLC Yes
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–16384 kbps
H.265: 12 kbps–11776 kbps
Day/Night Auto(ICR)/Color/B/W
WDR 120 dB
Scene Self-adaptation(SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Noise Reduction 3D NR
Mirror Yes
Smart Illumination Yes
Defog Yes
Privacy Masking 8 areas
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception
Network
Network Port RJ-45 (10/100 Enhancement Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Cyber Security Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
Management Software SmartPSS Lite; DSS; DMSS
Mobile Client IOS, Android
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3V–5 VDC
Alarm Output 1 channel out: wet contact, 300mA 12V DC
Power
Power Supply 12V DC/PoE (802.3af)/ePoE
Power Consumption Basic: 4.1 W (12 VDC); 5.2 W (PoE)
Max. (H.265+ WDR+ Intelligence on+IR on): 8.3 W (12 VDC); 9.8 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C
Storage Humidity 10%–95% (RH), non-condensing
Protection  IP67; IK10
Structure
Casing Material Metal
Product Dimensions 244.1 mm × 79.0 mm × 75.9 mm
Net Weight 0.82 kg
Gross Weight 1.08 kg
