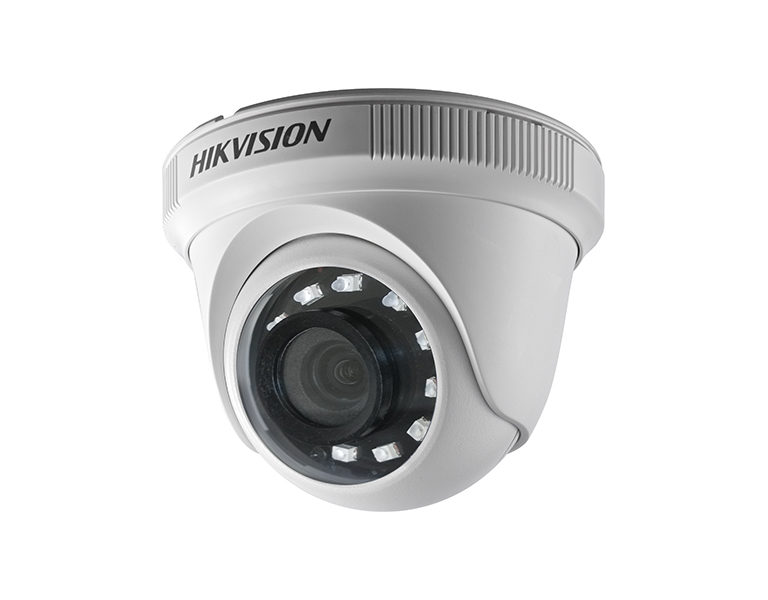

Hikvision DS-2CE56D0T-IRPF(C)-2.8 2MP Indoor Fixed Turret Camera (2.8mm)

Product Code:
DS-2CE56D0T-IRPF(C)-2.8
Manufacturer Hikvision-offers
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Hikvision DS-2CE56D0T-IRPF(C)-2.8 2MP Indoor Fixed Turret Camera (2.8mm)

CAUTION!!! Package does not include power supply!!!

• 2 MP turret camera
• Smart IR: up to 20 m IR distance
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Camera
Image Sensor 2MP CMOS
Signal System PAL/NTSC
Frame Rate TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm fixed lens
Field of View 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
Lens Mount M12
Day & Night ICR
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Menu
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR/BLC/HLC/Global
Language English
Functions Brightness, Sharpness, Smart IR
Image Mode STD/HIGH-SAT
Noise Reduction 2D DNR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C, Humidity: 90% or less (non-condensation)
Power Supply 12 VDC±15%
Power Consumption Max. 2.2 W
Material Plastic
IR Range Up to 20 m
Communication HIKVISION-C
Dimension Φ 89.9 mm x 70.1 mm
Weight Approx. 130 g
