DS-2CD1143G2-LIU-2.8-1 DS-2CD1143G2-LIU-2.8

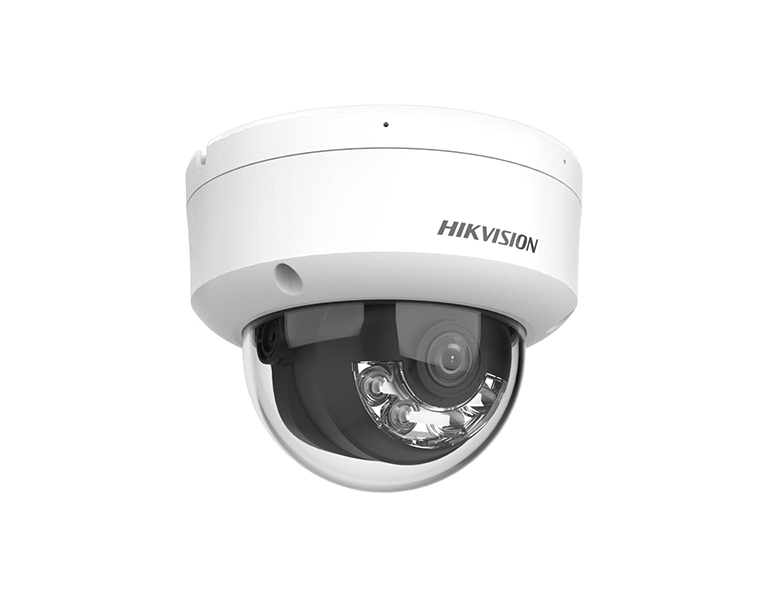

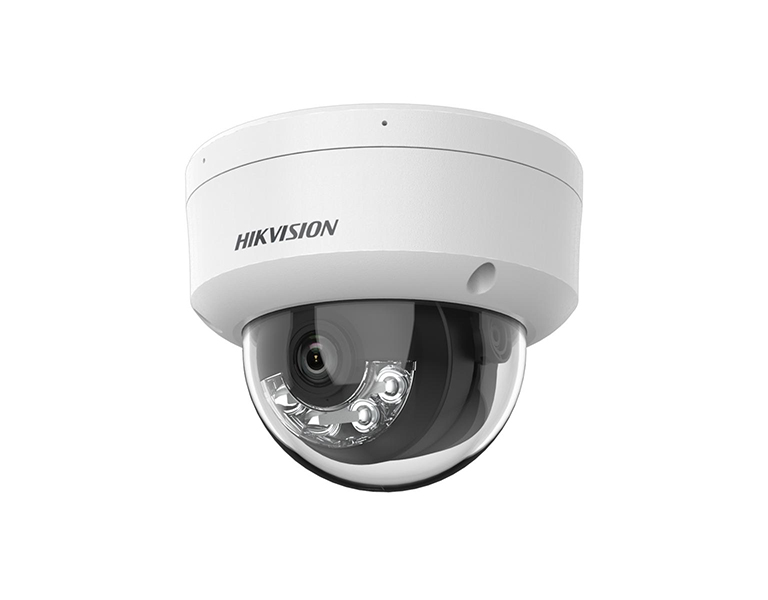

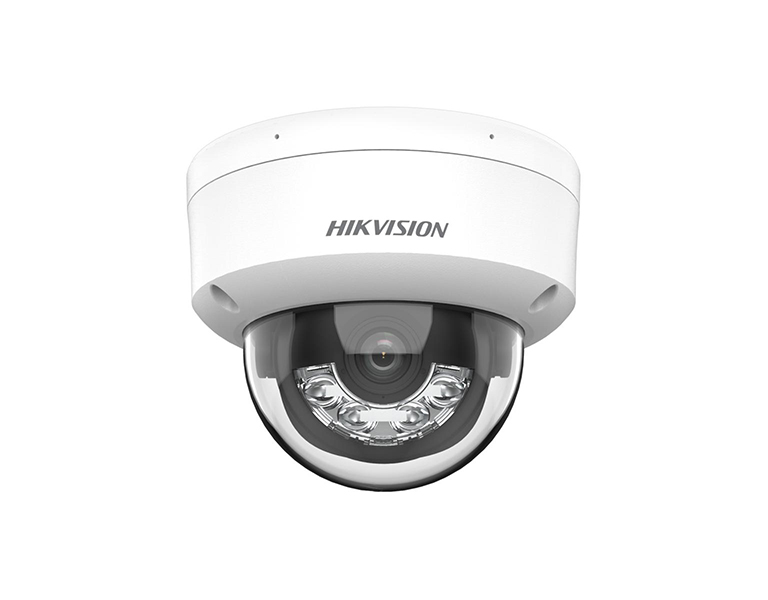

Hikvision DS-2CD1143G2-LIU-2.8 4 MP Fixed Dome IP Camera (2.8mm)

Product Code:
DS-2CD1143G2-LIU-2.8
Manufacturer Hikvision
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Hikvision DS-2CD1143G2-LIU-2.8 4 MP Fixed Dome IP Camera (2.8mm)

CAUTION!!! Package doesn't include power supply!!!

• High quality imaging with 4 MP resolution
• Support Human and Vehicle Detection
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Smart Hybrid Light: advanced technology with long range
• Efficient H.265+ compression technology
• Built-in microphone for real-time audio security



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Type Fixed focal lens 2.8 mm
Focal Length & FOV 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Region of Interest (ROI) 1 fixed region for main stream
Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users
3 levels: administrator, operator, and user
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to FTP, send email, notify surveillance center, trigger capture
General
Power 12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Metal & Plastic
Dimension Ø 121.4 mm × 97.7 mm
Package Dimension 150 mm × 150 mm × 141 mm
Weight Approx. 550 g
With Package Weight Approx. 800 g
Storage Conditions -30 °C to 60 °C
Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C
Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email
Approval
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
IK08: IEC 62262:2002
