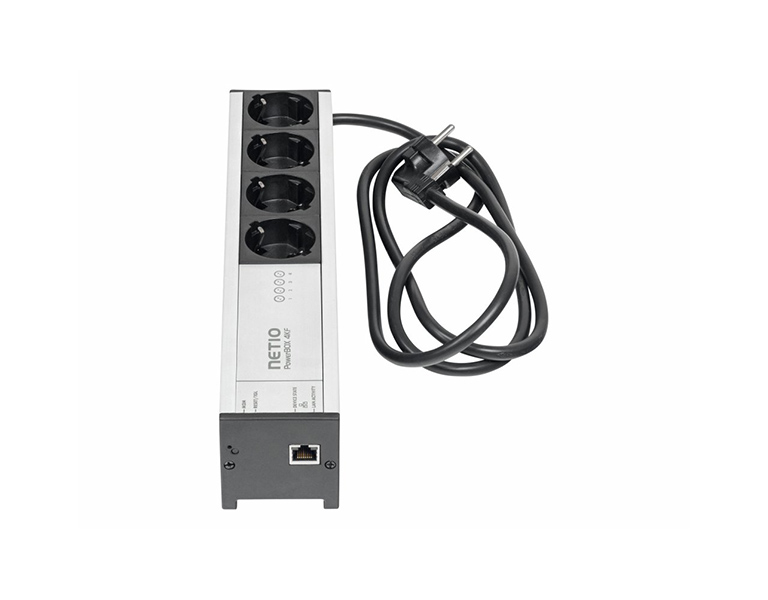

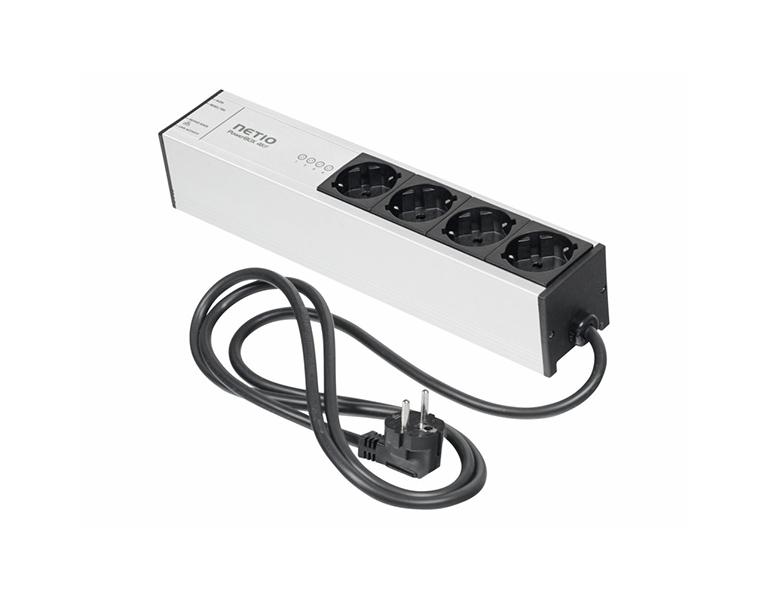

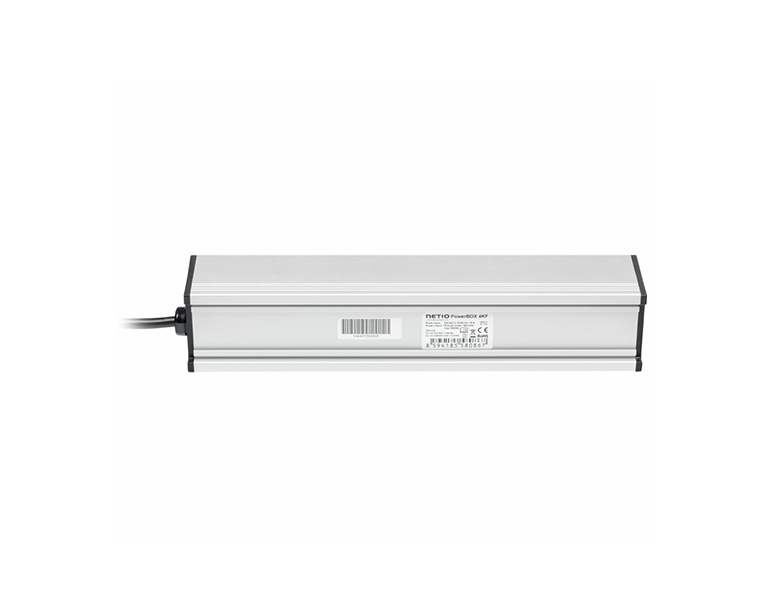

PowerBOX 4KF is a LAN controlled power strip with 4 outputs. Each output can be switched off and on over the web, NETIO cloud service, or with a mobile app.
Open API enables integration into 3rd party systems using a wide range of protocols (http JSON, Modbus/TCP, SNMP, MQTT, Telnet and more).
Power consumption (A, W, kWh, TPF, V, Hz) is measured on each power output separately with high precision.
Each of four power sockets can be independently controlled from the product web interface (switched on/off or power-cycled). To switch the outputs on in a sequence, a power-up delay interval can be configured for each output.
Electrical parameters are measured with high accuracy at each output individually (A, W, kWh, TPF, V, Hz).
The NETIO Mobile2 app controls each output individually over LAN (local network) or NETIO Cloud.
NETIO Cloud is a SSL-secured service for controlling multiple devices from anywhere (1 screen for controlling 100 outputs).
Open API allows controlling the outputs over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more).
The Scheduler function switches outputs on and off at configured times. It works locally, even without Internet connection.
AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as Neets, Crestron, Control4, RTI, Savant and more.
Features:
• 4x output (electrical socket)
• Each output can be switched on and off individually
• Electrical measurements (A, W, kWh, TPF, V, Hz)
• Open API (10 protocols)
• ZCS – Zero Current Switching
• Service: NETIO Cloud
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Specifications | |
Power | Power input: Electrical plug + 1.6m cable Power output: 4x electrical socket Each output: On/Off (SPST-NO relay, IOC) ZVS (Zero Voltage Switching): Yes Internal consumption: 1-2 W |
Interfaces | LAN 10/100 Mbps (RJ45) LED indicators in the RJ45 jack |
Electrical Measurements | 4x Current [A] 4x Consumption [kWh] 4x Power [W] 4x TPF (True Power Factor) 4x Phase [°] Frequency [Hz] Voltage [V] Accuracy: <1% (25 °C) |
Protection | IP30 |
Temperature range | -20°C to +75°C |
Norms | 1999/5/EC, 2006/95/EC, EN 62368, EN 60950-1, EN 62368, EN 50581:2012, EN 61000 |
Package contents | NETIO PowerBOX 4KF Quick Installation Guide |
