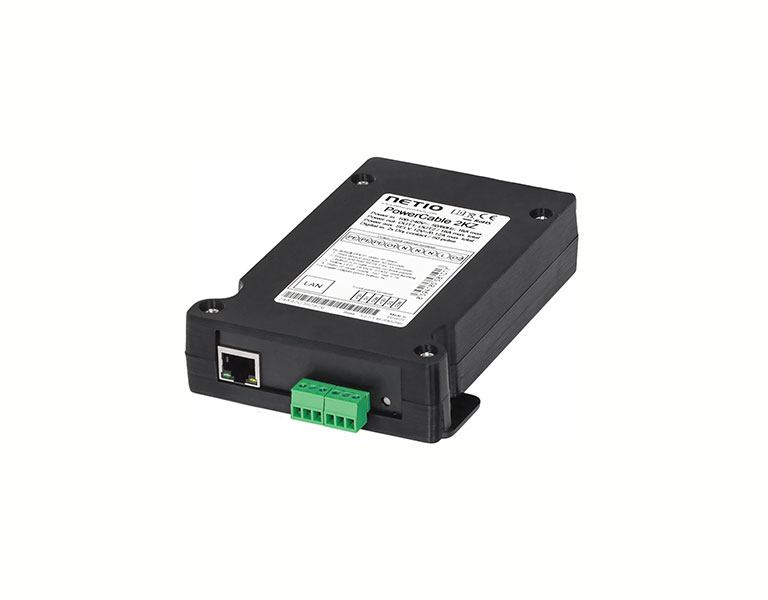

NETIO PowerCable 2KZ is a flat PDU (Power Distribution Unit) with LAN & WiFi connectivity. PowerCable 2KZ can switch & meter 2 power outputs, 2x DI (Digital Input) can read state of external detectors (door contact, relay outputs)

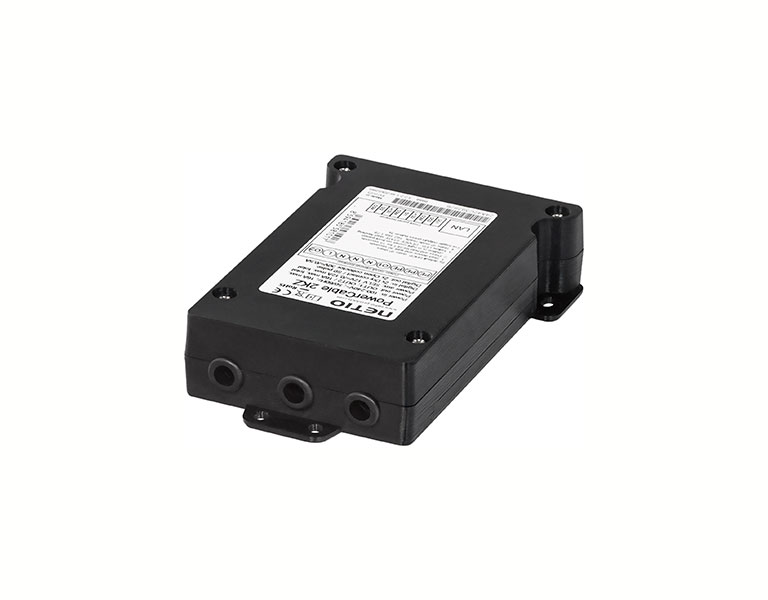

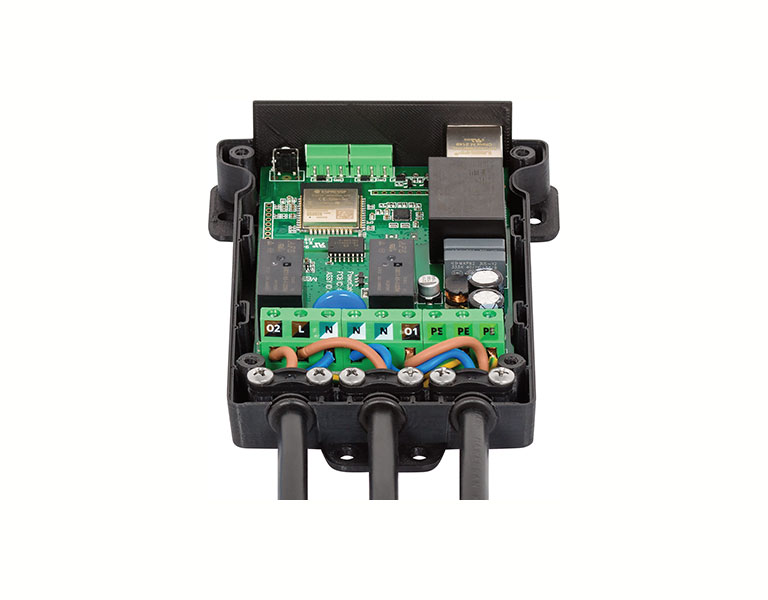

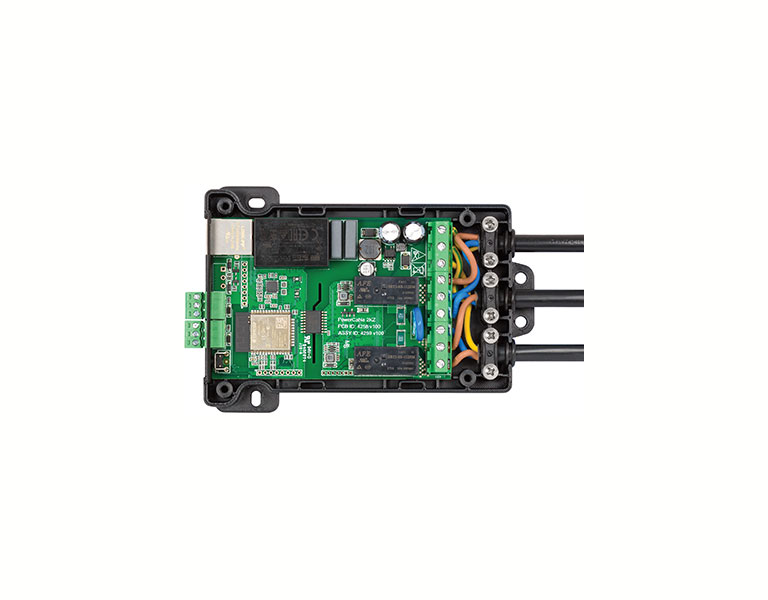

NETIO PowerCable 2KZ we call “flat PDU” because it can be installed behind TV, under double ceiling or to similar limited space. Flat PDU is delivered without power cables, user have to install 2 or 3 power cables to the terminal block inside plastic housing with using screw driver.

Small PDU is connected to LAN via RJ45 (Ethernet) or WiFi. Both power outputs are metered and can be individually switched On/Off (restarted).

Both power outputs individually measures power consumption (A, kWh, TPF, W, V, Hz) and switching On/Off (ZCS). Each output can be switched manually over the web, the NETIO Cloud service, or with a Mobile App (Locally or via NETIO Cloud).

DI (Digital Inputs) with 4-byte pulse counters can be used to connect momentary switches (dry contact) or S0 outputs of electricity, water or similar meters.

PDU supports local Ping & Power WatchDog and Scheduler functions.

Features:
• 2x Power Output (230V/16A) with relays (ZCS)
• 2x Digital Input (dry contacts) with S0 counters
• Methods for controlling each output
- WEB browser
- Mobile app: NETIO Mobile 2 (LAN or WiFi)
- NETIO Cloud
- Scheduler
- Watchdog (Power & Ping)
- Rules & Conditions (based on DI)
- Open API (10 protocols)
• ZVS (Zero Voltage Switching)
- The relay is switched when the current crosses zero. This reduces relay wear and allows switching devices with a high inrush current.
• PowerUp State
- Default output state (On/Off/Last state)
• PowerUp Delay
- Delay before switching the output on
• Firmware update over the Web interface
• Scheduler function
- Each output can be switched according to its time schedule (calendar)

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

SPECIFICATIONS
PowerCable 2KZ	Device (terminal block inside) no power cables included
POWER
Power Input	Terminal block (Ø 2.5mm), 100-240VAC (50/60Hz) - max 16A
Each Output	Metering + On/Off (SPST-NO relay)
Internal consumption	1-2W
INTERFACE
LAN	10/100 Mbps (RJ-45)
WiFi	2,4 GHz (internal antenna)
Digital Input	2x DI, 12V power (100mA)
Load	Defaults button (on the pannel)
ELECTRICAL MEASUREMENTS
Electrical measurements	Yes (2 channels)
2x current [A], 2x consumption [Wh], 2x Power [W], 2x TPF (True Power Factor)
2x Phase [%], 2x Reverse Energy [Wh], Frequency [Hz], Voltage [V]
GENERAL
Package contents	- NETIO PowerCable 2KZ - QIG (printed Quick Installation Guide)

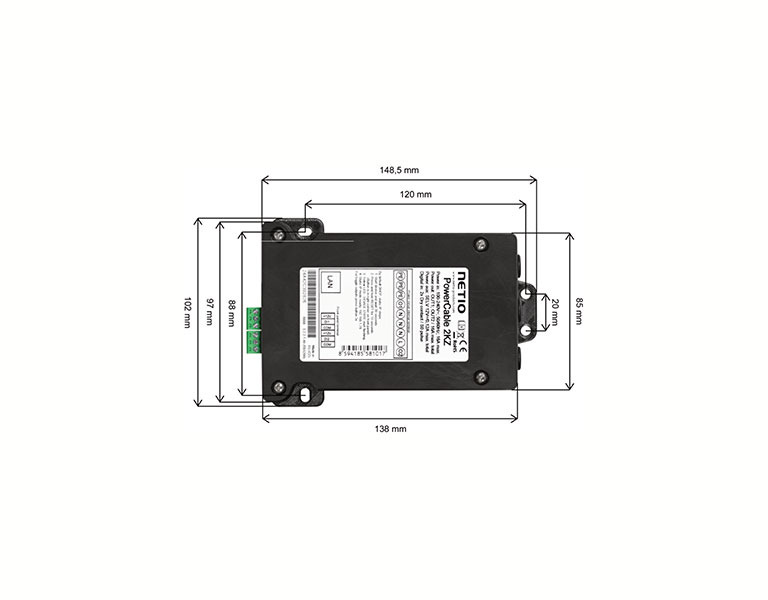

Dimensions / Weight	- PowerCable 2KZ: 102 x 32 x 149 mm - Package: 125 x 73 x 204 mm/0.2 kg
OPERATING CONDITIONS
Temperature	-20 °C to +55 °C
Usage	For indoor use only (IP30)
Standards/Norms	EN 62368, EN 60950, EN 61000, EN 50581
