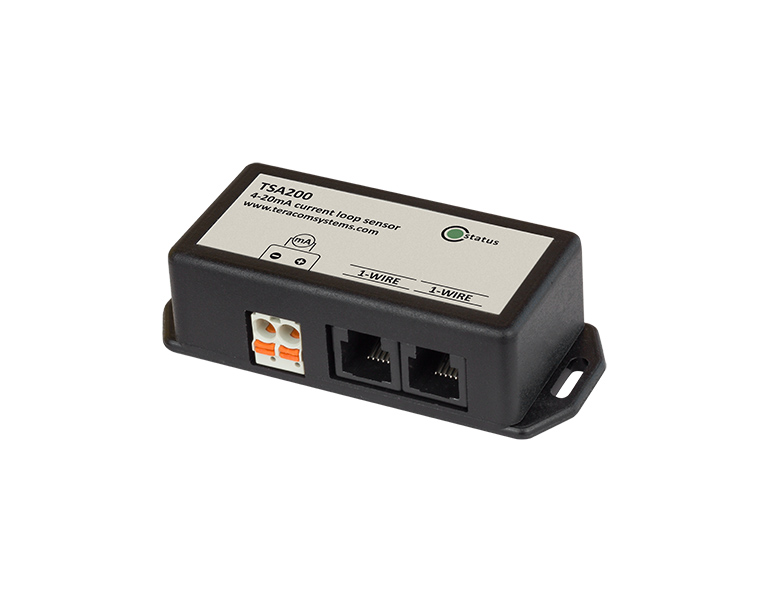

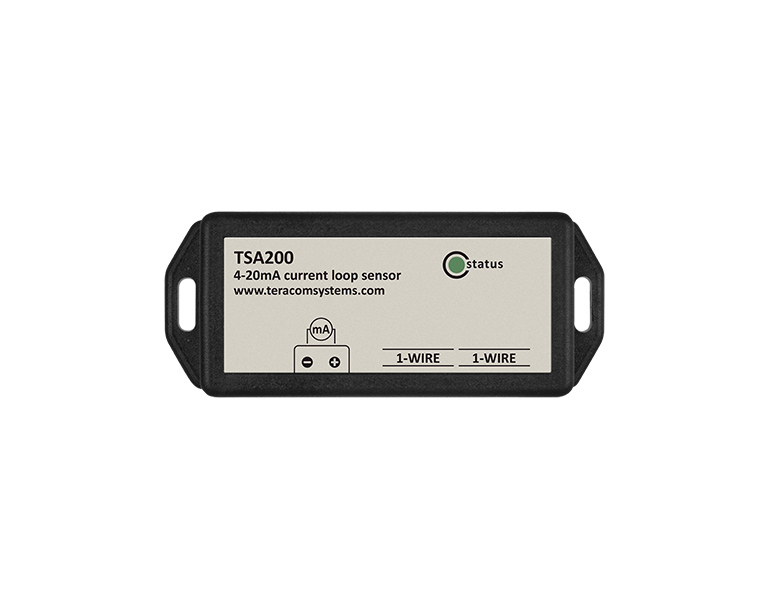

Teracom TSA200 - 4-20mA current loop sensor
TSA200 is 1-Wire current loop transmitter with 0-20mA/4-20mA input range. The current loop input is galvanically isolated from the interface.
The device communicates over a 1-Wire bus. Each sensor has a unique 64-bit serial code. This allows multiple sensors to be connected on the same 1-Wire bus.

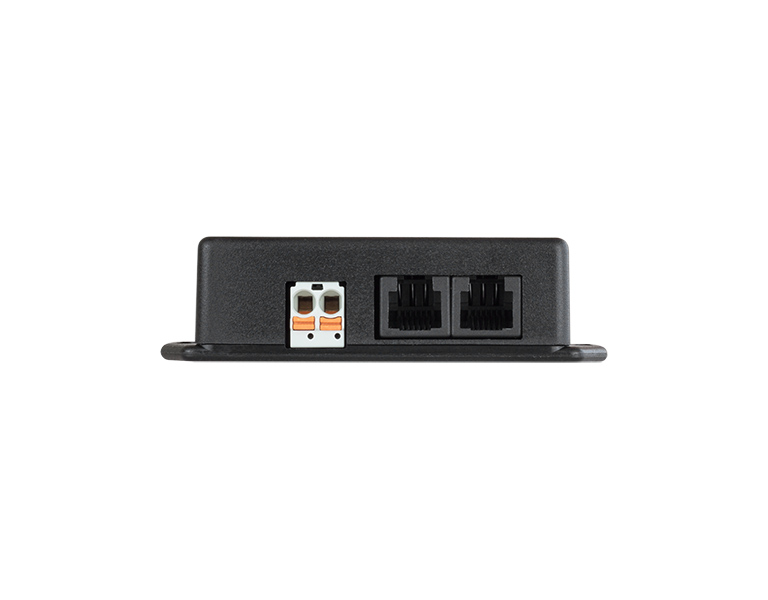

The 1-Wire current loop transmitter TSA200 has two RJ11 connectors for a daisy chain of multi-sensors systems.
TSA200 can be connected to almost any industrial sensor with a 0-20/4-20mA output. Output readings in mA can be converted to other units, using offset and multiplier of the controller.
The sensor can be used for measuring of electrical and non-electrical parameters – liquid levels, air pressure, gas concentration, illumination, acidity (pH), etc.
TSA200 is a passive device, for some applications external DC power supply will be needed – typically 12/24/36VDC.
Features:
• Galvanic isolated current loop input from 1-Wire interface
• 10-bit resolutions
• Excellent long-term stability
• IP30 ingress protection
• Very low current consumption
• Unique 64-bit serial number for multi-sensors support
Applications:
• Air pressure monitoring for industrial processes
• High-temperature monitoring in bakeries and dryers
• Heating, ventilation and air conditioning (HVAC) systems
• High current monitoring with split core transducers for industrial processes
The 1-Wire current loop can be used with:
• Ethernet IO module TCW241
• Ethernet data logger TCW220
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Supply voltage range (1-Wire bus) | 4.5 to 5.5 VDC |
| Maximum supply current (1-Wire bus) | 40 mA |
| Input DC current range | 0 to 20 mA |
| Resolution | 0.01 mA |
| Accuracy | ± 2% |
| Dimensions | 85 x 35.1 x 23.5 mm |
| Operating temperature range | 0 to +40 °C |
| Operating humidity range | 0 to 70 %RH |
| Isolation voltage | 1000 VDC |
