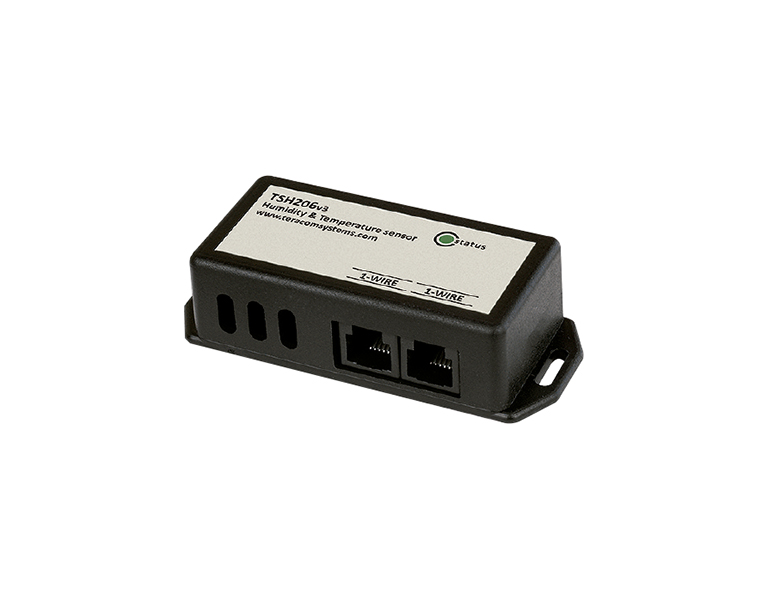

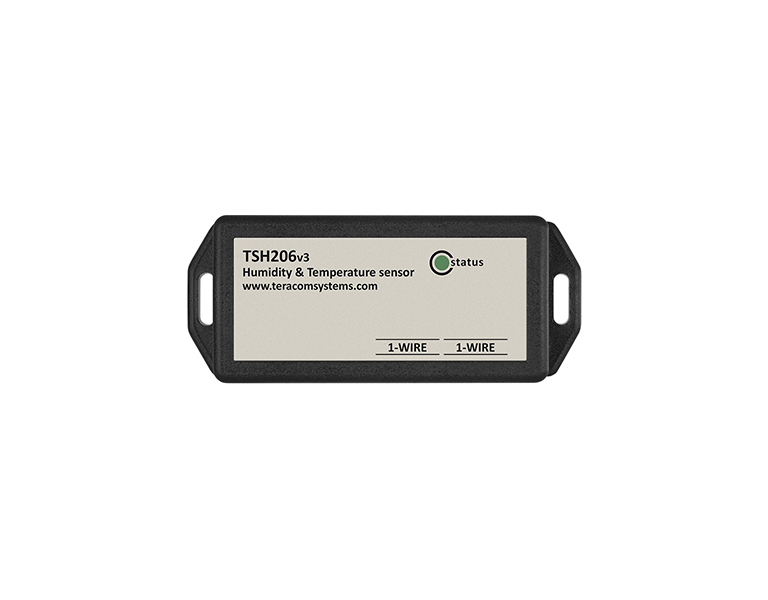

Teracom TSH206V3 - Humidity and Temperature Sensor with a 1-Wire Interface
TSH206v3 is humidity and temperature sensor with a 1-Wire interface. The device integrates basic elements plus signals processing and provide a fully calibrated digital output. A unique capacitive element is used for measuring relative humidity while the temperature is measured by a band gap sensor. Both sensors are seamlessly coupled to a 12-bit analog to digital converter. This results in superior signal quality and fast response time. The sensor is delivered with one meter cable with RJ11 connectors. A 19” rack mount kit can be ordered separately.
Features:
• 3.0% relative humidity accuracy
• 12 bit resolution for humidity measurements
• 14 bit resolution for temperature measurements
• Easy 19” cabinets installation
• Excellent long-term stability
• Unique 64-Bit serial number for multi-sensors support
Applications:
• Humidity and temperature monitoring for facilities, vineyards, greenhouses, etc.
• Server room and data centers humidity and temperature monitoring
• Environmental quality monitoring and assessment
• Humidity and temperature monitoring in building management systems (BMS)
The digital humidity sensor can be used with:
• Ethernet IO module TCW241
• Ethernet data logger TCW220
• Temperature and humidity data logger TCW210-TH
• 4G LTE universal IO module TCG140-4
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | ||||||
| Value | Units | Remark | Value | Units | Remark | |
| Operating Range | 10 to 90* | %RH | non-condensing | –20 to +60* | °C | |
| Tolerance typ. | ±3.0 | %RH | 20 to 80 %RH | ±0.4 | °C | -10 to +60°C |
| Tolerance max. | ± 5.0 | %RH | 10 to 90 %RH | ±1.0 | °C | -20 to +60°C |
| Long term drift typ. | ±0.25** | %RH/year | 20 to 80 %RH | ±0.05** | °C/year | -10 to +60°C |
| Resolution | 0.1 | %RH | 0.1 | °C | ||
| Power supply/consumption | 4.0 to 5.5 | VDC | From 1-wire bus | 5 | mA | |
| Ingress protection | IP20 | |||||
| Dimensions | 85 x 35.1 x 23.5 mm | |||||

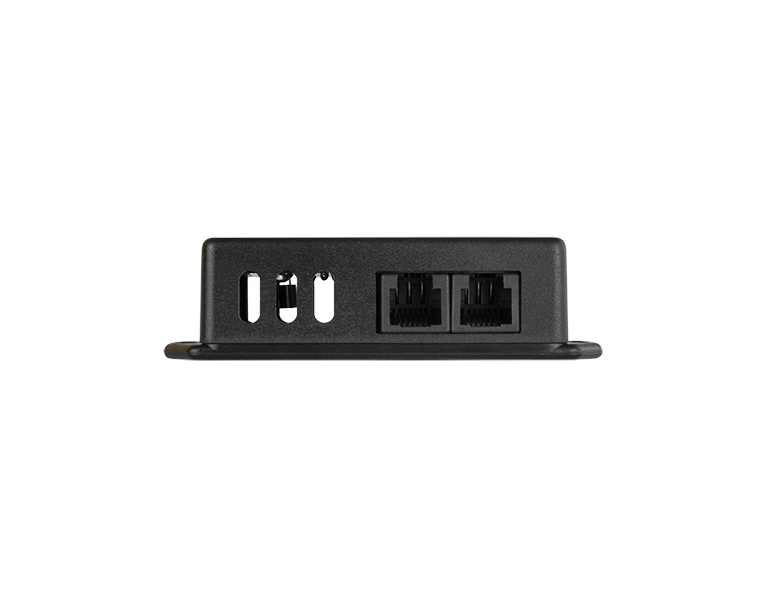

| Connectors | Two RJ-11 in parallel | |||||
* Recommended operating range is 20% to 80% RH (non-condensing) over -10°C to +60°C. Prolonged operation beyond these ranges may result in a shift of sensor reading, with slow recovery time.
** Higher drift values might occur due to contaminant environments with vaporized solvents, out-gassing tapes, adhesives, packaging materials, etc.
