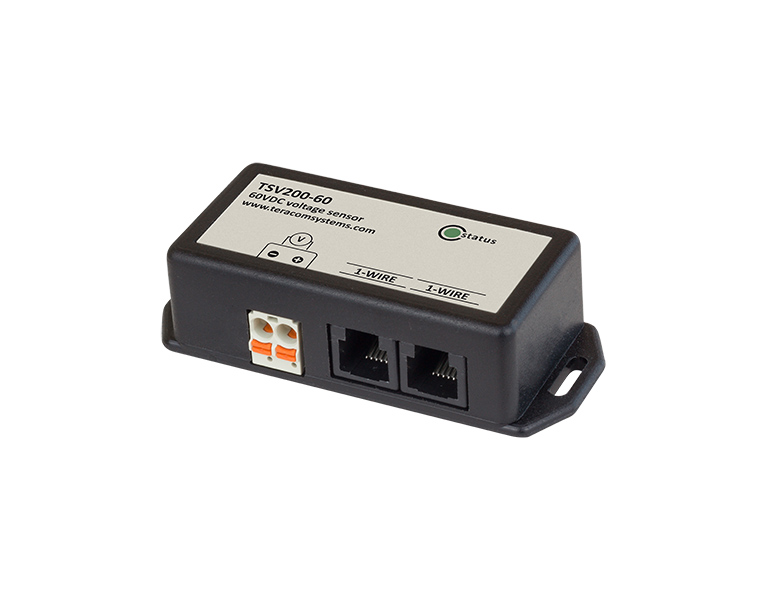

Teracom TSV200-60I 1-Wire voltage sensor
TSV200-60i is a 1-Wire voltage sensor with digital output and galvanic isolated input. It provides a low-cost option for DC voltage monitoring. Embedded digital signal processing in multiprocessors system provides a calibrated digital output with 10-bit resolution.
The sensor is suitable for power measurements of telco systems (-48VDC standard), solar systems, monitoring and control of batteries, industrial automation, etc.
The 1-Wire voltage sensor TSV200-60i communicates over a 1-Wire bus. Each sensor has a unique 64-bit serial number, which allows a few sensors to be connected on the same 1-Wire bus.

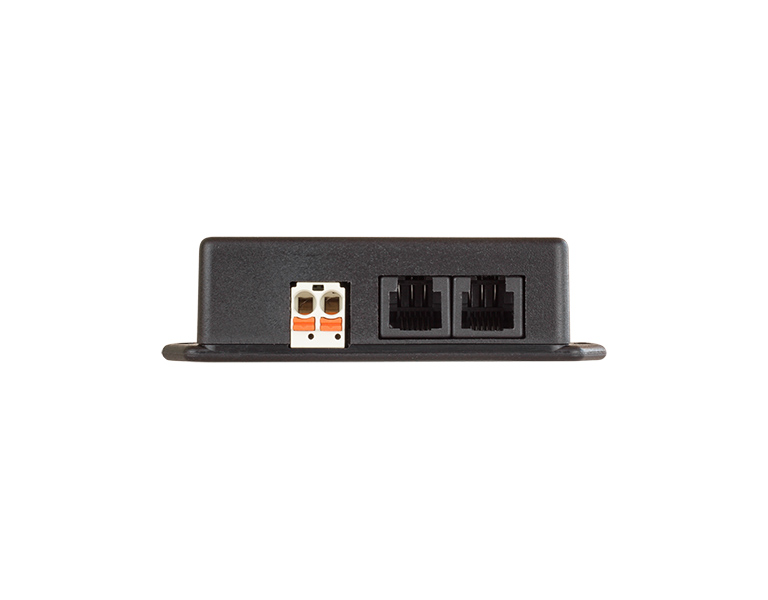

TSV200-60i has two RJ11 connectors for an easy daisy chain of multiple sensor systems. The measured voltage is applied to screwless terminal blocks.
Features:
• Galvanic isolated DC voltage input from 1-Wire interface
• 10-bit resolutions
• Excellent long-term stability
• IP30 ingress protection
• Very low current consumption
• Unique 64-Bit serial number for multi-sensors support
Applications:
• Batteries charge/discharge process monitoring
• Galvanic isolated voltage monitoring for industrial processes
• Solar panel voltage monitoring
• Voltage measurements in telecommunication (telco) systems
The sensor can be used with:
• Ethernet IO module TCW241
• Ethernet data logger TCW220
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Supply voltage range (1-Wire bus) | 4.5 to 5.5 VDC |
| Maximum supply current (1-Wire bus) | 40 mA |
| Input DC voltage range | 0 to 60 VDC |
| Resolution | 0.1 VDC |
| Accuracy | ± 2% |
| Isolation voltage | 1000 VDC |
| Dimensions | 85 x 35.1 x 23.5 mm |
| Operating temperature range | 0 to +40 °C |
| Operating humidity range | 0 to 85 %RH (non-condensing) |
