Overview
mFi® is a Machine-to-Machine management system from Ubiquiti Networks®. mFi hardware is managed and monitored from the mFi Controller software. The mFi Controller allows you to create rules that trigger actions based on data from your mFi sensors. For example, motion detection can turn a light on, or a high temperature reading can trigger a fan. The mFi platform is compatible with third-party devices, making the options unlimited!
Features
Plug and Play Installation
Use standard Ethernet cable to connect machines and sensors. Use Wi-Fi to seamlessly connect mFi nodes to your IP network. Unlimited device scalability allows you to add mFi devices as needed.
Powerful Functionality
Create powerful relationships between sensors, machines, and powered devices.
Mobile Support
The mFi iOS application is available for iPhone and iPad. Other mobile devices can connect to a customized mobile version of the mFi Controller interface using a web browser.
Sophisticated User Experience
From auto-detection of machines through intuitive and powerful rule creation, the mFi Controller transforms a machine network into an automated symphony.
Software
The mFi Controller software is designed to work with the Ubiquiti Networks mFi product line and third-party devices. The software interface design is based on the popular and easy-to-use UniFi® software interface. The mFi Controller software allows you to manage your mPort, mPower, sensor, in-wall, and third-party devices from your web browser.
Features
Machine Auto Detection
The mFi Controller software will auto-detect and provision mFi devices and connected machines on the machine network.
Advanced Analytics
Powerful graphing with user-defined views provides in-depth analysis of the machine network.
Events and Alerts
User-defined event recording and alerts provide feedback on machine network activity.
Remote Control Capability
Remotely control the power and functionality of the machine network.
Remote Terminal Support
Terminal command windows support unlimited machine network scalability through a single interface.
System Requirements:
• Microsoft Windows 7/8, Windows Vista, Mac OS X, or Ubuntu Linux 12.04 or later 64-Bit Operating System
• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft Internet Explorer 8 (or higher)
• Java Runtime Environment 1.6 (1.6.0_26 or higher recommended)
• Flash Player 10
• Minimum 2 GB RAM is highly recommended
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Specifications | |
Dimensions | 134.5 x 134.5 x 30.5 mm |
Weight | 136 g |
RF Immunity | 10V/m at 80 MHz to 2 GHz |
Warm Time | 2 Minutes |
Angle of View | 360° |
Cone of Detection | 110° Wide Angle |
Ports | (1) mFi RJ45 Port |

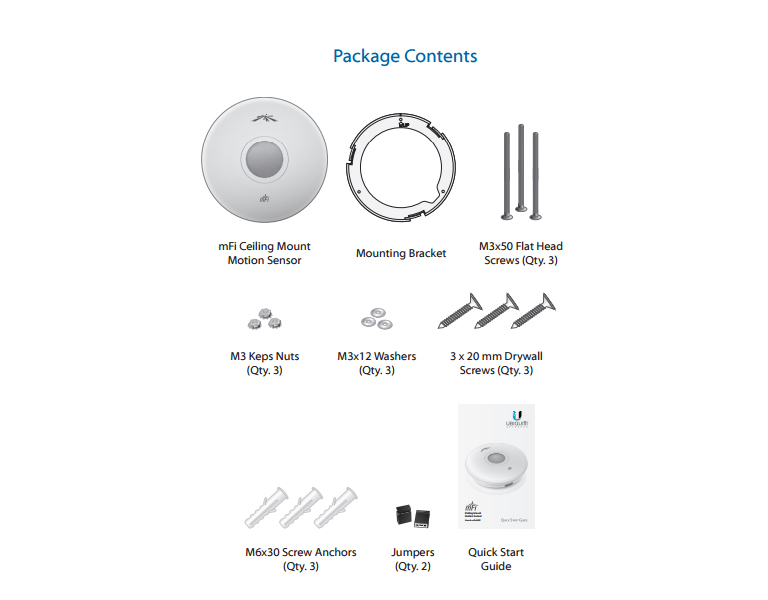

Mounting | Ceiling-Mount Bracket (Included) |
Mounting Height | Up to 4.5 m |
Operating Temperature | 0 to 50° C |
Operating Humidity | 5 to 95% Noncondensing |
