Netio POWERCABLE 2PZ Power Distribution Unit
NETIO PowerCable 2PZ is flat PDU (Power Distribution Unit) with LAN connectivity using a RJ45 (Ethernet) or WiFi. Both power outputs can be individually switched On/Off (restarted) on the device website, from Mobile App or NETIO Cloud (web service).

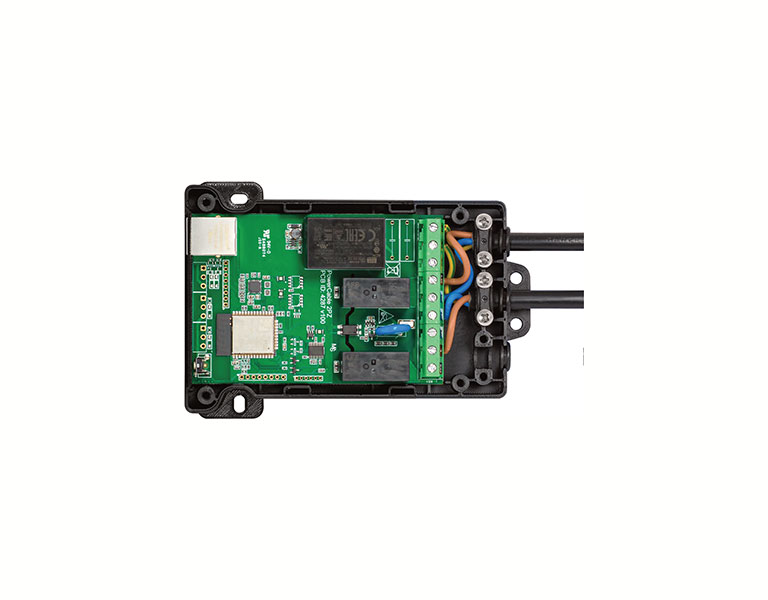

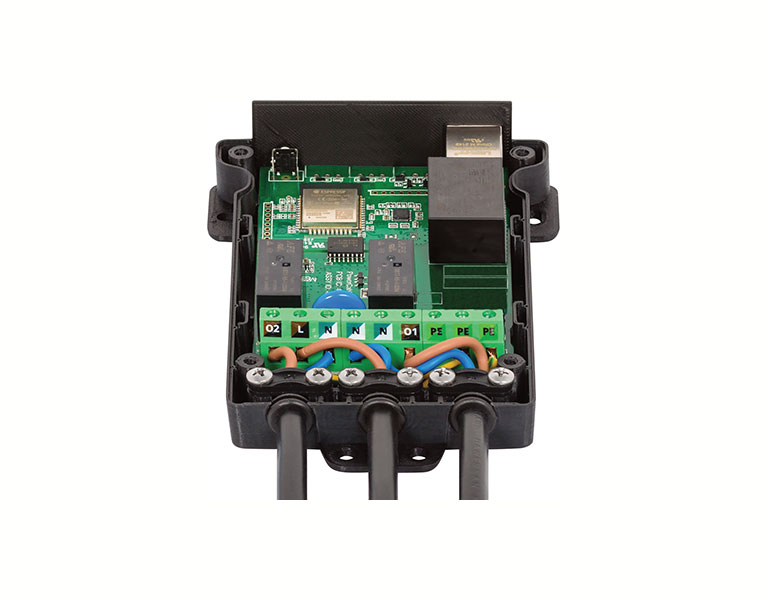

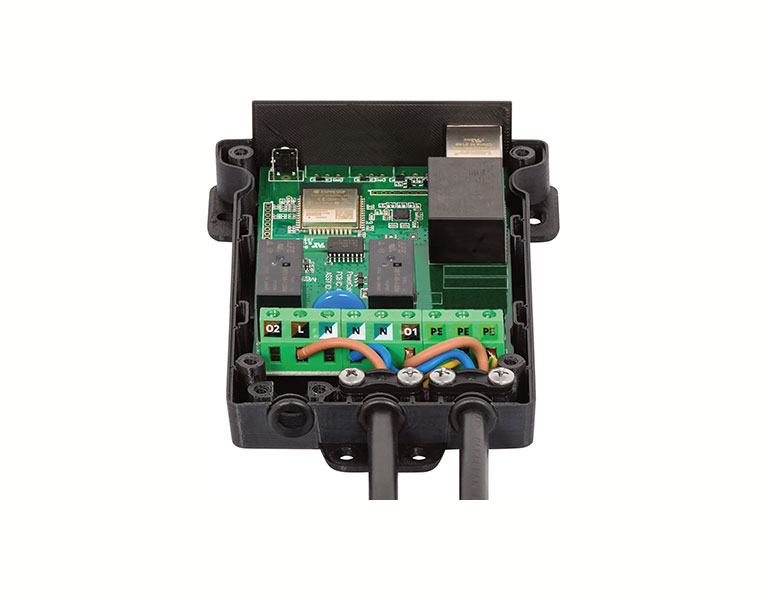

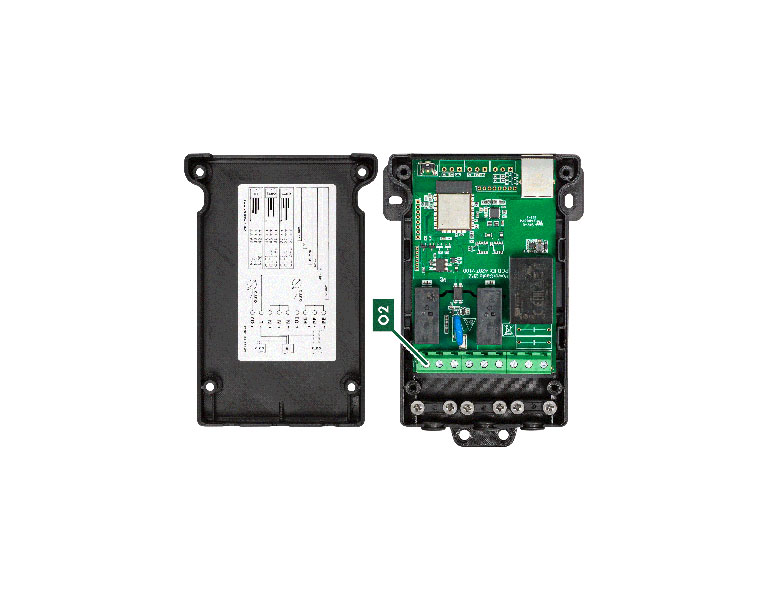

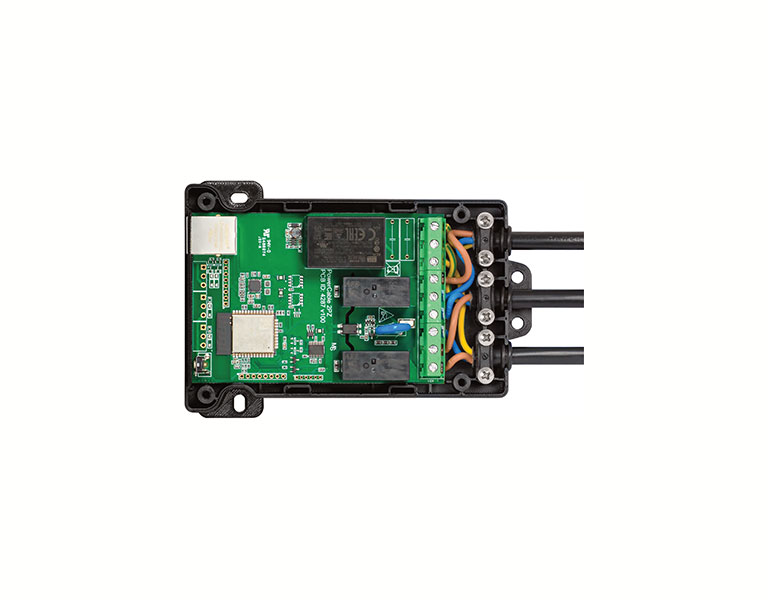

PowerCable 2PZ we call “flat PDU” because can be installed behind TV, under double ceiling or to similar limited space. PowerCable 2PZ is delivered without power cables, user have to install power input and 1 or 2 power output cables to the terminal block inside plastic housing with using screw driver.
PowerCable 2PZ PDU supports Ping WatchDog and week-based Scheduler feature.
Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, XML, SNMP, MQTT, Telnet, ...)
With the NETIO Cloud service, the output(s) can be switched On/Off from anywhere. The NETIO Cloud service, provided for a fee, uses SSL/TLS security and servers in Europe.
Mobile App "NETIO Mobile 2" can be used for remote contol on the same LAN or via NETIO Cloud.
AV drivers make it easy to connect NETIO sockets to professional Audio/Video control systems such as RTI, ELAN, SAVANT, BrightSign, Crestron, Control4 etc.
Features:
• 2x Power Output (230V/16A) with relays (ZVS)
• Methods for controlling each output
- WEB browser
- Mobile app: NETIO Mobile 2 (LAN or WiFi)
- NETIO Cloud
- Scheduler
- Watchdog (Power & Ping)
- Open API (10 protocols)
• ZVS (Zero Voltage Switching)
- The relay is switched when the voltage crosses zero. This reduces relay wear and allows switching devices with a high inrush voltage. PowerUp State: Default output state (On/Off/Last state)
• PowerUp Delay
• Firmware update over the Web interface
• Scheduler function
• Open API (protocols)
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| SPECIFICATIONS | |
| PowerCable 2PZ | Device (terminal block inside) no power cables included |
| POWER | |
| Power Input | Terminal block (Ø 2.5mm), 100-240VAC (50/60Hz) - max 16A |
| Each Output | On/Off (SPST-NO relay) |
| Internal consumption | 1-2W |
| INTERFACE | |

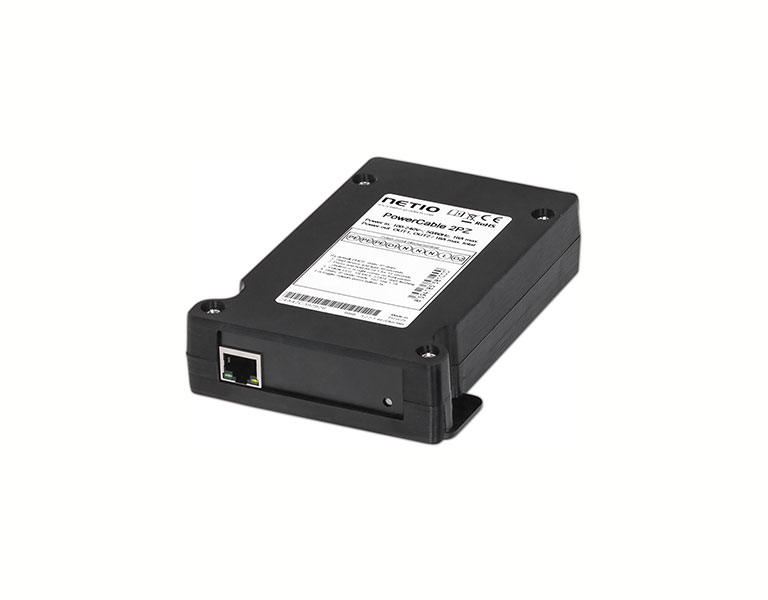

| LAN | 10/100 Mbps (RJ-45) |
| WiFi | 2,4 GHz (internal antenna) |
| Load | Defaults button (on the pannel) |
| ELECTRICAL MEASUREMENTS | |
| Electrical measurements | No |
| GENERAL | |
| Package contents | - NETIO PowerCable 2PZ - QIG (printed Quick Installation Guide) |

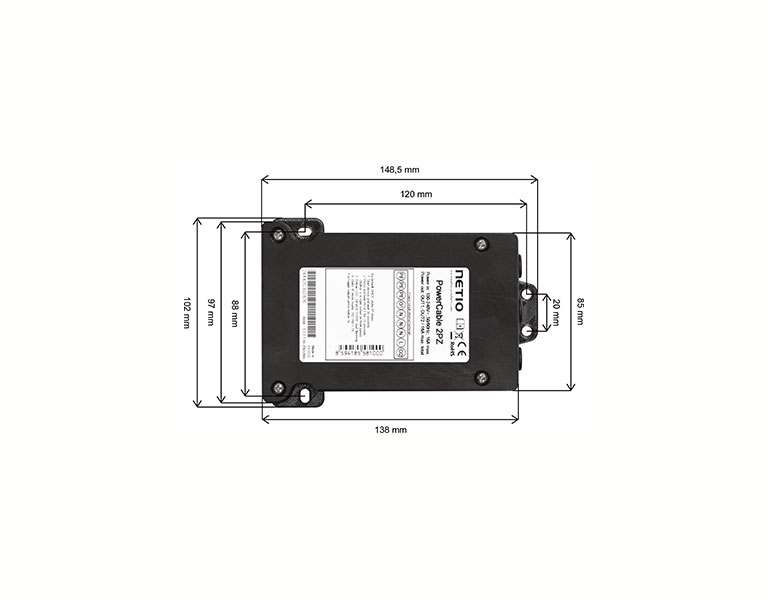

| Dimensions / Weight | - PowerCable 2PZ: 102 x 32 x 149 mm - Package: 125 x 73 x 204 mm/0.2 kg |
| OPERATING CONDITIONS | |
| Temperature | -20 °C to +55 °C |
| Usage | For indoor use only (IP30) |
| Standards/Norms | EN 62368, EN 60950, EN 61000, EN 50581 |
