Teracom TCW122B-CM - Remote environmental monitoring, OPEN BOX

Product Code:
TCW122B-CM-OB
Manufacturer Teracom
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Teracom TCW122B-CM - Remote environmental monitoring, OPEN BOX

.:The product has an open package, is in good condition and has a different Serial Number on the box and another on the device - Full Pack.
Covered by 12 months full factory warranty:.

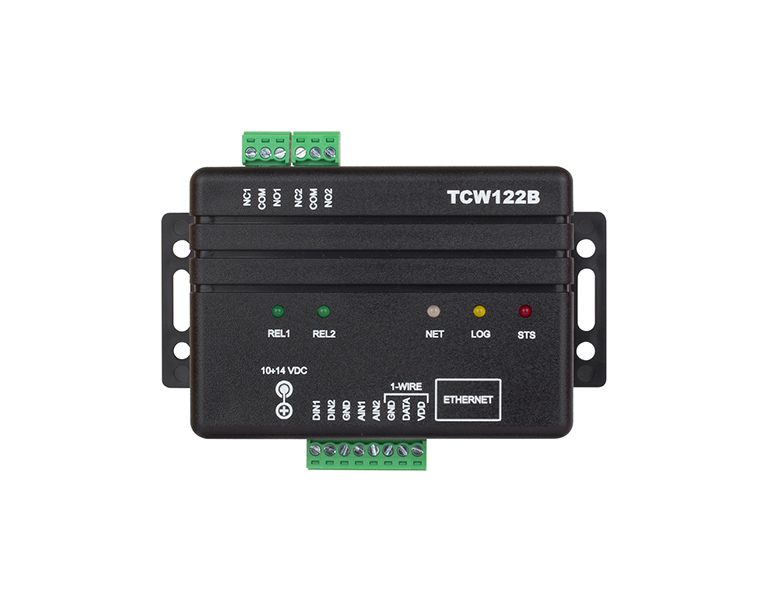

TCW122B-CM is a remote IO module for environmental monitoring and control, designed to work in Ethernet networks. It can be managed by WEB interface, SNMP programs, and user applications.
Remote IO module has two relays with normally open and normally closed contacts. Both relays can be activated locally – from the status of monitored parameters or remotely – by WEB interface, SNMP managers, and HTTP/XML API commands.
TCW122B-CM support 1-Wire interface. Up to two temperature or humidity-temperature sensors can be connected. Along with ambient parameters, two analog voltages and status of two digital inputs can be monitored. For every parameter e-mail and/or SNMP trap for any alarm condition can be sent.
The controller can be used as a standalone device or as a part of data acquisition (SCADA) systems.

*Caution. Teracom's Ethernet Controllers do not include power supply in their packaging and in case of purchase, you will need to order a power supply separately if you do not already have a compatible power supply.

Features:
• Smart temperature and humidity monitoring and control
• Password protected web based configuration and control
• 1-Wire interface for up to 2 temperature sensors
• 2 analog inputs with 0 to 60VDC range
• 2 digital inputs with “dry contact” and “logic level” modes
• 2 relay outputs with NO and NC contacts
• E-mail sending for alert conditions
• SMTP with authentication (SSL/TLS is not supported)
• SNMP v.1
• SNMP traps sending for alert conditions
• HTTP and XML API commands
• Remote firmware update

Applications:
• Data centers remote environmental monitoring and control
• Temperature and humidity control in food and drugs storages
• Remote control of electric devices
• Home and office alarm systems
• Industrial process automation
• Control and management of small to medium networks

Supported sensors:
• 1-Wire temperature sensor TST100
• 1-Wire temperature sensor TST103
• 1-Wire humidity and temperature sensor TSH202
• 1-Wire humidity and temperature sensor TSH206

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months
Specifications
Supply voltage, VDC 12±2
Maximum current (with both relays ON),  200 mA
Weight 110 g
Dimensions 107 mm x 72 mm x 32 mm
Operating temperature range -20 to 55°C
Operating relative humidity range 5 to 85%RH (non-condensing)
Minimum high-level input voltage for digital inputs +2.5 VDC
Maximum low-level input voltage for digital inputs +0.8 VDC
Maximum input voltage for digital inputs +5.5 VDC
Supply voltage for the 1-wire bus (VDD) 5.3 ± 0.2 VDC
Maximum output current for the 1-wire bus (VDD) 0.2 A
Analog inputs range 0 to 60 VDC
Maximum switchable current for relay contacts 3 A
Maximum switchable voltage for relay contacts 30/24 VAC/VDC
