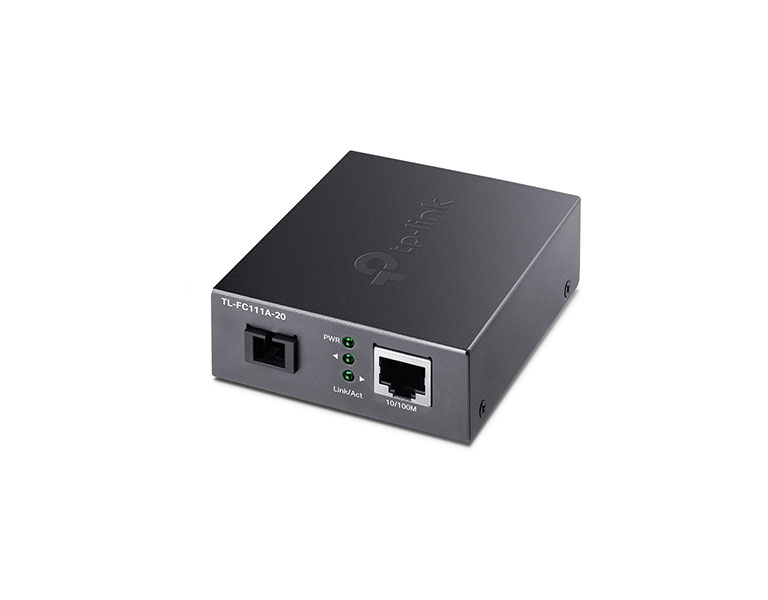

TP-LINK TL-FC111A-20 V1 10/100 Mbps WDM Media Converter
|
• Complies with 802.3u 10/100Base-TX, 100Base-FX standards |
What This Product Does
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm
and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Standards | IEEE 802.3, IEEE 802.3i, IEEE802.3u |
| LED | PWR, Link/Act |
| Connector | 1 SC fiber optic; 1 RJ45 jack |
| Twisted-Pair | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
| Fiber | 9/125 μm single-mode fiber (≤20 km) |
| Wave Length | 1550 nm TX, 1310 nm RX |
| Power Supply | 5 V/0.6 A Power Adapter |
| Dimensions | 94.5*73*27 mm |
| Environmental and Physical Specifications | |
| Operating Temperature | 0˚C to 50˚C |
| Storage Temperature | -40˚C to 70˚C |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
