Ubiquiti UACC-OM-SM-1G-S-20 U Fiber, Single-Mode Module, 1G, BiDi, 20-Pack
Product Code:
UACC-OM-SM-1G-S-20
Manufacturer Ubiquiti
Sales price:
270,00 €(Includes 24% VAT)
Sales price without TAX:217,74 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews

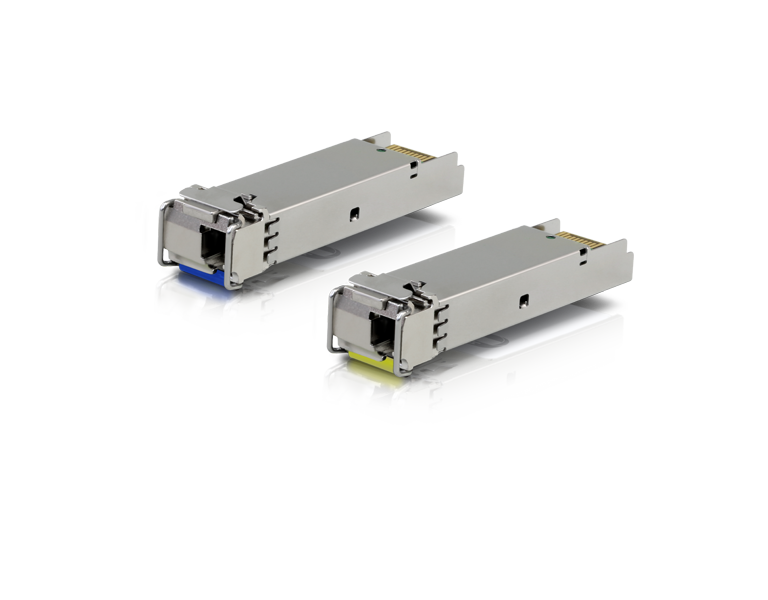

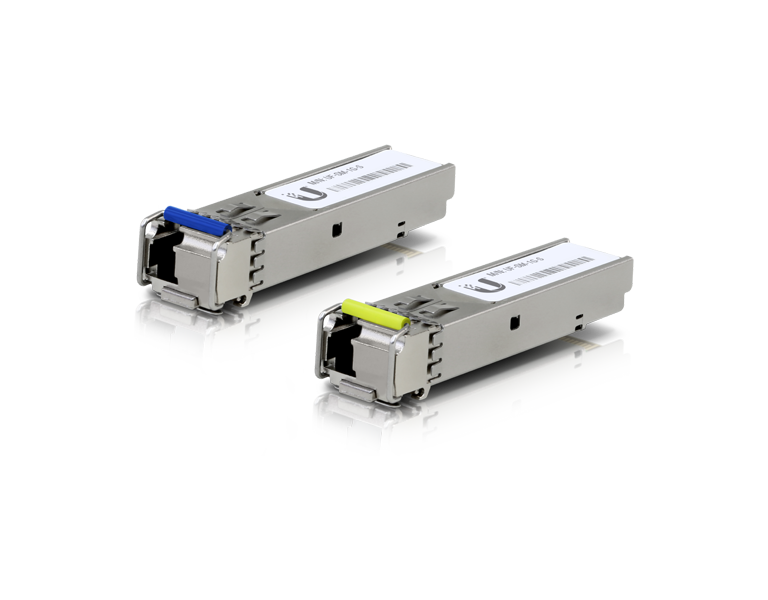

Ubiquiti UACC-OM-SM-1G-S-20 U Fiber, Single-Mode Module, 1G, BiDi, 20-Pack
The 1 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 1.25 Gbps speed over distances up to 3 kilometers.
Features:
• 1.25 Gbps throughput
• Simplex LC connector
• Supports connections up to 3 km
• Supported media: SM Fiber (Fiber cable is not included)
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Supported Media | Single-Mode Fiber |
| Connector Type | (1) LC |
| BiDi | ✓ |
| TX Wavelength | Blue: 1310 nm Yellow: 1550 nm |
| RX Wavelength | Blue: 1550 nm Yellow: 1310 nm |
| Data Rate | 1.25 Gbps SFP |
| Cable Distance | 3 km |
| Transmission speed | 1 Gbps |
| Transfer type | WDM |
| Max. Power Consumption | 0.66W |
| Operating Temperature | 0 to 70° |
| Model Comparison | ||||||
| UF-MM-1G | UF-MM-10G | UF-SM-1G-S | UF-SM-10G | UF-SM-10G-S | UF-RJ45-1G | |
| Supported Media | Multi-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber S | Single-Mode Fiber | Single-Mode Fiber | Copper |
| Connector Type | (2) LC | (2) LC | (1) LC | (2) LC | (1) LC | RJ45 |
| BiDi | ✓ | ✓ | ||||
| TX Wavelength | 850 nm | 850 nm | Blue: 1310 nm Yellow: 1550 nm |
1310 nm | Blue: 1270 nm Red: 1330 nm |
|
| RX Wavelength | 850 nm | 850 nm | Blue: 1550 nm Yellow: 1310 nm |
1310 nm | Blue: 1330 nm Red: 1270 nm |
|
| Data Rate | 1.25 Gbps SFP | 10 Gbps SFP+ | 1.25 Gbps SFP | 10 Gbps SFP+ | 10 Gbps SFP+ | 10/100/1000 Mbps |
| Cable Distance | 550 m | 300 m | 3 km | 10 km | 10 km | 100 m |
