MaxLink MAXPIDIN60F PoE injector, 44-57VDC, 802.3af/at/bt, 55V, 1.1A, 60W, 1xSFP, 1Gbit
Product Code:
MAXPIDIN60F
Manufacturer Maxlink
Sales price:
131,00 €(Includes 24% VAT)
Sales price without TAX:105,65 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews

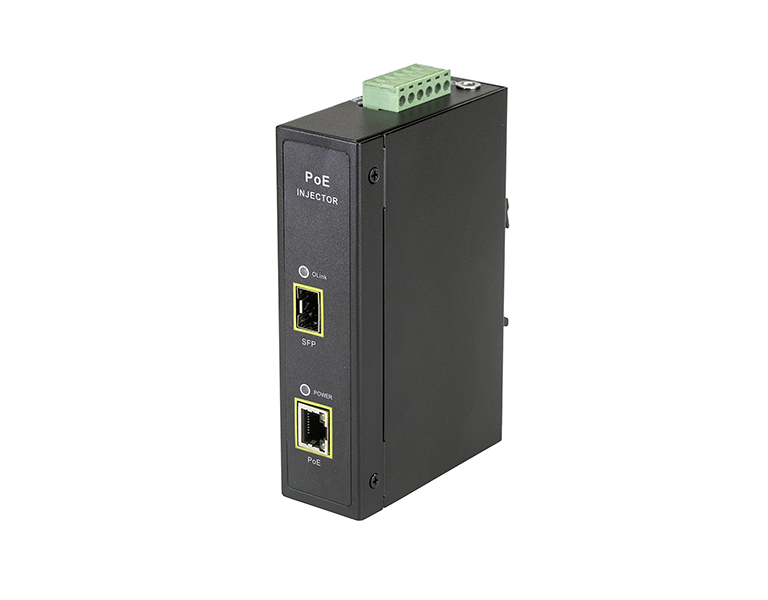

MaxLink MAXPIDIN60F PoE injector, 44-57VDC, 802.3af/at/bt, 55V, 1.1A, 60W, 1xSFP, 1Gbit
MaxLink MAXPIDIN60F is an active DIN rail mounting PoE injector with DC power input from 44 to 57 V and built in power converter. Injector has one POE LAN port output and one SFP port output. The output of this power supply is 1Gbit port with support of the 802.3af/at (55 V) which is dedicated for Wi-Fi, VoIP, or wireless links. The PoE's distribution is on the pins 1, 2, 7, 8 (-), 3, 4, 5, 6 (+). The SFP port is used for data input. Total power is 60 W. The main advantage of this power supply is 6kV (10/700us) overvoltage protection. This PoE injector is best for using in the places where you already have a main power supply such as the solar panels or a high voltage power supply.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| PoE Out standards | 802.3af, 802.3at, 802.3bt |
| PoE Out ports | 1 |
| LED indication | Yes |
| Pin powering | 1,2,7,8 (-), 3,4,5,6 (+) |
| Output Voltage | 55V |
| Output Power / 1port | 60W |
| Ethernet speed | 10/100/1000 Mbps |
| Gigabit LAN | Yes |
| Optical interfaces | (1) 1000Mbps |
| Operating temperature | -40 up to 65°C |
| Weight | 485g |
| Depth | 86mm |
| Width | 35mm |
| Height | 145mm |
| Package Contents | MAXPIDIN60F 1x Manual Ground lug Wire: 16AWG |
There are yet no reviews for this product.
