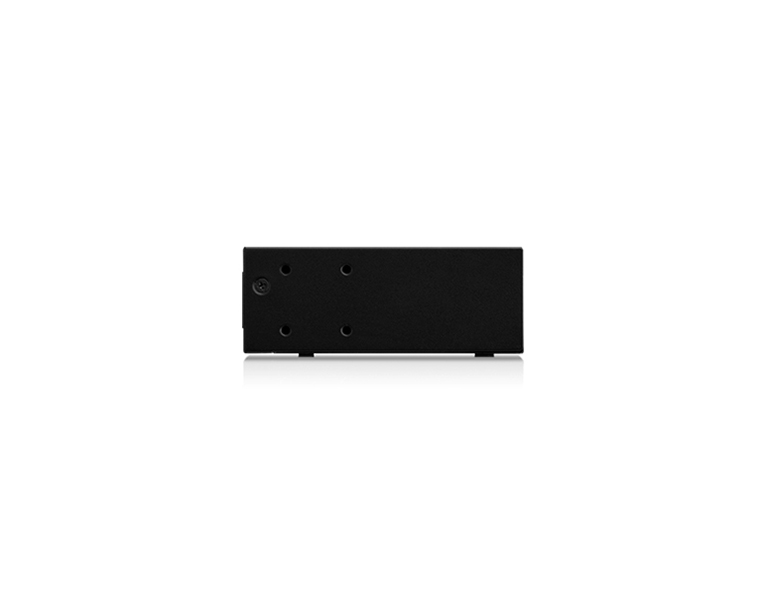

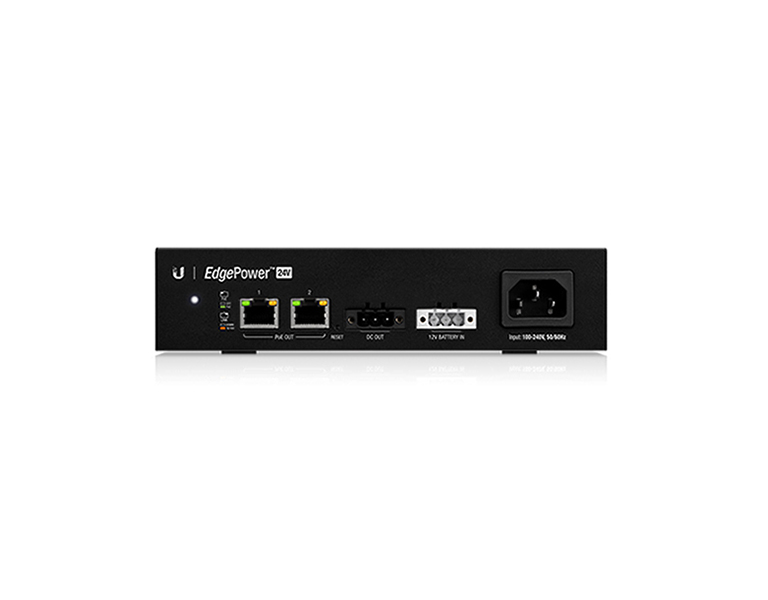

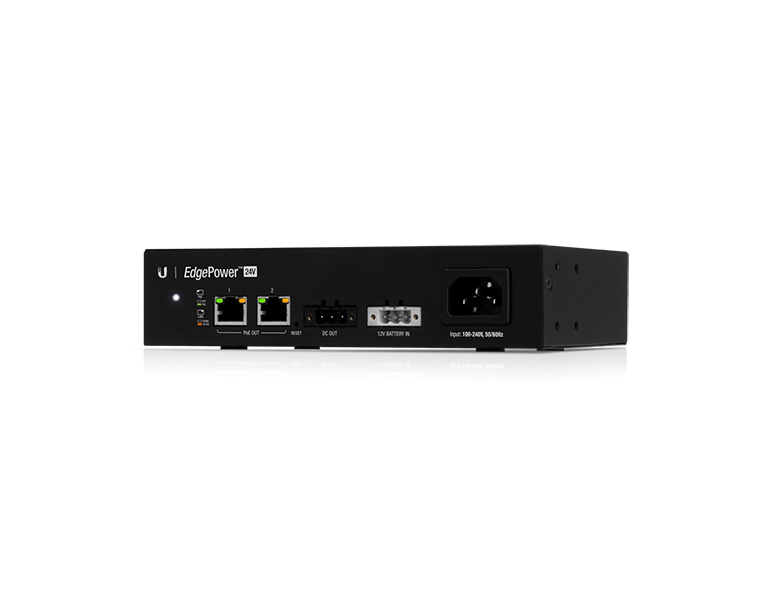

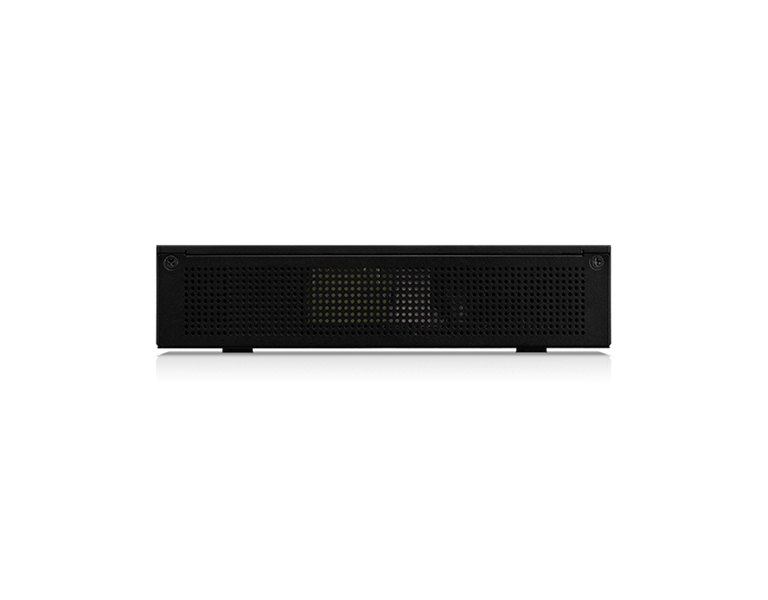

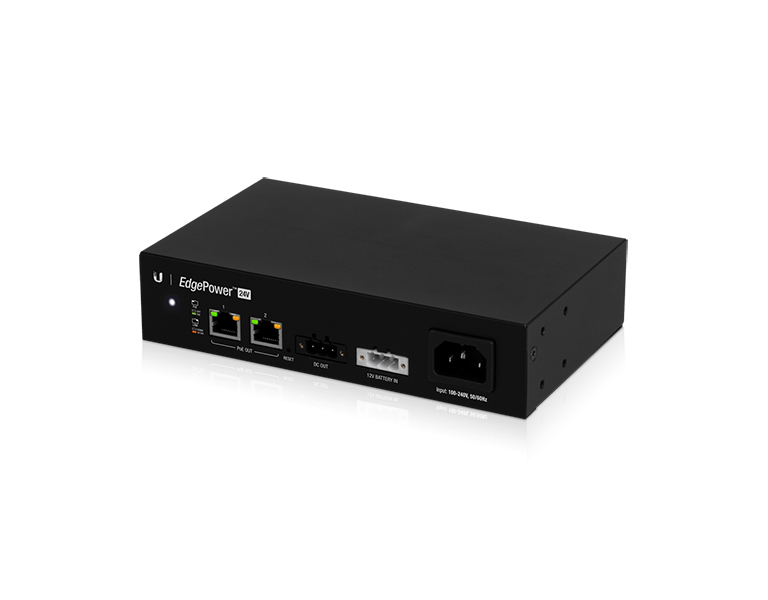

Ubiquiti EP-24V-72W EdgePower 24V, Power Supply with UPS and PoE
Overview
Ubiquiti offers three EdgePower models for the specific requirements of your application:
• EP-54V-150W
• EP-24V-72W
• EP-54V-72W
Modular DC Power Supply with UPS and PoE
Protect your WISP site against power loss with the EdgePower EP-24V-72W or EP-54V-72W, a convenient UPS device with dual PoE output ports. You can receive alerts in the event of a power outage, and the EP-24V-72W or EP-54V-72W offers a 12V lead acid battery input (optional) for redundancy if the AC input fails over.
EdgePower 24V
• 24 VDC Output
• Dual 24 VDC Passive PoE Output
• AC Input
• Optional 12V Battery Input
Management Flexibility
Local Web UI
The EdgePower Configuration Interface allows you to easily configure and monitor PSU features.
Ping Watchdog sets the EdgePower to continuously ping an IP address you define. If it is unable to ping, then the EdgePower will automatically reboot.
Remote Management
The EdgePower may be connected to the LAN for remote monitoring and configuration.
Use the UNMS (Ubiquiti® Network Management System) for remote management. You can also use SNMP to monitor the EdgePower for issues that warrant attention.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Dimensions | 192 x 43.7 x 115 mm |
| Weight | 650 g (1.43 lb) |
| Interfaces Networking Management |
(2) 10/100 Mbps RJ45 Ports Ethernet In-Band |
| PoE Output | (2) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| DC Output | 24V, 3A |
| Power Method AC Input Battery Input |
100-240VAC, 50-60 Hz, Universal Input DC Terminal Block |
| Power Supply AC Input Battery Input |
AC/DC 72W 12VDC Lead Acid Battery* (* Battery not included) |
| Max Power Consumption System Output |
2W 72W |
| LEDs System RJ45 Data Ports |
Status PoE; Link/Activity |
| ESD/EMP Protection | Air: ± 12 kV, Contact: ± 12 kV |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
