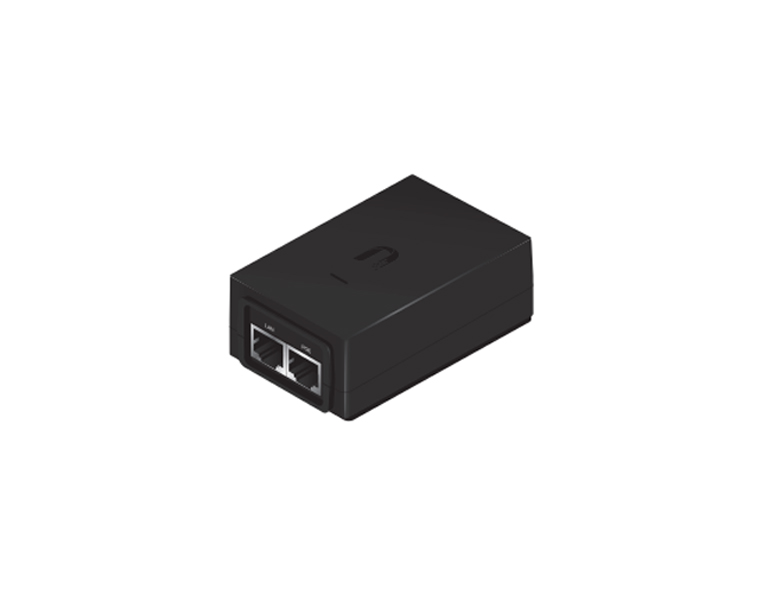

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Protect / airVision®
• UniFi LED
• UFiber
* Check product specifications to verify PoE compatibility
Ubiquiti PoE Adapter Compatibility with the airGateway™
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network.
The airGateway plugs into any of these PoE Adapters:
Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.
Potential for ESD
Protection Against ESD
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Specifications | |
Dimensions | 88 x 57 x 33 mm |
Weight | 135.5 g |
Output Voltage | 48VDC @ 0.5A |
LAN Activity Indicator | No |
Gigabit LAN Port | No |
Remote Reset Capability | No |
Reset Button | No |
Input Voltage | 100-240VAC @ 50/60Hz |
Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
Efficiency | 80+% |
Output Ripple | 1% Max. |
Switching Frequency | 65 kHz |
Line Regulation | ≤ 3% |
Load Regulation | ≤ 5% |
2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
Operating Temperature | 0 to 40°C |
Storage Temperature | -30 to 70°C |
Operating Humidity | 35 to 95% Noncondensing |
AC Connector | IEC-320 C6 |
Data IN / POE | RJ45 Shielded Socket |
Surge Protection | Difference and Common Mode |
Clamping Protection | 11V Data, 60V Power |
Max. Surge Discharge | 1500A (8/20 µs) Power |
Peak Pulse Current | 36A (10/1000 µs) Data |
Certifications | CE, FCC, IC, UL |
