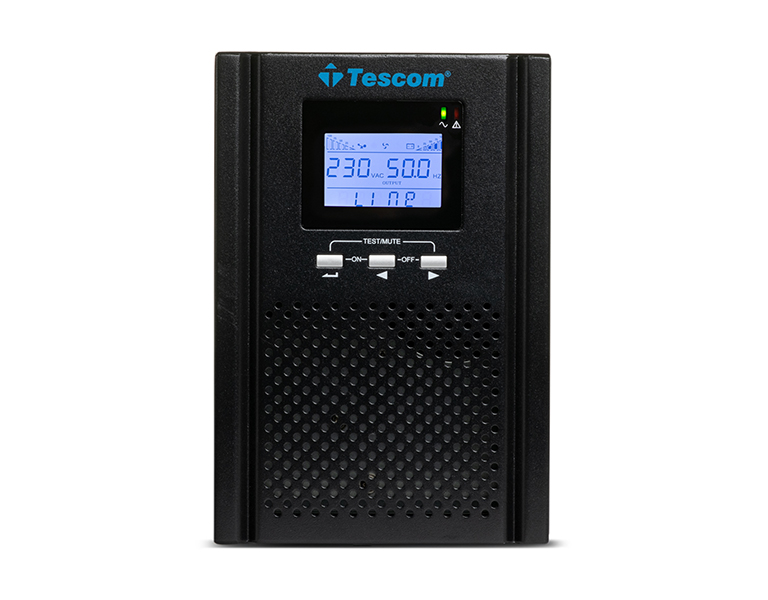

High efficiency single-phase ON-LINE UPS with zero switching time, DSP (Digital Signal Processors), dual conversion technology inverter and output power factor pf = 0.9. NEOLINE PRO offers excellent protection on devices and small networks, eliminating interruptions and interruptions in the power network. They can be used both in home applications, for the support of devices and systems such as alarms, cameras, electrical blinds, boilers, etc. and in professional for the support of production machines, decorators (servers), small computer network, communication equipment etc. They have an easy-to-use screen for easy control and adjustment of UPS functions and an advanced battery management system (ABM) for fast charging and extending their life.

Features:
• High frequency double conversion technology
• DSP (Digital Signal Processors) control technology
• Active Power Factor Correction (APFC), input power factor up to 0.99
• Output power factor pf = 0.9
• Wide input voltage range (110 V ~ 300 Vac) and frequency range (40 ~ 70 Hz)
• Auto sensing frequency 50 /60 Hz frequency conversion
• Cold Start
• Effective software and hardware protection
• Rear ventilation design and variable speed fan
• Quick and stable charging, 90% capacity restored in 4 h (standard model UPS)
• Linear derating in low voltage input reducing battery discharging times
• Settable delayed start when power is restored
• Advanced Battery Management (ABM)
• Multiple functions adjustable via LCD: output voltage, EOD, automatic start, bypass function, ECO function and frequency conversion function
• Multi-platform communications: RS232 (standard), USB / RS485 / SNMP / dry contacts (optional)
• Optional USB, RS485 card, AS400 dry contacts, SNMP card, SMS alarms, EPO function and 12 A charger (2/3 kVA only)

Warranties - Returns:
Money Return:	Repair - Replacement^*:
20 days	24 months
^*Batteries are accompanied by a 12-month warranty

Specifications:
Capacity	3 KVA / 2700 W
Input
Rated voltage	208 V / 220 V / 230 V / 240 Vac
Voltage range	110 ~ 176 Vac (linear derating between 50% and 100% load ); 176 ~ 280 Vac (no derating); 280 ~ 300 Vac (derating 50%)
Frequency	40 ~ 70 Hz (auto-sense)
Power factor	≥ 0.99
Bypass voltage range	-25% ~ +15% (settable)
Output
Voltage	208 V / 220 V / 230 V / 240 Vac (settable via LCD)
Voltage regulation	± 1%
Frequency	45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range); 50 / 60 Hz ± 0.1 Hz (battery mode
Waveform	Sinusoidal
Crest factor	3:01
Harmonic distortion	≤ 2% (linear load); ≤ 5% (non-linear load)
Transfer time	Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 4 ms (typical)
Overload capability	105% ~ 125%: transfer to bypass in 1 min; 125% ~ 150%: transfer to bypass in 30 s; > 150%: transfer to bypass in 300 ms
Efficiency
Mains mode	≥ 92%
Battery mode	≥ 87%
ECO mode	≥ 97%
Batteries
DC voltage	72 V
Inbuilt battery	6 x 12v 9Ah
Charging current (max.)	1:00 AM
Recharge time	8 h
ALARMS	On Utility failure / Low battery / Overload / UPS fault
Communications
RS232 (standard) / USB (optional)	Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / Windows® 7 / 8 / 10
SNMP (optional)	Power management from SNMP manager and web browser
Other Specs
Outlets	4 Schuko
Operating temperature	0 ~ 40°C
Relative Humidity	0 ~ 95% (non-condensing)
Noise level	≤ 50 dB (1m)
Dimensions (W×D×H) (mm)	191 x 464 x 335
Packaged dimensions (W×D×H) (mm)	320 x 573 x 471
Net weight (kg)	32
Gross weight (kg)	34
