Intelligent single-phase ON-LINE UPS with full digital control, zero switching time, clear sine output voltage, high efficiency with Power Factor 1. They do not require electrical installation and enable battery expansion for greater autonomy thanks to their enhanced charger. They feature Rack / Tower support and can protect professional and lightweight industrial applications.

Features:
• True double-conversion technology
• High flexibility with Rack or Tower mounting
• Output power factor 1
• Output voltage regulation < 1%
• Higher output crest ratio 3:1
• 50Hz/60Hz frequency converter mode
• Programmable power management outlets
• Emergency power off function (EPO)
• Hot swappable battery design
• ECO mode for energy saving
• Provides over voltage cutt-off protection and surge immunity by MOV for ongoing equipment protection
• High power factor charger up to 1000W capacity with very low ripple current when charging battery
• Low input THDi to reduce power system pollution
• Adjustable charging current via LCD panel
• Smart battery charger design to optimize battery performance
• Generator compatible
• Cold Start
• Auto Restart

Warranties - Returns:
Money Return:	Repair - Replacement^*:
20 days	24 months
^*Batteries are accompanied by a 12-month warranty

Specifications:
Phase	Single phase with ground
Capacity	1000 VA / 1000 W
Input
Nominal Voltage	200/208/220/230/240 VAC
Voltage Range	110-300 VAC ± 5% @ 50% load 160-300 VAC ± 5% @ 100% load
Frequency Range	40Hz ~ 70Hz
Harmonic Distortion(THDi)	≤ 5% @ nominal input voltage
Power Factor	≥ 0.99 @ nominal voltage (100% load)
Output
Output Voltage	200/208/220/230/240 VAC
AC Voltage Regulation	± 1%
Frequency Range (Synchronized Range)	57 ~ 63 Hz or 47 ~ 53 Hz
Frequency Range (Batt. Mode)	50 Hz ± 0.1Hz or 60Hz ± 0.1Hz
Current Crest Ratio	3:1 (max.)
Harmonic Distortion	≤ 2 % THD (Linear Load); ≤ 4 % THD (Non-linear load)
Transfer Time	AC mode to Battery mode : Zero Inverter to Bypass : 4 ms (Typical)
Waveform (Batt. Mode)	Pure Sinewave
Overload AC mode	110-130% : 5 min / 130-140%: 30 sec / >140% : 1.5 sec to 100ms

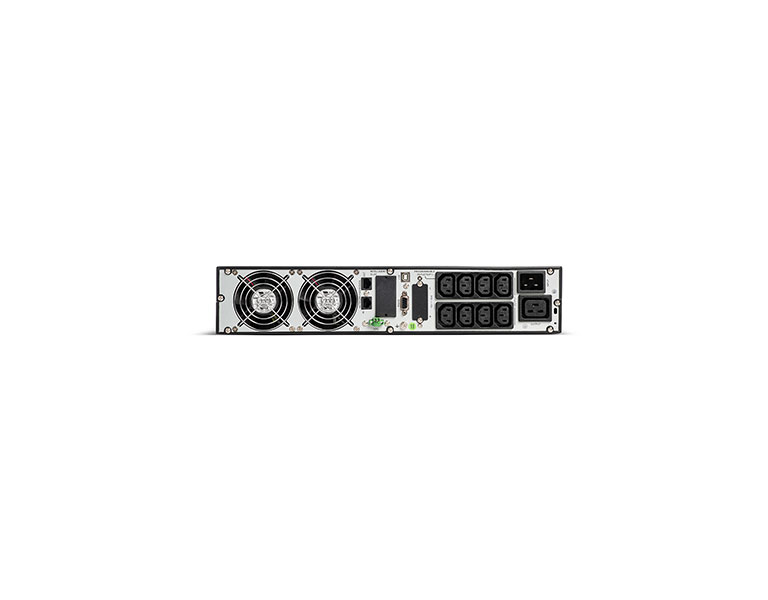

Outlets	8 x IEC 320 C13
Efficiency
AC Mode	≥ 90% @ full charged battery
ECO Mode	≥ 96% @ full charged battery
Battery Mode	≥ 88%
Battery
Battery Type (VRLA)	12 V / 9 AH
Numbers	2
Typical Recharge Time	3 hours recover to 95% capacity for internal battery@ 2A charging current
Charging Current	Default 2A, max. 12A adjustable
Charging Voltage	27.4 VDC ± 1%
Physical
Dimension, DxWxH (mm)	410 x 438 x 88
Net Weight (without battery)	6.6 kgs
Net Weight (w/built-int battery)	11.6 kgs
Environment
Humidity	5-95 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 50dBA @ 1 Meter
Altitude	10% de-rating for over 1000m (The altitude should not exceed 3000m)
Management
Smart RS-232/USB & Software	Supports Windows® 2000/2003/ XP/ Vista/ 2008/ 7/ 8, Linux and MAC
Optional SNMP	Power management from SNMP manager and web browser
Standard
EMC/safety	EMC EN62040-2 C2 / EN 62040 - 1 / EN 62040 – 3 / RoHS 2
