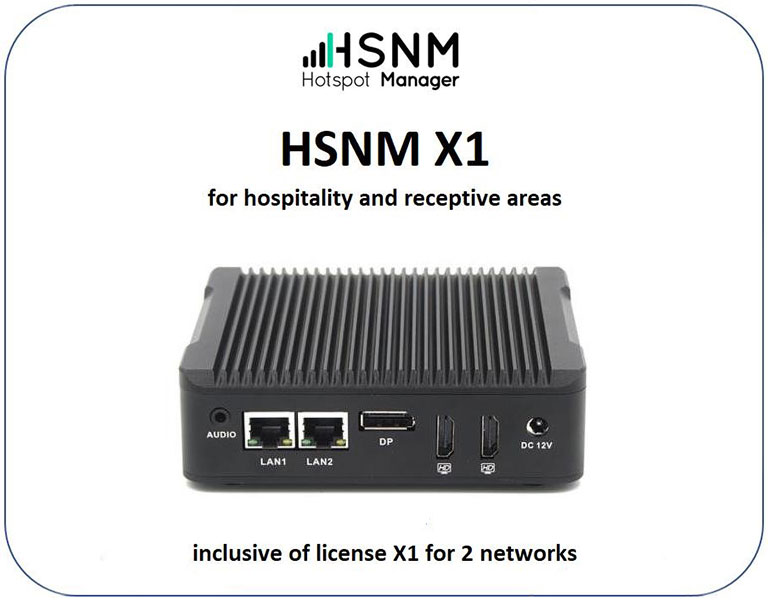

HSNM X1 FOR HOSPITALITY AND RECEPTIVE AREAS

Product Code:
HSNM-X1
Manufacturer Hs-network
Sales price: 1230,00 €(Includes 24% VAT)
Sales price without TAX:991,94 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
HSNM X1 FOR HOSPITALITY AND RECEPTIVE AREAS

The listed price of this edition refers to the purchase of the product!

What is HSNM?

HS Network Manager is the award winning accounting and billing solution for hotspot and PPPoE requests. Not only a carrier class all-in-one appliance but a complete hotspot network management to make the service even more amazing in the eyes of end users.

HSNM is a professional solution that provides the functionalities extension of the existing network structures. It is the right solution made suitable for all, wide and small, WiFi needs. Smart hotspot solution for value-added services at your fingertips. Our solution is out-of-the-box and it can be easily set up within your existing hotspot network.
The HSNM Hardware solution is a complete hardware and software package ready for final customization and use.

An all-in-one HSNM hardware with subsystem 2.0
The hardware is provided with HSNM license X1 that can manage 2 networks. You can add the AD module of any level, at a standard costs*. The HSNM X1 is not accompanied by an annual maintenance contract, which is deemed necessary and must be purchased separately *.
*Find out from the sales department about the relevant standard costs.

Main Advantages

  • Low cost solution
  • Ready-to-use hardware solution
  • Network infrastructure is not required
  • Ability to install on or off (remote) hotspot location

Properties - Features

  • Full compatibility and collaboration with existing Access Points and installation on Mikrotik devices with RouterOS version 6 and above
  • Build Hotspot - Captive portal with User Authentication and free access
  • Radius Server for PPPoE authentication (Not combined with Hotspot)
  • Fully responsive, responsive and compatible with all devices, mobile, tablets, computers and all Windows, iOS, Android) with dynamic features
  • Construction of Hotspot - Captive portal with User Authentication and charge - payment for access
  • Social Login that supports Facebook, Linkedin, Twitter
  • Multiple levels of platform management as needed
  • Full and detailed statistics on how to use the platform at all management levels to make it available to anyone interested for commercial, administrative or security tracking
  • Ability to send and receive SMS messages to and from the platform using the appropriate infrastructure

To view the detailed product presentation, please visit hsnetworkmanager.gr.
To view the live product test, click here.

HS Network Manager target

The reliable solution for successful system integration projects -hotels, camp sites, hospitals, trains, ships, marinas, theme parks, museums, universities, libraries, companies, convention centers, municipalities.

Specifications
Basic information
CPU Intel® Celeron
TDP 6W
Memory 1 x DDR3L SO-DIMM Socket (4GB RAM)
Chipset Braswell SOC Single Chipset
Graphics Intel Graphics Media Accelerator
LAN 2 x Realtek RTL8111E Gigabit LAN
Input/output Ports
Switch 1* Power On/Off Switch
USB 2* USB
Power 1* 12V DC In
Display 2* HDMI Port
Audio 1* Speak out and 1* Mic in
Lan 2* RJ 45 Lan Port
Storage
mSATA 240 GB
Network
Cards 2
Mechanical
Case Material Aluminum Alloy
Dimension PC size 136*126*43mm
Package size 305*205*75mm
Weight Net 0.75kg, Gross 1.55kg
Mounting VESA Mounting Bracket
Lock Kensington Lock holes
Others
Certifications CE, FC, RoHS
Power 12V 3A External Power Adapter
Temperature -10°C~55°C
Humidity 0%-95% relative humidity
Cooling Mode Fanless
Package Content
Standard 1*Mini PC, 1*Power Adapter
License
HSNM X1 License to manage 2 networks. It is not upgradable to higher license levels
MikroTik Router OS license level 1 (demo), upgradable to higher licence levels
