Part 1) IRS 907/E890 Thermal Printer
This device doesn't support Web Interface. Also, it has only USB and Ethernet ports.
• Print speed 300mm/s
• Automatic paper cutting
• Barcode printing support
Part 2) YP-20 Ready Voucher Service - System Based License
Ready Voucher is a simple but extremely handy and functional Windows software that can work with MikroTik Routers that run a Hotspot with Captive Portal to create users who belong to specific Hotspot profiles and to print Vouchers or cards with user access information to both A4 and Thermal printers.
Ready Voucher uses MikroTik API for both-way communication with the router and is fully compatible with the current versions of RouterOS.

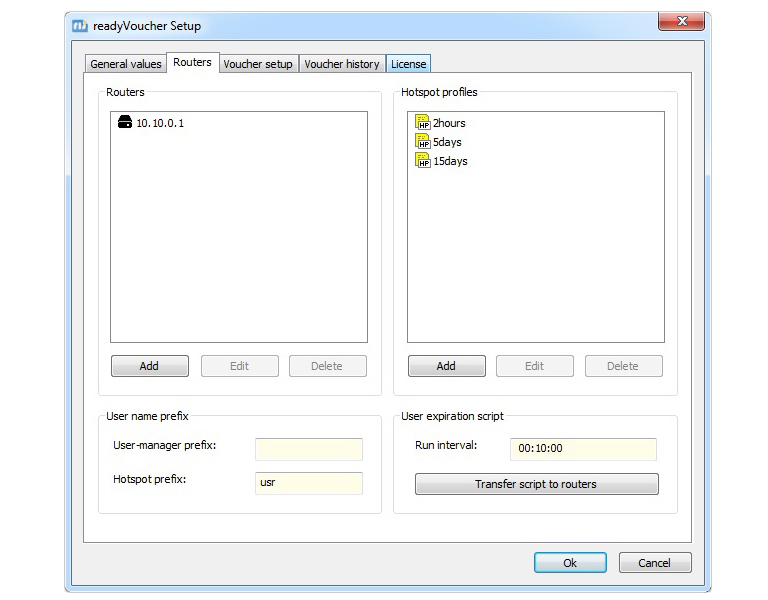

It can work with the router to create Hotspot users both directly in the Hotspot user database and with the User Manager if of course this service runs on the Router.
It has the ability to print graphics cards in Printers Inkjet or Laser but also in common thermal POS printers. This feature is achieved because we print through our Windows Driver of our printer.
It is fully compatible with the following versions of Microsoft Windows: XP, Vista, 7, 8, 8.1 and 10 both 32 and 64 bit.

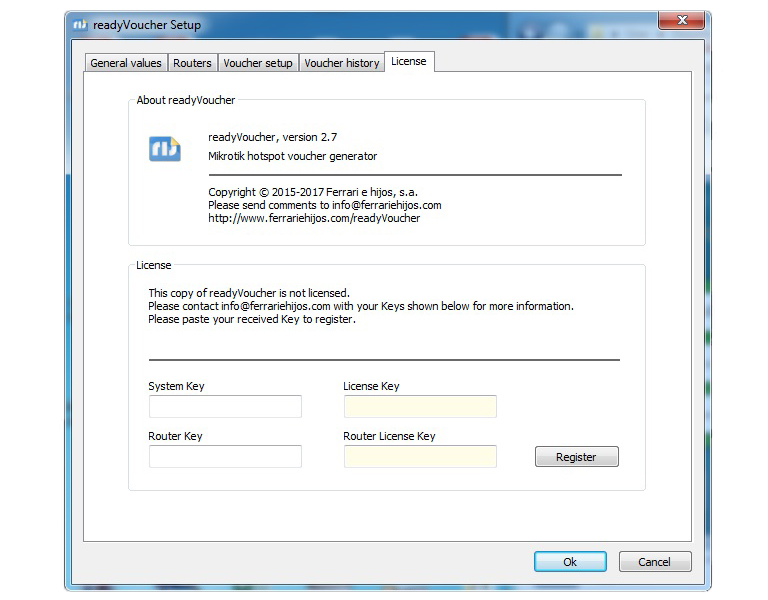

System Based License. This type of license authorizes a computer to access a router and is a low cost option. It should be noted that if the operating system is reinstalled on the computer the license is lost!
High lights of the application:
• Friendly appearance and extremely simple use for the end user.
• Application access codes independent of Router access details and the ability of many different users.
• Compatible with RouterOS from 4.X to 6.X

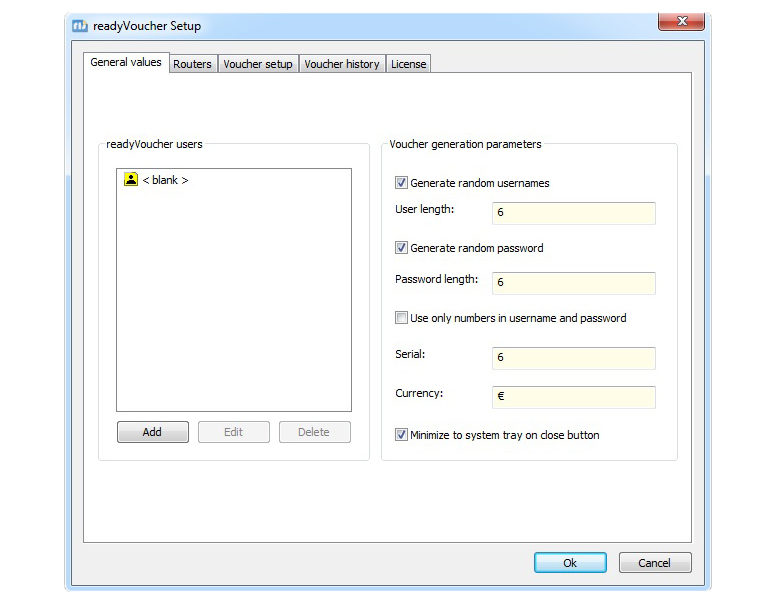

• djustable User prefix, price currency and length of username and password.

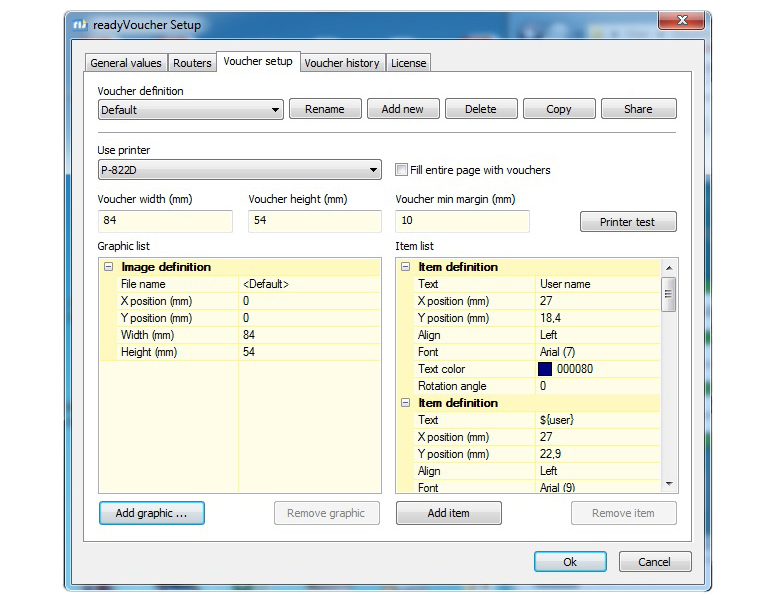

• Fully customizable Voucher printing
• Ability to match a different Voucher design per User Profile.
• Extremely affordable cost.
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
IRS 907/E890 Thermal Printer | |
Specifications | |
Printing Method | Thermal Line |
Printing Speed | 220mm/s |
Resolution | 8 dots/mm, 576 dots/line |
Effective Printing Width | 72mm |
Character Set | ASCII, GB18030(Chinese),BIG5 |
Print Font | ANK: 12 x24 |
Character per Line | 42/48 |
Paper Type | Thermal paper |
Paper Width | 79.5± 0.5mm |
Paper Roll Diameter | Max: 80.0mm |
Roll Core Inner Diameter | 13mm(min.) |
Paper Thickness | 0.06~0.08mm |
Paper Supply Method | Drop-in easy paper loading |
MCBF | 60 million lines |
TPH | 100km |
Barcode | 1D: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128 2D: PDF417, QR CODE, DATAMATRIX |
Emulation | ESC/POS |
Driver | Windows/Linux/OPOS |
Cash Drawer Control | DC24V,1A 6PIN RJ-11 Socket |
Interface | USB+Ethernet |
Power Supply (Adapter) | AC100 ~240V ± 10%(include) DC 24V, 1.5A |
Auto cutter Type | Guillotine |
Auto cutter Life | 1,000,000 cuts |
Cutting Method | Partial cut |
Net Weight | 1.3 kg |
Gross Weight | 2.6 kg |
Printer Dimension (WxLxH) | 185 x 150 x 123 mm |
