Grandstream GDS3702 HD Audio IP Intercom System
Product Code:
GDS3702
Manufacturer Grandstream
Sales price:
125,00 €(Includes 24% VAT)
Sales price without TAX:100,81 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews

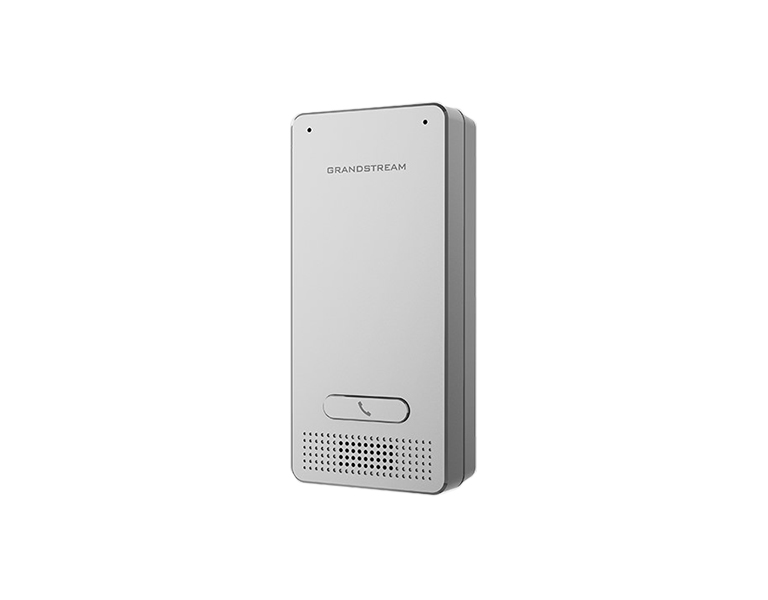

Grandstream GDS3702 HD Audio IP Intercom System
The GDS3702 is an HD Audio IP Intercom System to offer remote facility access control for buildings of all sizes. This device includes a built-in microphone and speaker to support intercom functionality, supports integration with electric locks for locking and unlocking doors, and offers alarm-in and alarm out support for integration with existing security systems. The GDS3702 works with Grandstream’s free management software, GDS Manager. It features SIP/VoIP technology with 2-way HD audio, IP66 level weatherproof casing, and is vandal resistant. The combination of the GDS3702, Grandstream’s IP Phones, Wave mobile app, and other 3rd party IP devices provide a complete end-to-end solution for access control, and intercom needs.
Features:
• HD audio options with up to 1.5m of audio input and 3m of audio output
• Supports SIP calls to IP phones to facilitate communication
• Built with a metal casing to make it weatherproof and vandal resistant
• 2 Relay for Electric Lock and Alarm out, 2 Alarm In for Exit button and door sensor
• Integrated PoE to power the device and provide a network connection
• Built-in microphone and speaker offers voice options and intercom functionality
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Network | 10M/100M Auto-sensing |
| PoE | PoE IEEE 802.3af Class3 |
| Supply Voltage | 12VDC /1A (AC power adapter not included) |
| SIP/VoIP Support | Yes, broad interoperability |
| Voice Codecs | G.711μ/a, G.722, DTMF(RFC2833, SIP INFO), AEC, ANC |
| Audio Input | Built-in microphones up to 1.5m |
| Audio Output | HD loudspeaker 2W, up to 3m |
| Input | 2 Optocoupler Input, Vin<15V, for door sensor or other low voltage device |
| Output | 2 Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other relative high voltage device |
| Waterproof Certification | IP66 (EN60529) |
| Vandal Resistance | IK10 (IEC62262) |
| Temperature and Humidity | Operation: -30°C to 60°C; Storage: -35°C to 60°C Humidity: 10% to 90% Non-condensing |
| Mounting | On-Wall, In-Wall (Mount Kit required, Sold separately) |
| Dimension (HxWxD) and Weight | On-Wall: 173mm x 80mm x 36mm; In-Wall: 217mm x 120mm x 11.6mm; Unit Weight: 672 gram |
| Compliance | CE, FCC, IC, RCM, UKCA |
