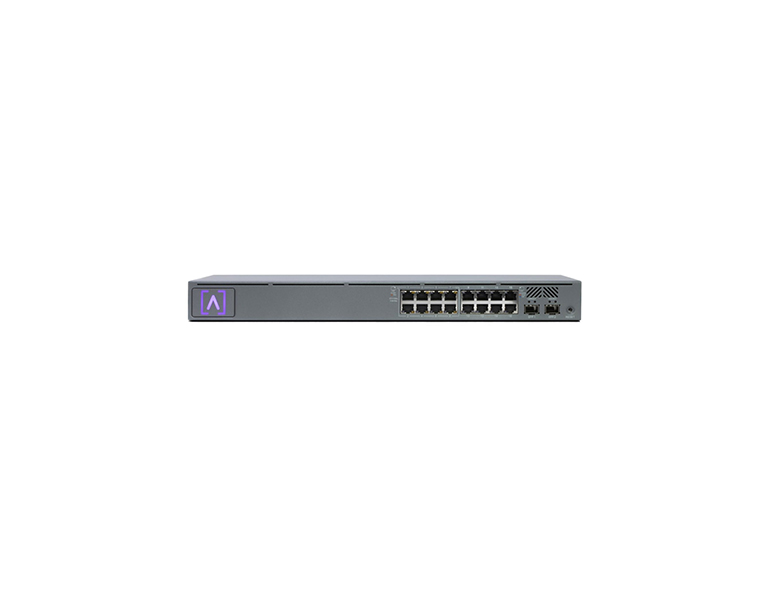

The S16‑PoE is a rackmountable switch with sixteen 10/100/1000 ports, eight of which support PoE+. The S16‑PoE includes two SFP ports.

Power Over Ethernet
The Alta Labs switches feature PoE+ connectivity with a number of ports capable of providing up to 30 Watts of power per port. The switches support the 802.3at PoE+ standard and are backwards compatible with the 802.3af PoE standard. The S16-PoE offers eight PoE+ ports with a PoE budget of up to 120 Watts. Power your Alta Labs Access Points and other devices that support 802.3at or 802.3af standards.

Bluetooth Setup
The Alta Labs switches include Bluetooth functionality allowing for seamless setup using the Alta Labs mobile app.

Mobile App
Monitor and manage your networks from the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser. Sign up for an Alta Labs account using just your name, email, and password or sign in using your Google or Apple account.

SFP/SFP+ High Performance Connectivity
The S16‑PoE switch provides two SFP ports for fiber or copper connections up to 1 Gbps.

Scalable Cloud-Based Management
Alta Labs provides an intuitive and easy-to-use cloud‑based management interface for Alta Labs access points and switches. Designed for optimum scalability using a high-availability architecture for the ultimate in convenience and worldwide accessibility. Built on a worldwide content delivery network to optimize response and latency, our global cloud infrastructure ensures geographically optimized connectivity through our redundant network. Deploy and manage multiple sites quickly and easily. Add, delete, or rename sites instantly. Toggle between sites from a site selection drop‑down. Each site contains its own data set.

Features:
• Power Over Ethernet
• SFP/SFP+ High Performance Connectivity
• Bluetooth Setup
• Mobile App
• Scalable Cloud-Based Management
• VLAN Stacking
• Egress and Ingress Rate Limiting
• IGMP Snooping
• 802.1X Authentication*
• Network Loop Detection*
• Customizable Dashboard
• Status Snapshots
• Device Cards
• Site Manager
• Mounting Flexibility
• More Features to Come with Automatic Firmware Updates

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Mechanical
Dimensions	44 x 254 x 441.5 mm
Weight	3.6 kg
Material Type	SGCC
Material Finish	Powder coat - Matte
Color	Metallic gray
Ports
Interface ports	(16) 10/100/1000 Mbps
SFP/SFP+	(2) SFP
Switching Capacity	36 Gbps
Non-blocking Throughput	18 Gbps
Forwarding Rate	26.8 Gbps
PoE Budget/Max	120 Watts
PoE Supply	30 Watts per port
Per Port PoE	(8) 802.3at PoE+
Non-PoE Ports	(10)
Leds
PoE	Orange
Network	Orange: 10/100 Mbps, Blue: 1000Mbps
SFP	Blue: Link/Activity (1000 Mbps)
Hardware
Packet Buffer	4.1 Mbit
Mac Table Size	8 K
Energy Efficient Ethernet	Yes
Management	Factory reset button
Band	2.4 GHz
Bluetooth Version	BLE
Total Power	7 dBm EIRP
Gain	2 dBi
Power
Max Power Consumption w/o PoE	23 Watts
Max Power Consumption Full PoE	143 Watts
Output	PoE+, 54VDC, 0.6A Max
Power Supply	Universal AC, 100 - 240VAC 50-60Hz Internal
RJ45 Port Surge Protection	12kV for ESD - contact, 25kV for ESD - Air
Environmental
Mounting	Rackmount, Wallmount
Operating Temperature	-5 to 50° C
Operating Humidity	10 to 90% Noncondensing
EMI Rating	EMI Class-A with 3dB margin
Cooling Fan	No (Fanless cooling)
Certifications	CE, FCC, IC
