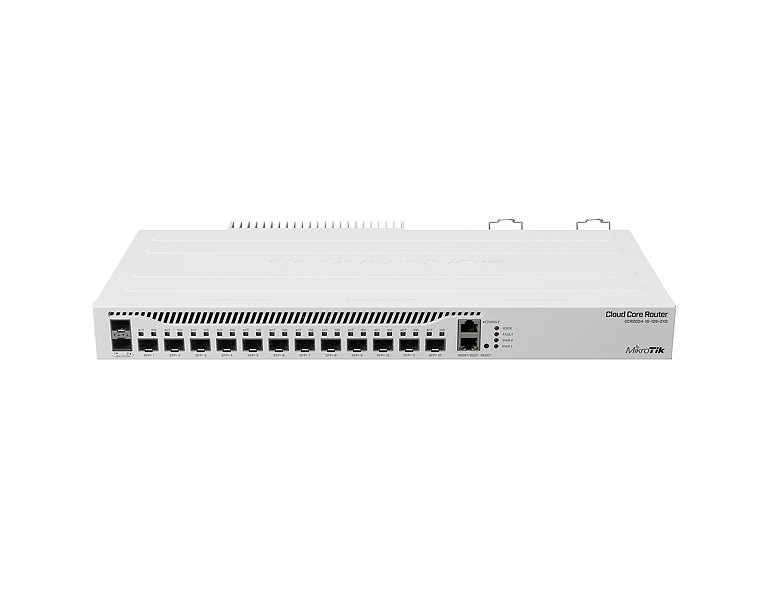

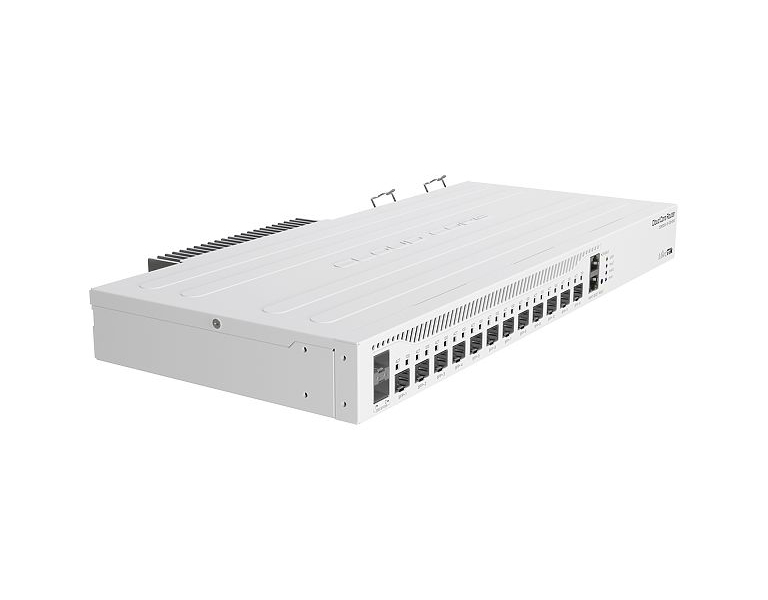

The "Improvise. Adapt. Overcome." mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.
CCR2004-1G-12S+2XS is Mikrotik's router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.
Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations!
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Specifications | |
Product code | CCR2004-1G-12S+2XS |
Architecture | ARM 64bit |
CPU | AL32400 |
CPU core count | 4 |
CPU nominal frequency | 1.7 GHz |
Dimensions | 443 x 224 x 44 mm |

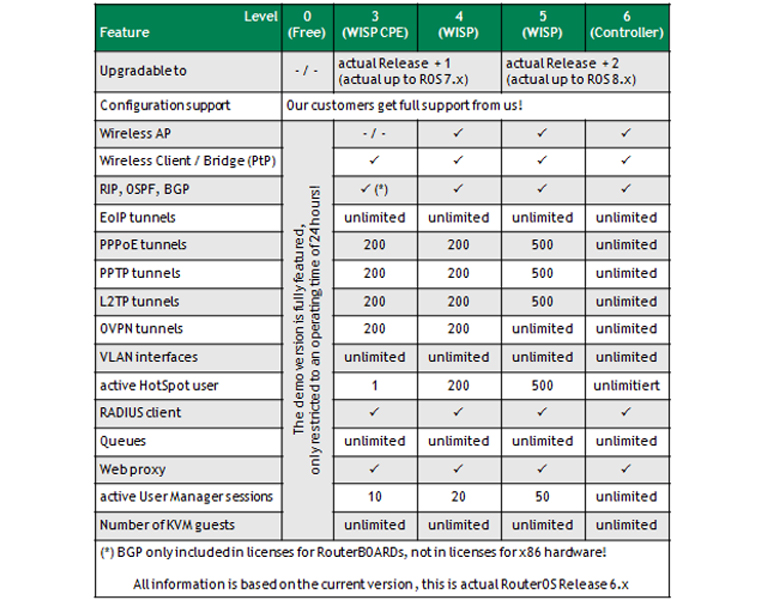

License level | 6 |
Operating System | RouterOS v7 |
Size of RAM | 4 GB |
Storage size | 128 MB |
Storage type | NAND |
Tested ambient temperature | -20°C to 60°C |
Powering | |

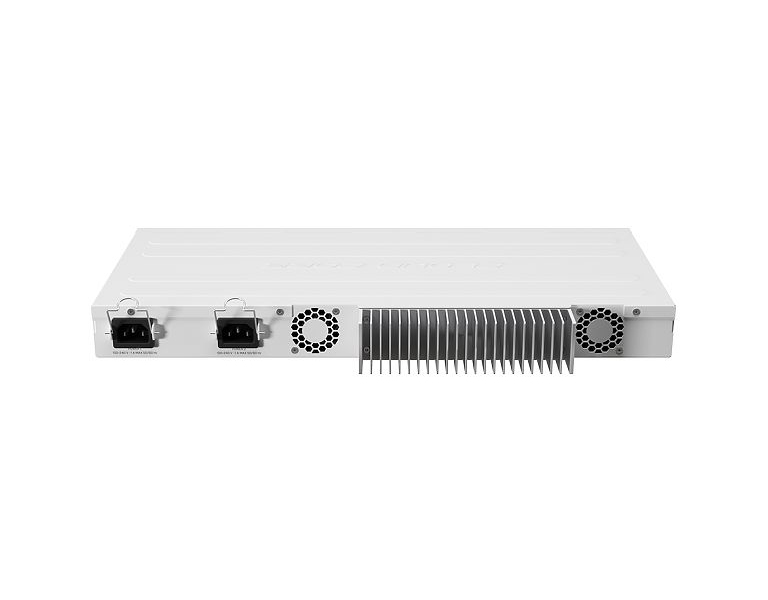

Number of AC inputs | 2 |
AC input range | 100-240 |
Max power consumption | 49 W |
Max power consumption without attachments | 32 W |
Cooling type
|
2 fans |
Ethernet | |
10/100/1000 Ethernet ports | 1 |
Fiber | |
SFP+ ports | 12 |
Number of 25G SFP28 ports | 2 |
Peripherals | |
Serial port | RJ45 |
Other | |
CPU temperature monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals | |
Certification | CE/RED, EAC, ROHS |
Package Contains | |
Included Parts | • 2x IEC cords • Screw and feet kit(K10) • Rackmount bracket white |
